PanelSeT SM Parts

Schneider Electric

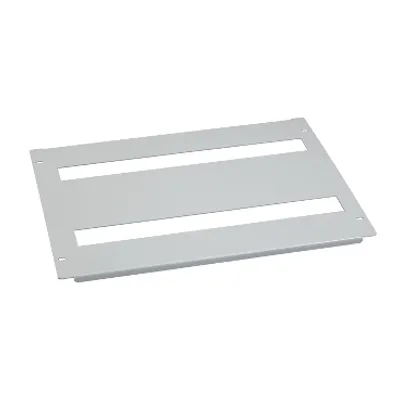

NSYMUC158

Screwed-on cut-out cover plate, PanelSeT SFN, SF, SM, for electrical enclosure W800mm, 1 cut out, H150mm

Schneider Electric

NSYMPCH456

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W600mm steel;H450mm

Schneider Electric

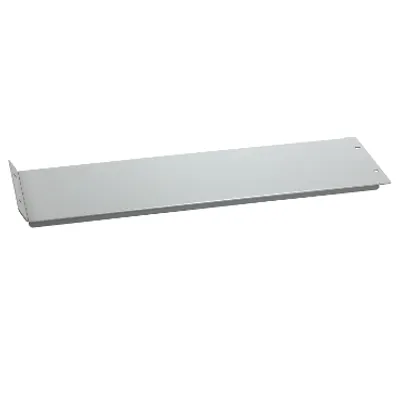

NSYMPCH308

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm steel;H300mm

Schneider Electric

NSYMPCH306

Hinged plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm steel, H300mm

Schneider Electric

NSYMPCH208

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm steel;H200mm

Schneider Electric

NSYMPCH156

Hinged plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W600mm steel;H150mm

Schneider Electric

NSYMPC458

Screwed-on plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm steel;H450mm

Schneider Electric

NSYMPC456

Screwed-on plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W600mm steel;H450mm

Schneider Electric

NSYMPC408

Screwed-on plain cover plate;PanelSeT SFN;PanelSeT SF;PanelSeT SM;for electrical enclosure W800mm steel;H400mm

Schneider Electric

NSYMPC406

Screwed-on plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm steel, H400mm

Schneider Electric

NSYMPC308

Screwed-on plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W800mm steel, H300mm

Schneider Electric

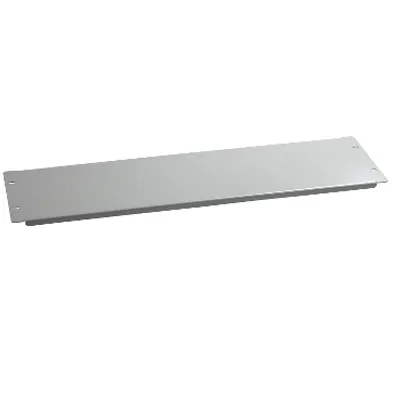

NSYMPC156

Screwed-on plain cover plate, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm steel, H150mm

Schneider Electric

NSYMFSC60D

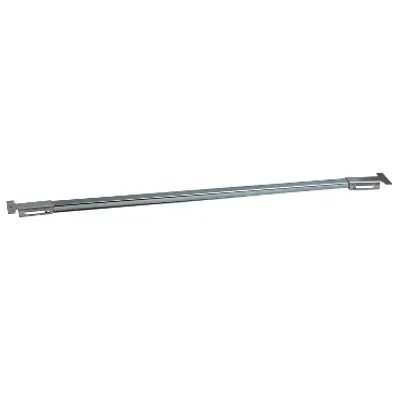

Depth-adjustable rail with supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm , steel

Schneider Electric

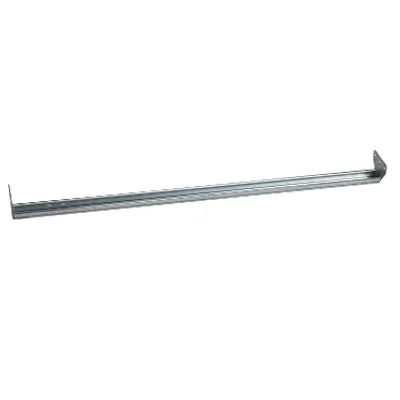

NSYMFSC60

Fixed rail with supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm , steel

Schneider Electric

NSYMCDFIX

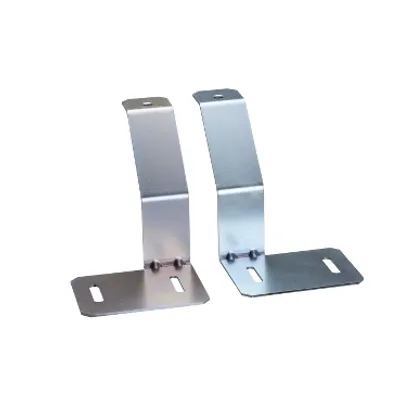

Cable duct fixing supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, set of 6

Schneider Electric

NSYATP72M

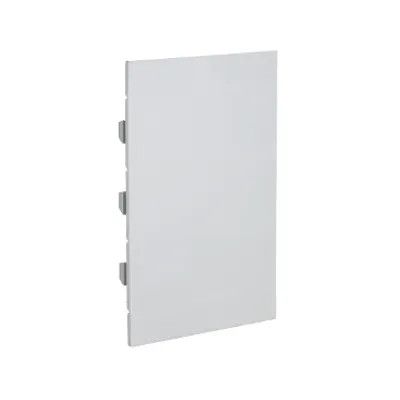

Set of 25 PanelSeT SF/SM blanking cover - for cut out cover plate

Schneider Electric

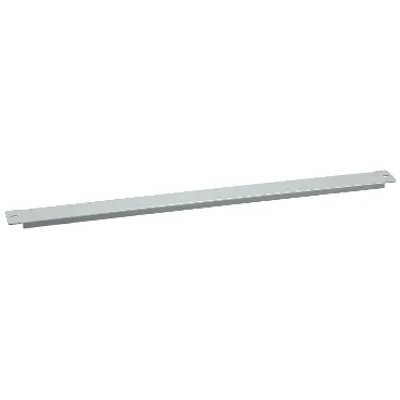

NSYADC16

Adjustment cover plates, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm , steel, H50mm

Schneider Electric

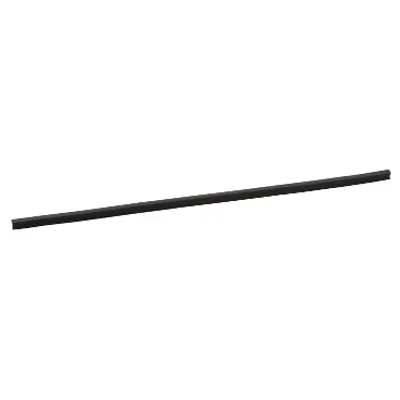

NSYCEJ

Foam entry gasket, PanelSeT SFN, PanelSeT SF, PanelSeT SM, expanded polyurethane

Schneider Electric

NSYCSH188

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1800 W800mm, 360 modules of 18mm

Schneider Electric

NSYCSH186

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1800 W600mm, 240 modules of 18mm

Schneider Electric

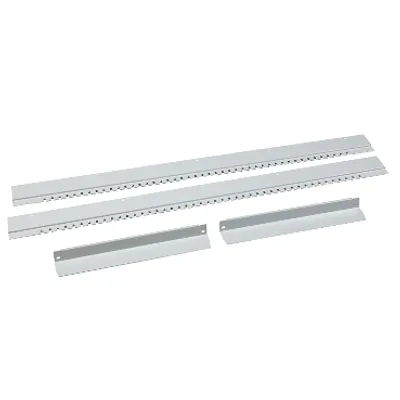

NSYCSH166

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1600 W600mm, 216 modules of 18mm

Schneider Electric

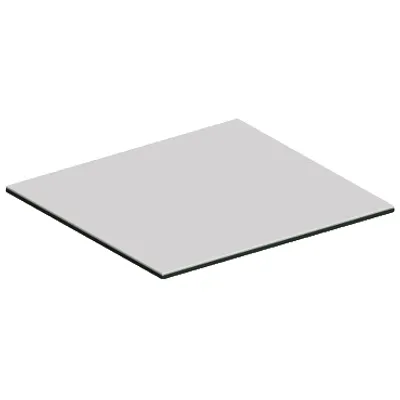

NSYSMEC86

PanelSeT SM plain cable gland plate - 800x600 mm

Schneider Electric

NSYSMEC83

PanelSeT SM plain cable gland plate - 800x300 mm

Schneider Electric

NSYSMEC104

PanelSeT SM plain cable gland plate - 1000x400 mm

Compare PanelSeT SM

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	Mounting location	Fixing mode	Height	Depth
NSYMUC158	Cover plate	On chassis coupling set	By screws	Nominal: 150 mm, Real: 149.5 mm	Real : 12 mm
NSYMPCH456	Cover plate	On chassis coupling set	By screws	Nominal: 450 mm, Real: 449.5 mm	Real : 12 mm
NSYMPCH308	Cover plate	On chassis coupling set	By screws	Nominal: 300 mm, Real: 299.5 mm	Real : 12 mm
NSYMPCH306	Cover plate	On chassis coupling set	By screws	Nominal: 300 mm, Real: 299.5 mm	Real : 12 mm
NSYMPCH208	Cover plate	On chassis coupling set	By screws	Nominal: 200 mm, Real: 199.5 mm	Real : 12 mm
NSYMPCH156	Cover plate	On chassis coupling set	By screws	Nominal: 150 mm, Real: 149.5 mm	Real : 12 mm
NSYMPC458	Cover plate	On chassis coupling set	By screws	Nominal: 450 mm, Real: 449.5 mm	Real : 12 mm
NSYMPC456	Cover plate	On chassis coupling set	By screws	Nominal: 450 mm, Real: 449.5 mm	Real : 12 mm
NSYMPC408	Cover plate	On chassis coupling set	By screws	Nominal: 400 mm, Real: 399.5 mm	Real : 12 mm
NSYMPC406	Cover plate	On chassis coupling set	By screws	Nominal: 400 mm, Real: 399.5 mm	Real : 12 mm
NSYMPC308	Cover plate	On chassis coupling set	By screws	Nominal: 300 mm, Real: 299.5 mm	Real : 12 mm
NSYMPC156	Cover plate	On chassis coupling set	By screws	Nominal: 150 mm, Real: 149.5 mm	Real : 12 mm
NSYMFSC60D	Din rail support	—	By screws	Real: 26 mm	Real : 495 mm
NSYMFSC60	Din rail support	—	By screws	Real: 50 mm	Real : 490 mm
NSYMCDFIX	Mounting support	—	By screws	Fixing center: 85 mm, 115 mm	91.5 mm, 145 mm
NSYATP72M	Blanking cover	On cover plates with cut-out	Clipped	—	—
NSYADC16	Cover plate	On chassis coupling set	By screws	49.5 mm, Nominal: 50 mm	—
NSYCEJ	Foam gasket	—	Adhesive	15 mm	25 mm
NSYCSH188	Coupling kit	Front of enclosure	By fixing element	Real: 1705 mm, Nominal: 1800 mm	Real : 100 mm
NSYCSH186	Coupling kit	Front of enclosure	By fixing element	Real: 1705 mm, Nominal: 1800 mm	Real : 100 mm
NSYCSH166	Coupling kit	Front of enclosure	By fixing element	Real: 1505 mm, Nominal: 1600 mm	Real : 100 mm
NSYSMEC86	Cable gland plate	Bottom, Top	—	20 mm	Nominal : 600 mm, Real : 550 mm
NSYSMEC83	Cable gland plate	Top, Bottom	—	20 mm	Nominal : 300 mm, Real : 550 mm
NSYSMEC104	Cable gland plate	Top, Bottom	—	20 mm	Nominal : 400 mm
