Schneider Electric NSYSPS5100SD
2 side panels for plinth. 500x100mm. Folded sheet steel
- MPN
- NSYSPS5100SD
- EAN
- 3606480163081
- Category
- PanelSet SD
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSPS5100SD?

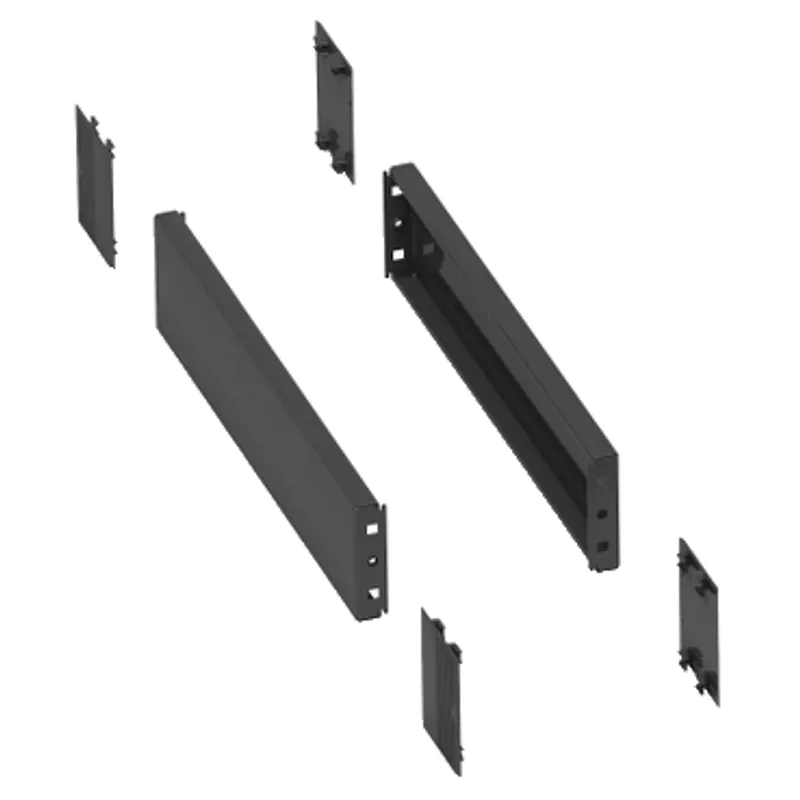

Plinth side panel to be used with PanelSeT SD enclosures The plinth side panel is to be used in multi-purpose applications The width is 500mm The height is 100mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT PanelSeT SD SD |
| Mounting support | Fixed to the corners |
| Fixing mode | By 2 screws |
| Material | Sheet steel |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | 500 mm |
| IP degree of protection | IP30 (complete plinth) |
| IK degree of protection | IK10 (resistance to external mechanical impacts) |
Packaging
| Package 1 | 1 PCE, 66.000 cm × 11.500 cm × 6.000 cm (L × W × H), 1.302 kg |
| Package 2 | 70 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 104.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPS5100SD: frequently asked questions
When can NSYSPS5100SD be shipped?
NSYSPS5100SD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPS5100SD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPS5100SD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS5100SD, subject to availability and destination.
