Schneider Electric NSYSPS4100

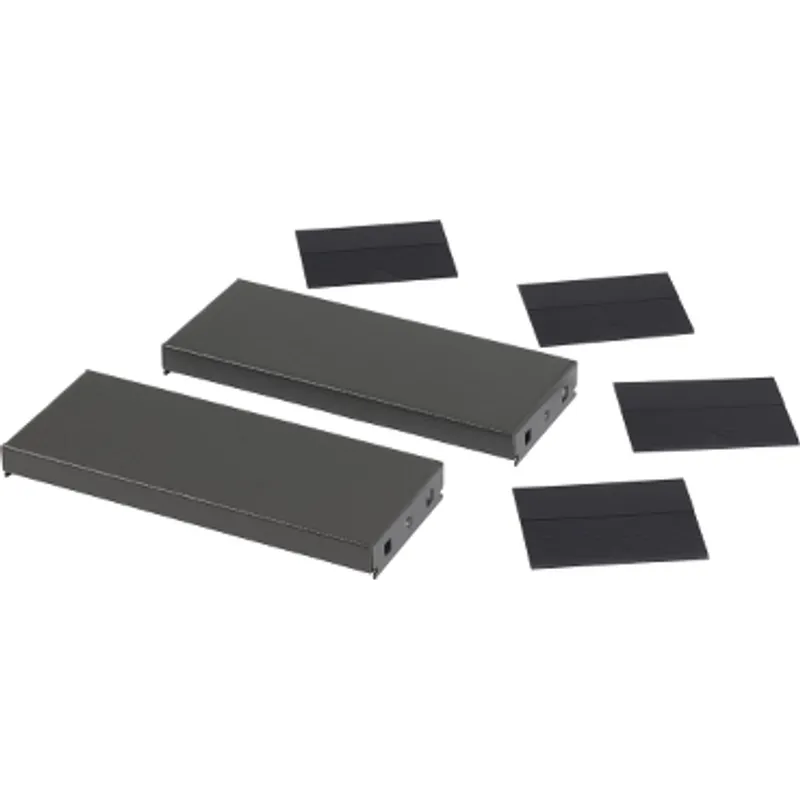

Side panels for the plinth, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure D400mm, set of 2, H100mm
- MPN
- NSYSPS4100
- EAN
- 3606485126616
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSPS4100?
Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 400 mm and its height is 100 mm. The set contains 4 corners covers, 2 side and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth side panel |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT SF, PanelSeT SM |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | Nominal: 400 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 25.500 cm × 11.500 cm × 6.000 cm (L × W × H), 1.048 kg |
| Package 2 | 600 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 639.800 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSPS4100: frequently asked questions
When can NSYSPS4100 be shipped?
NSYSPS4100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPS4100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPS4100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS4100, subject to availability and destination.
