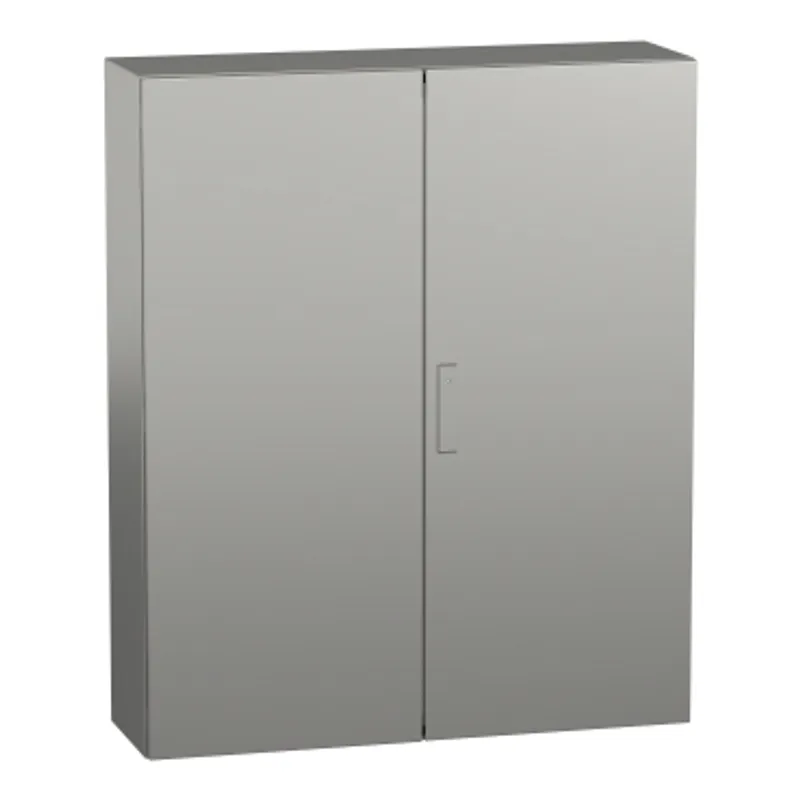

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L,double plain door, 1200x1000x300mm, IP55
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3X |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 51.6 kg |
Shipping & availability
When can NSYS3X121030H be shipped?
NSYS3X121030H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X121030H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X121030H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X121030H, subject to availability and destination.
Schneider Electric Wall mounted enclosure, PanelSeT S3X, stainless steel 316L,double plain door, 1200x1000x300mm, IP55, manufacturer part number NSYS3X121030H. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1200 mm |
| nominal width | 1000 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 2 door, 1 lock: door, 1 reinforcement frame drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed |
| Net weight | 51.6 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 32.000 cm |
| Package 1 Width | 101.000 cm |
| Package 1 Length | 122.000 cm |
| Package 1 Weight | 51.600 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 140.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 228.000 kg |
| Warranty | 18 months |
