Schneider Electric NSYS3X10830

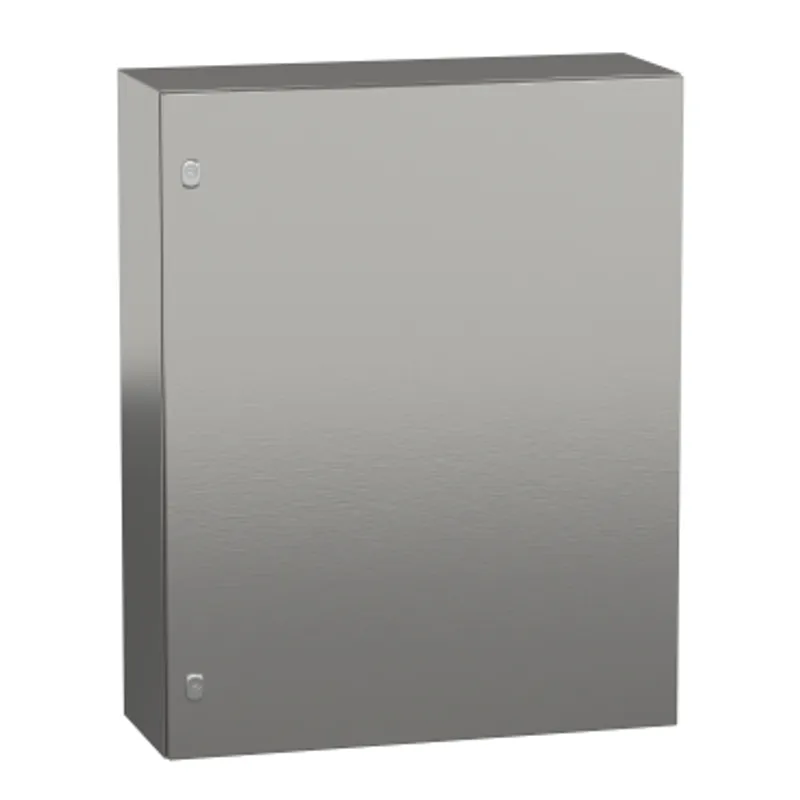

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 1000x800x300mm, IP66
- MPN
- NSYS3X10830
- EAN
- 3606480154966
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X10830?
Spacial S3X wall-mounting enclosure is designed for multi-purpose applications, with a nominal height, width and depth of 1000mm, 800mm and 300mm respectively This enclosure is made of stainless steel 304L, with a Scotch-Brite® brushed surface finish, and is resistant to corrosion The enclosure features a single piece body, cross-shaped structure with a gutter shaped front rail, and has a plain door with two lock points, a 3mm double-bar insert and hinges for easy access It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529) The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The lock and hinge are made of zamak and stainless steel respectively The net weight of the enclosure is 37,4kg It is certified by UL 508 type A and CAN/CSA 22 standards Enclosure Scotch-Brite® brushed finish.
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1000 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 reinforcement frame drilled: door, 1 door, 2 lock: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 37.4 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 82.000 cm × 32.000 cm (L × W × H), 37.400 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 236.000 kg |
