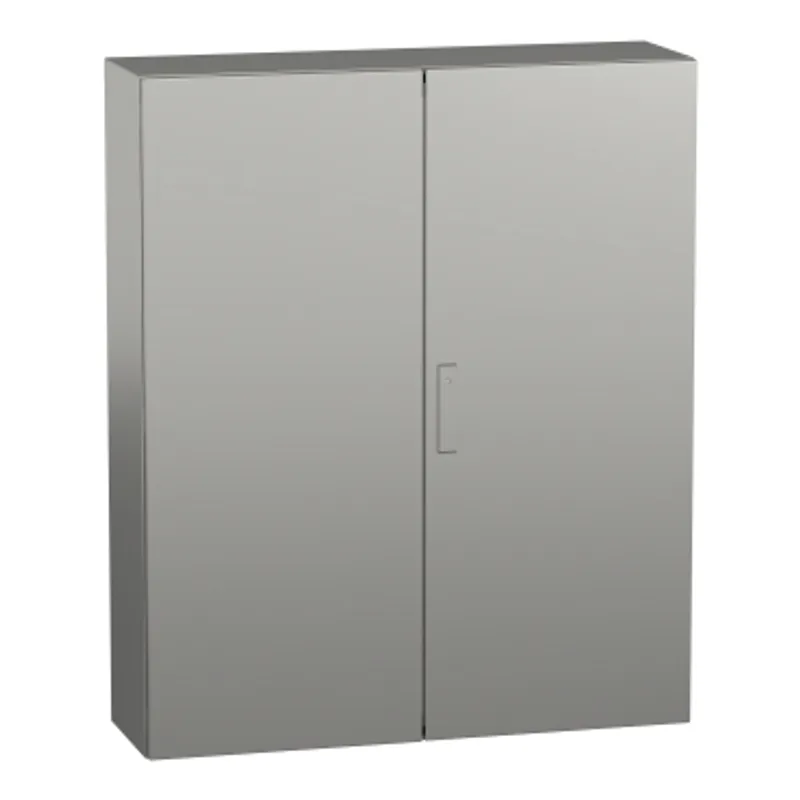

NSYS3X101030HWall mounted enclosure, PanelSeT S3X, stainless steel 316L,double plain door, 1000x1000x300mm, IP55
Schneider Electric NSYS3X121030
Wall mounted enclosure, PanelSeT S3X, stainless steel 304L,double plain door, 1200x1000x300mm, IP55
- MPN
- NSYS3X121030
- EAN
- 3606480154997
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X121030?
"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP55 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 1200mm, 1000mm and 300mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, two plain doors and one lock" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a three lock points lock with a 3mm double-bar insert" "The doors can be removed for maintenance purposes" "The net weight of the enclosure is 51,8kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1200 mm |
| nominal width | 1000 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 2 door, 1 lock: door, 1 reinforcement frame drilled: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed |
| Net weight | 51.8 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 122.000 cm × 101.000 cm × 32.000 cm (L × W × H), 51.800 kg |
| Package 2 | 3 PAL, 122.000 cm × 100.000 cm × 117.000 cm (L × W × H), 179.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X121030: frequently asked questions
When can NSYS3X121030 be shipped?
NSYS3X121030 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X121030 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X121030 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X121030, subject to availability and destination.
