Schneider Electric NSYS3X302515H

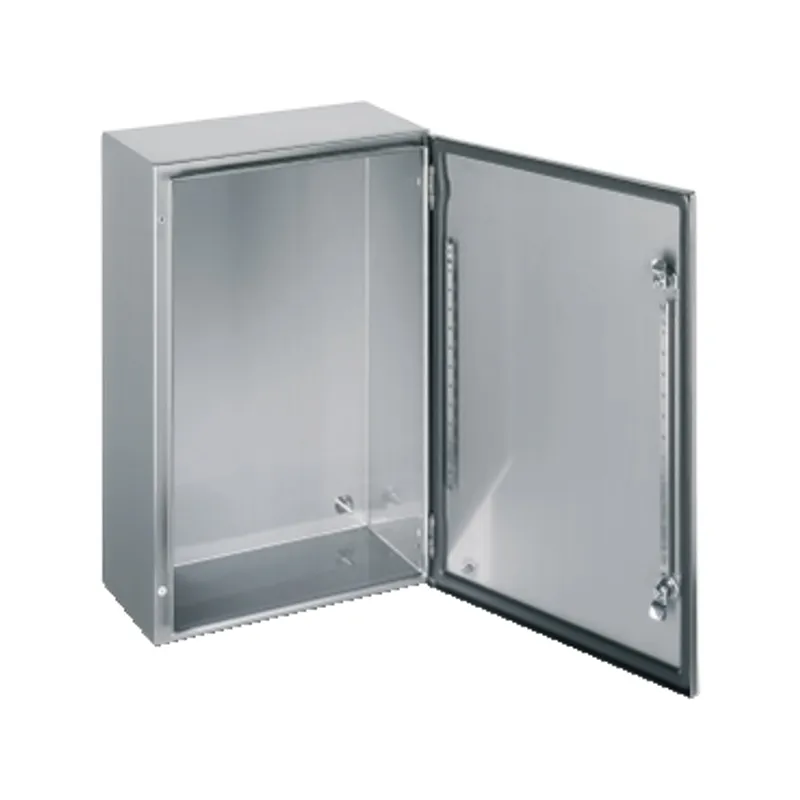

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 300x250x150mm, IP66
- MPN
- NSYS3X302515H
- EAN
- 3606480155048
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X302515H?
"PanelSet S3X is a stainless steel 316L wall-mounting enclosure, designed for multi-purpose applications and resistant to corrosion" "It is certified by CAN/CSA 22 and UL 508 type A, making it suitable for use in harsh environments" "It is IK10 (IEC 62262) rated and has an IP66 (IEC 60529) rating, providing high resistance to dust and water" "The enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm respectively" "It has a Scotch-Brite® brushed surface finish, and consists of a body, one plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock for added security" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,574kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 300 mm |
| nominal width | 250 mm |
| nominal depth | 150 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 3.574 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 31.000 cm × 26.000 cm × 16.500 cm (L × W × H), 3.574 kg |
| Package 2 | 135 PAM, 120.000 cm × 100.000 cm × 195.000 cm (L × W × H), 495.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X302515H: frequently asked questions
When can NSYS3X302515H be shipped?
NSYS3X302515H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X302515H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X302515H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X302515H, subject to availability and destination.
