Schneider Electric NSYS3X10830T

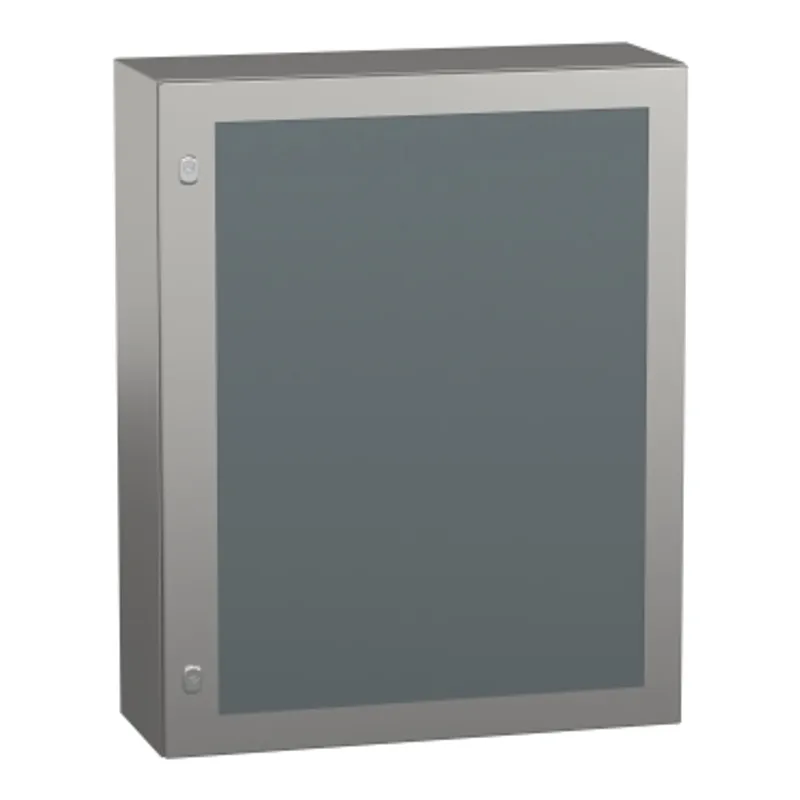

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, glazed door, 1000x800x300mm, IP66
- MPN
- NSYS3X10830T
- EAN
- 3606480154980
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X10830T?
"PanelSet S3X is a stainless steel 304L wall-mounting enclosure designed for multi-purpose applications and resistance to corrosion" "It has a nominal height, width and depth of 1000mm, 800mm and 300mm respectively and has an IK08 (IEC62262) and an IP66 (IEC60529) rating, making it dust and water resistant" "The enclosure is made with Scotch-Brite® brushed surface finish and the door is glazed with Securit glass" "The door has two lock points lock with a 3mm double-bar insert and can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 35kg" "It is UL 508 type A and CAN/CSA 22 certified and meets IEC 62208 standards"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1000 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Glazed |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel, Door: Securit glass |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 35 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 102.500 cm × 81.500 cm × 32.000 cm (L × W × H), 35.000 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 175.000 cm (L × W × H), 223.000 kg |
