Schneider Electric NSYS3X12830

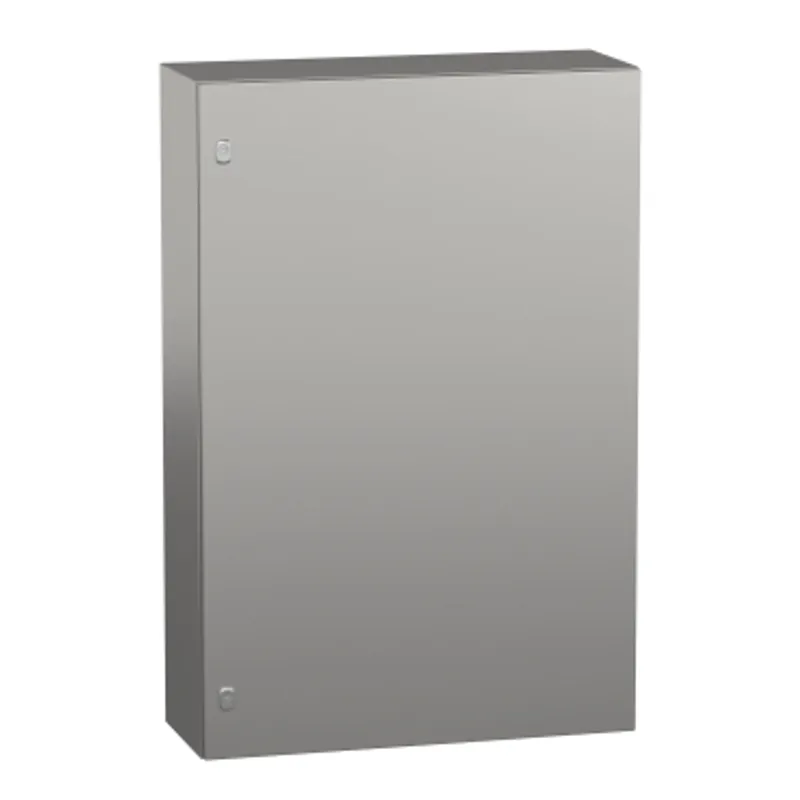

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 1200x800x300mm, IP66
- MPN
- NSYS3X12830
- EAN
- 3606480155017
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X12830?
"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It is certified by UL 508 type A and CAN/CSA 22 and is suitable for use in harsh environments" "The enclosure is IK10 rated (IEC 62262) and IP66 rated (IEC 60529) for high dust and water resistance" "It has a nominal height, width and depth of 1200mm, 800mm and 300mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish for a sleek and modern look" "The enclosure consists of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 43kg" "It meets IEC 62208 standards"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1200 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 reinforcement frame drilled: door, 1 door, 2 lock: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 43 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 123.000 cm × 81.000 cm × 32.000 cm (L × W × H), 43.000 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 177.000 cm (L × W × H), 269.000 kg |
