Schneider Electric NSYS3X302515

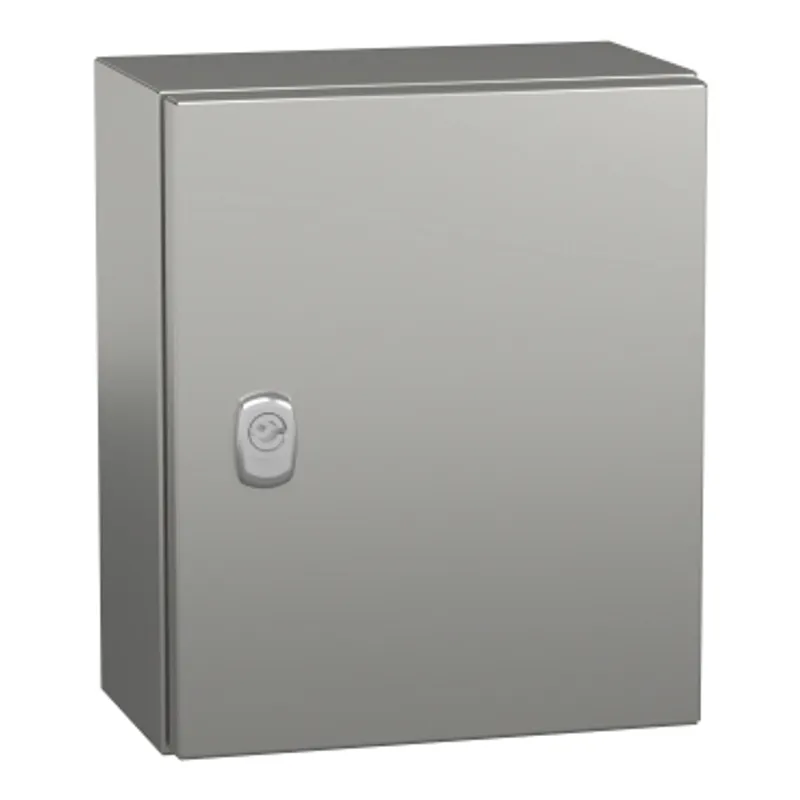

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 300x250x150mm, IP66
- MPN
- NSYS3X302515
- EAN
- 3606480155031
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X302515?
"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 300mm, 250mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 3,53kg" "It is certified to UL 508 type A and CAN/CSA 22 standards"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 300 mm |
| nominal width | 250 mm |
| nominal depth | 150 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 3.53 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL 508 type A, CAN/CSA 22 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 32.000 cm × 26.000 cm × 16.500 cm (L × W × H), 3.530 kg |
| Package 2 | 147 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 530.910 kg |
