Schneider Electric NSYS3X10830H

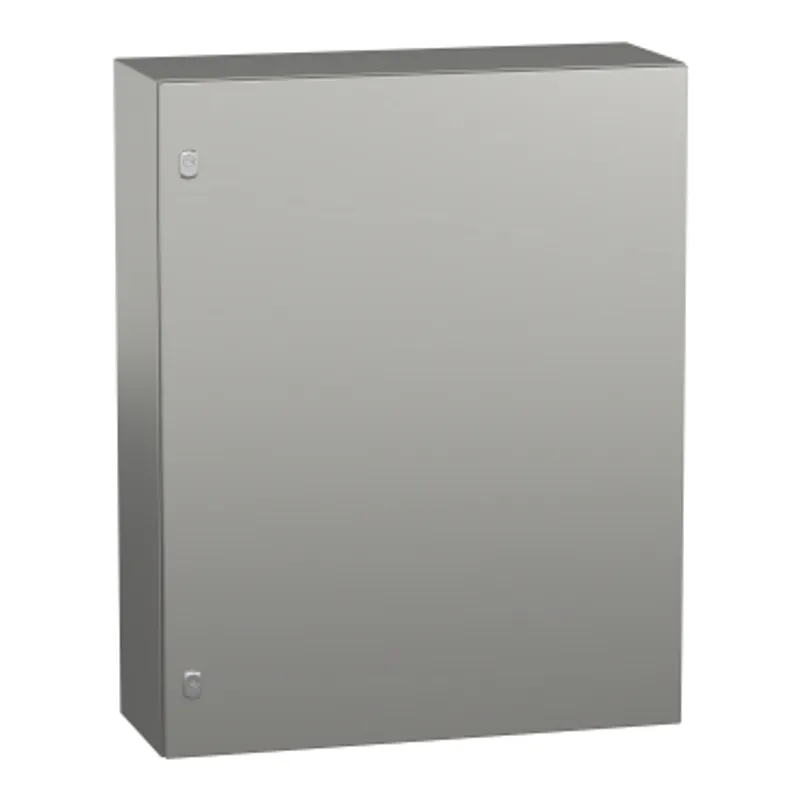

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 1000x800x300mm, IP66
- MPN
- NSYS3X10830H
- EAN
- 3606480154973
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X10830H?
"PanelSet S3X is a multi-purpose wall-mounting enclosure designed for harsh environments" "It is made of stainless steel 316L with a Scotch-Brite® brushed surface finish and a chromium-plated lock" "The enclosure has a nominal height, width and depth of 1000mm, 800mm and 300mm respectively, and has a net weight of 37,6kg" "The device composition includes one body, one reinforcement frame drilled door, one door and two locks" "The door is plain and opens up to 120°, allowing easy access to the equipment inside" "It has two lock points with a 3mm double-bar insert and can be reversed for convenience" "The enclosure is certified by CAN/CSA 22 and UL 508 Type A, and has an IK10 (IEC62262) and IP66 rating (IEC60529) for high impact resistance and dust and water protection" "It is also designed for specific hygiene and corrosive environments, and the door can be removed for maintenance purposes"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |
| nominal height | 1000 mm |
| nominal width | 800 mm |
| nominal depth | 300 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 reinforcement frame drilled: door, 1 door, 2 lock: door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 37.6 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 102.000 cm × 81.500 cm × 32.500 cm (L × W × H), 37.600 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 176.000 cm (L × W × H), 247.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3X10830H: frequently asked questions
When can NSYS3X10830H be shipped?
NSYS3X10830H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3X10830H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3X10830H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3X10830H, subject to availability and destination.
