ARGUS standard movement detectors Parts

Showing 1–5 of 5 parts

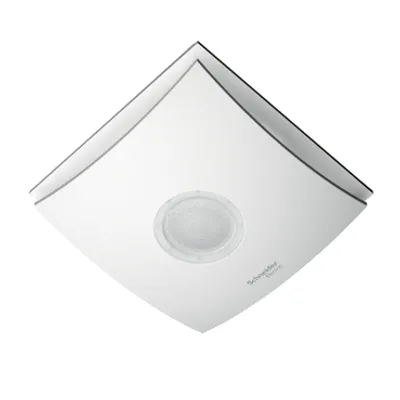

Schneider Electric CCT56P002 – ARGUS standard indoor 360° - carton
Schneider Electric
CCT56P002

ARGUS standard indoor 360° - carton

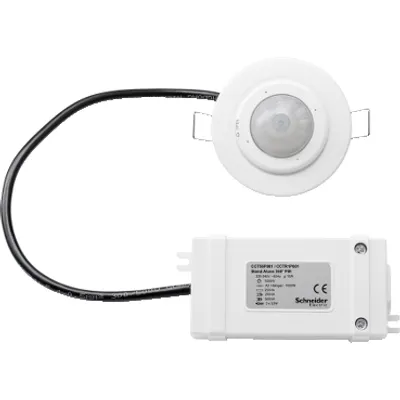

Schneider Electric CCT56P001 – Movement detector, ARGUS, 360 deg detection, 230VAC, 10A, standard indoor, surface, white
Schneider Electric
CCT56P001

Movement detector, ARGUS, 360 deg detection, 230VAC, 10A, standard indoor, surface, white

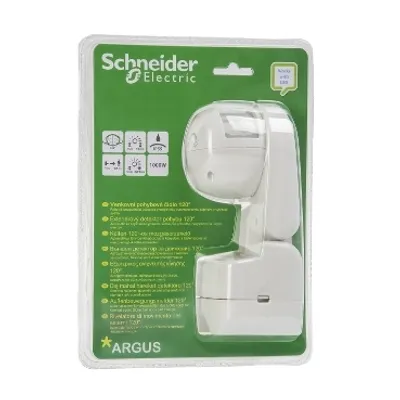

Schneider Electric CCTR1P004 – ARGUS standard outdoor 120° - blister
Schneider Electric
CCTR1P004

ARGUS standard outdoor 120° - blister

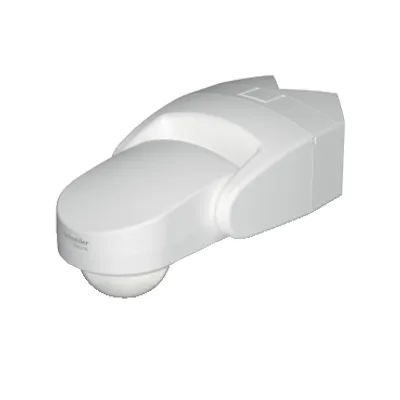

Schneider Electric CCT56P008 – ARGUS standard outdoor 360° - carton
Schneider Electric
CCT56P008

ARGUS standard outdoor 360° - carton

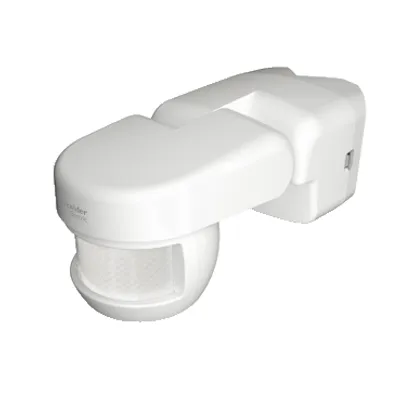

Schneider Electric CCT56P004 – ARGUS standard outdoor 120° - carton
Schneider Electric
CCT56P004

ARGUS standard outdoor 120° - carton

Compare ARGUS standard movement detectors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNType of packingTime delayHorizontal detection angledetection rangeMounting height
CCT56P002Carton3 s...10 min0…360 °Radius: 3.9 m2.4 m
CCT56P001Carton5 s...10 min0…360 °Radius: 3.9 m3 m
CCTR1P004Blister3 s...30 min0…120 °Frontal: 12 m2.5 m
CCT56P008Carton5 s...20 min0…360 °Frontal: 12 m2.5 m
CCT56P004Carton3 s...30 min0…120 °Frontal: 12 m2.5 m

Common to all listed parts

Range of productARGUS standard movement detector
RangeARGUS
Product or component typeMovement detector
Colour tintWhite
[Ue] rated operational voltage220...240 V
Network frequency50 Hz
Output current10 A
Light intensity adjustment5…2000 lux
