Schneider Electric 170ADM35010

Discrete I/O module Modicon Momentum - 16 I/O solid state

MPN
170ADM35010
EAN
3595861000261
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

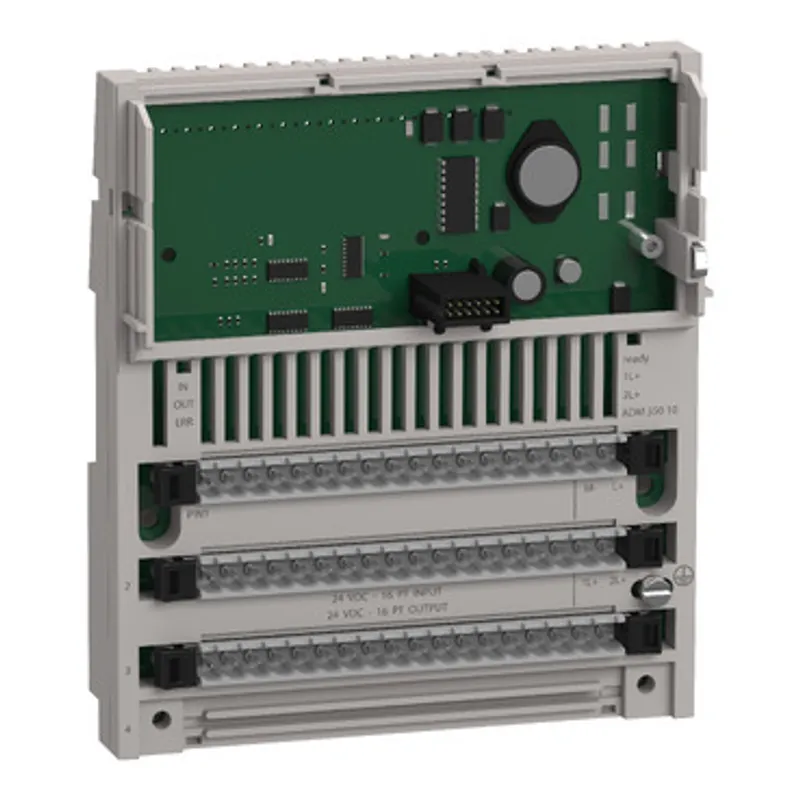

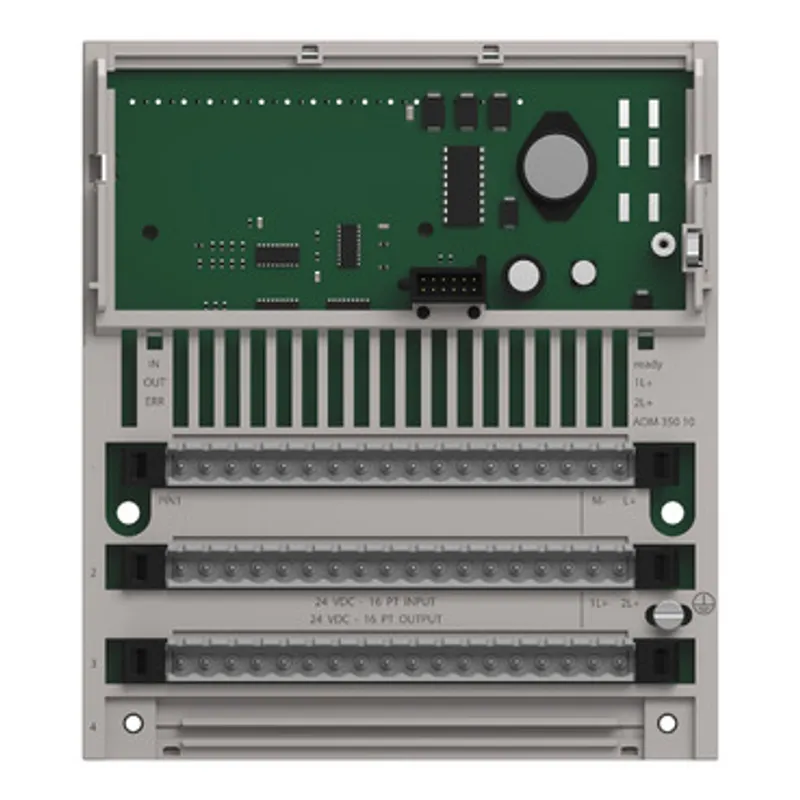

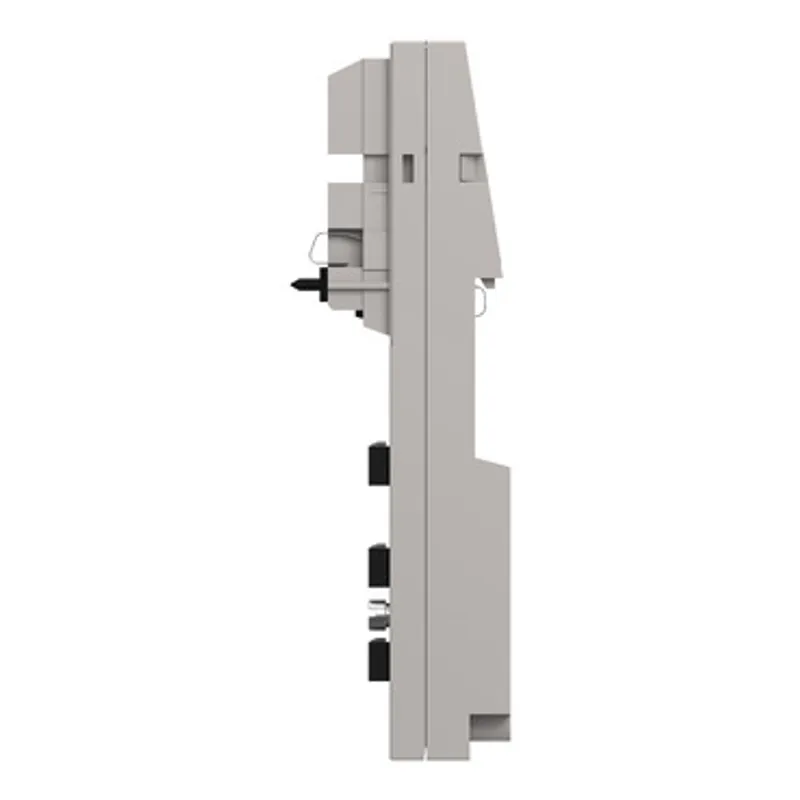

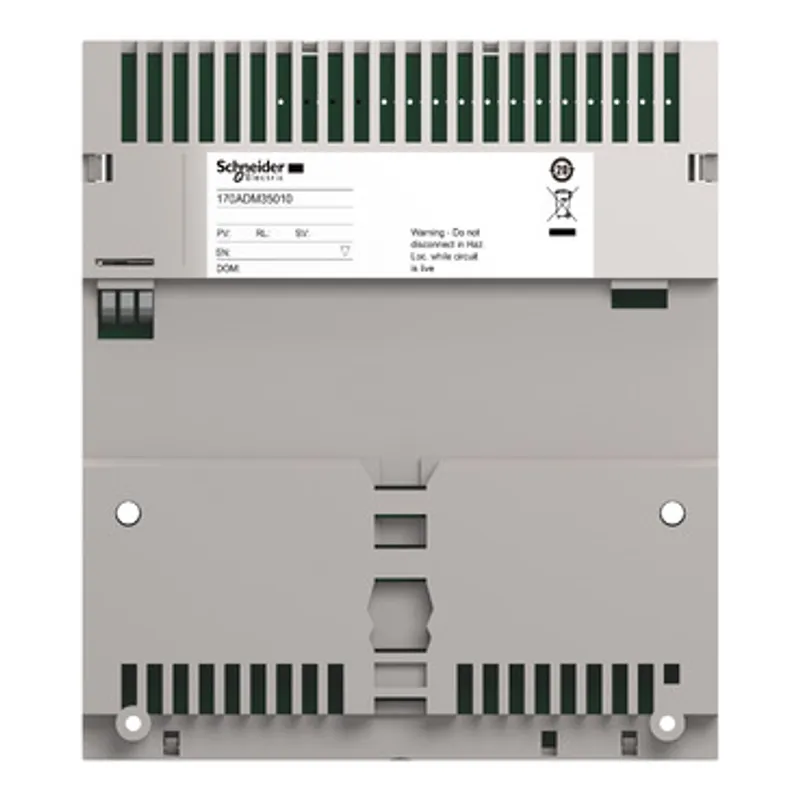

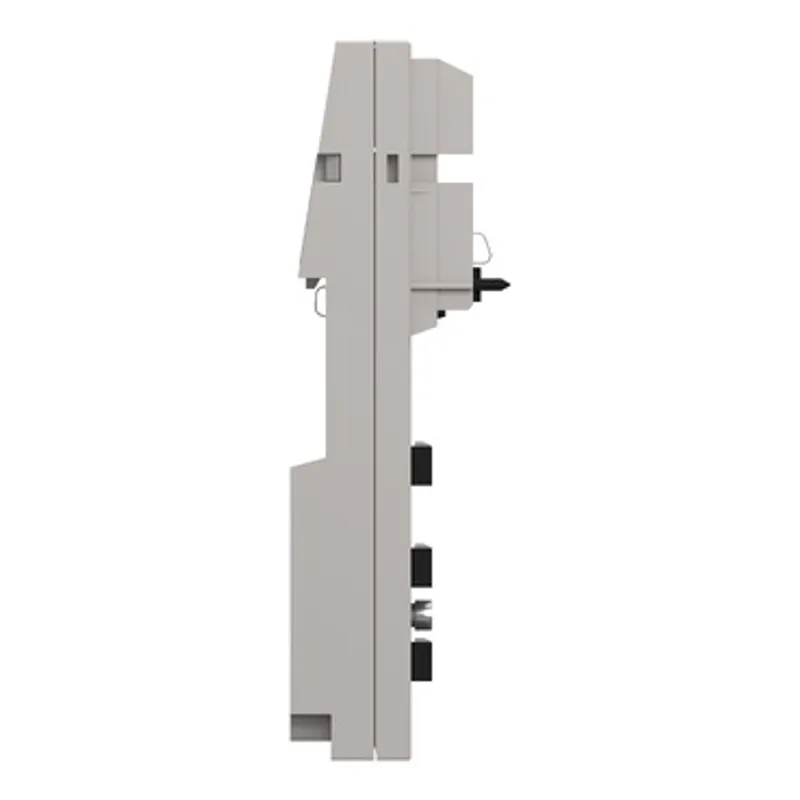

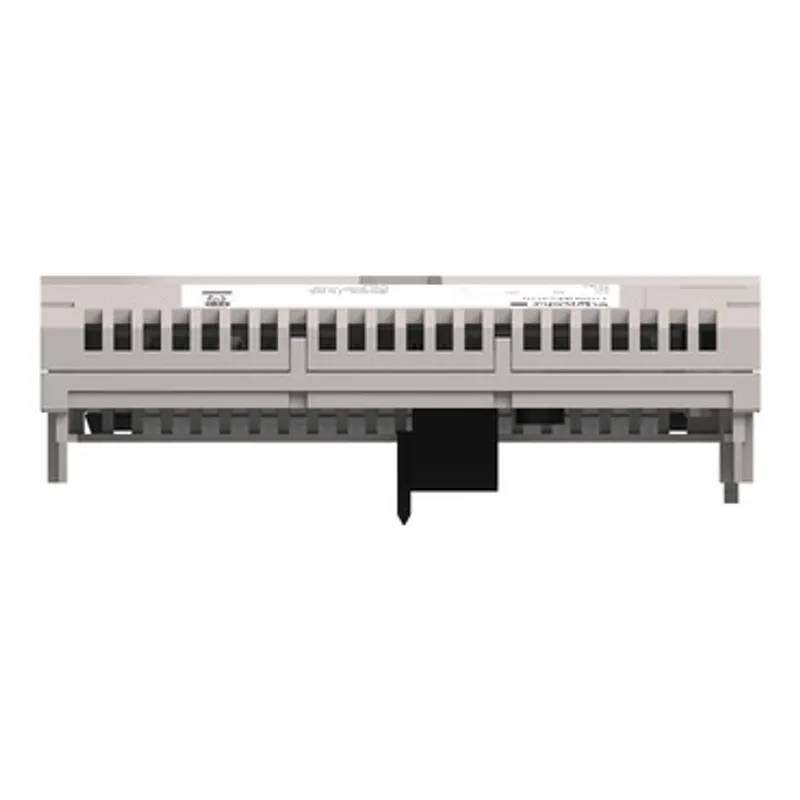

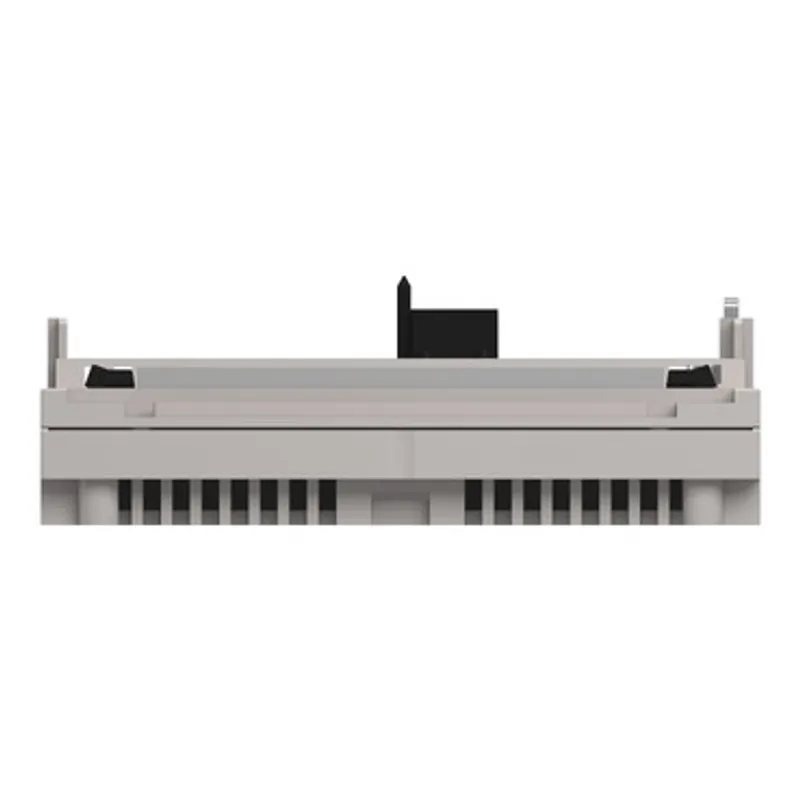

What is the Schneider Electric 170ADM35010?

This product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels2 groups of 8 outputs, 1 group of 16 inputs
Discrete input number16 conforming to IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number16
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC, 24 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state 1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Discrete output current4 A per group, 8 A per module, 0.5 A per point
Maximum leakage current1 mA at 24 V (output circuit)
Peak output current5 A
Maximum voltage drop<0.5 V 0.5 A at state 1 output circuit
Fault typeOverload on output
Response time< 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, 2.2 ms from state 0 to state 1 on input, 3.3 ms from state 1 to state 0 on input
Isolation between channels and bus500 V AC
Power dissipation6 W, <= 8 W
MarkingCE
Terminals description PLC n°1(L+)PW_POS, (8)IN_DIS#8, (6)IN_DIS#6, (5)IN_DIS#5, TB, (2)IN_DIS#2, (12)IN_DIS#12, (M-)PW_NEG, (15)IN_DIS#15, (13)IN_DIS#13, (10)IN_DIS#10, (3)IN_DIS#3, (9)IN_DIS#9, (7)IN_DIS#7, (1)IN_DIS#1, (11)IN_DIS#11, (14)IN_DIS#14, (16)IN_DIS#16, (4)IN_DIS#4
Terminals description PLC n°2(10)OUT_DIS#10, (6)OUT_DIS#6, (8)OUT_DIS#8, (1)OUT_DIS#1, (11)OUT_DIS#11, (4)OUT_DIS#4, (5)OUT_DIS#5, (15)OUT_DIS#15, (2L+)PW_POS, TB_1, (7)OUT_DIS#7, (2)OUT_DIS#2, (14)OUT_DIS#14, (9)OUT_DIS#9, (13)OUT_DIS#13, (3)OUT_DIS#3, (1L+)PW_POS, (12)OUT_DIS#12
Local signalling16 LEDs for channel status
Current consumption250 mA at 24 V DC
Depth47.5 mm
Height141.5 mm
Width125 mm
Net weight0.2 kg
Product certificationsUL, CSA
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 18.200 cm × 5.900 cm (L × W × H), 406.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.407 kg
Package 380 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 46.000 kg
