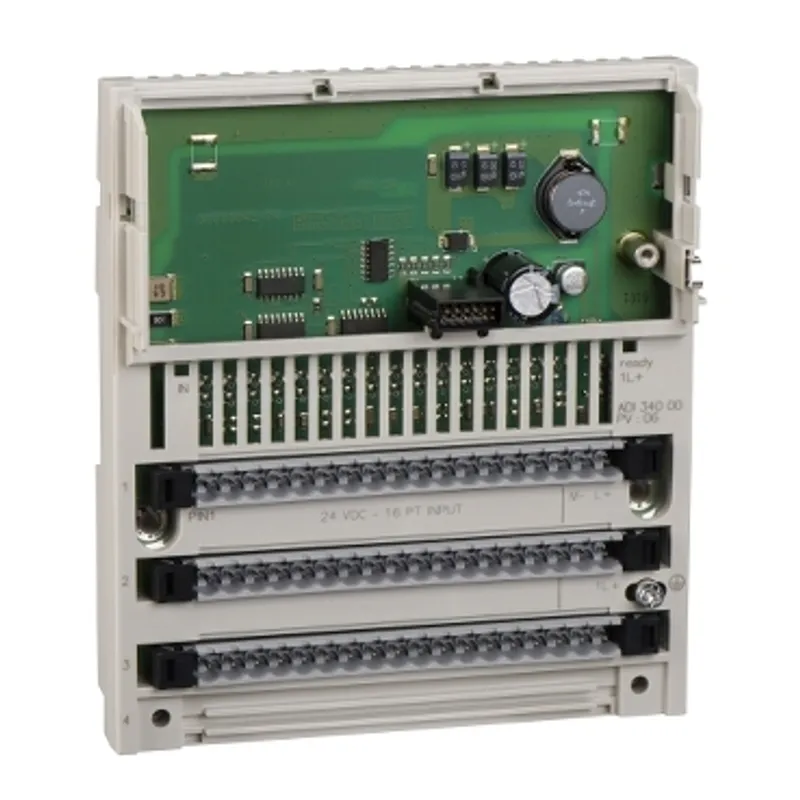

Schneider Electric 170ADI34000

Discrete input module Modicon Momentum - 16 Input 24 V DC

MPN
170ADI34000
EAN
3595861000247
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 170ADI34000?

"This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture." "It is a discrete solid state I/O base for DC." "This Modicon base supports one group of 16 inputs." "Momentum I/O base supports the whole control system." "On the front, 16 LEDs show channel status." "It is certified FM Class 1 Division 2, CSA, and UL." "It weighs 0.19kg." "The I/O base provides the foundation for the rest of the Momentum control system." "It complies with IEC 61131-2 Type 1 standard." "A Momentum I/O base is to be assembled with a communication adapter or a processor adapter." "Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount." "Momentum I/O bases offer simple plug-in terminal strips." "Modicon Momentum is a flexible, modular family of fundamental components." "Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications."

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeDiscrete inputs base DC
Group of channels1 group of 16 inputs
Discrete input number16 conforming to IEC 1131-2 Type 1
Discrete input voltage24 V DC
Protective treatmentTC
Discrete input logicPositive
Input voltage limits24 V
Voltage range- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state 1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Response time2.2 ms from state 0 to state 1, 3.3 ms from state 1 to state 0
Isolation between channels and bus500 V AC
Power dissipation5 W maximum, 3 W typical
Terminals description PLC n°1(8)IN_DIS#8, (5)IN_DIS#5, (16)IN_DIS#16, (4)IN_DIS#4, (3)IN_DIS#3, (13)IN_DIS#13, (14)IN_DIS#14, (10)IN_DIS#10, (L+)PW_POS, (M-)PW_NEG, (6)IN_DIS#6, (7)IN_DIS#7, (1)IN_DIS#1, (11)IN_DIS#11, (9)IN_DIS#9, (15)IN_DIS#15, (12)IN_DIS#12, TB, (2)IN_DIS#2
MarkingCE
Local signalling16 LEDs for channel status
Current consumption<= 250 mA at 24 V DC
Depth47.5 mm
Height141.5 mm
Width125 mm
Net weight0.19 kg
Product certificationsFM Class 1 Division 2, CSA, UL
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.0 cm × 18.2 cm × 5.7 cm (L × W × H), 388.0 g
Package 210 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 4.321 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

170ADI34000: frequently asked questions

When can 170ADI34000 be shipped?

170ADI34000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170ADI34000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170ADI34000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADI34000, subject to availability and destination.
