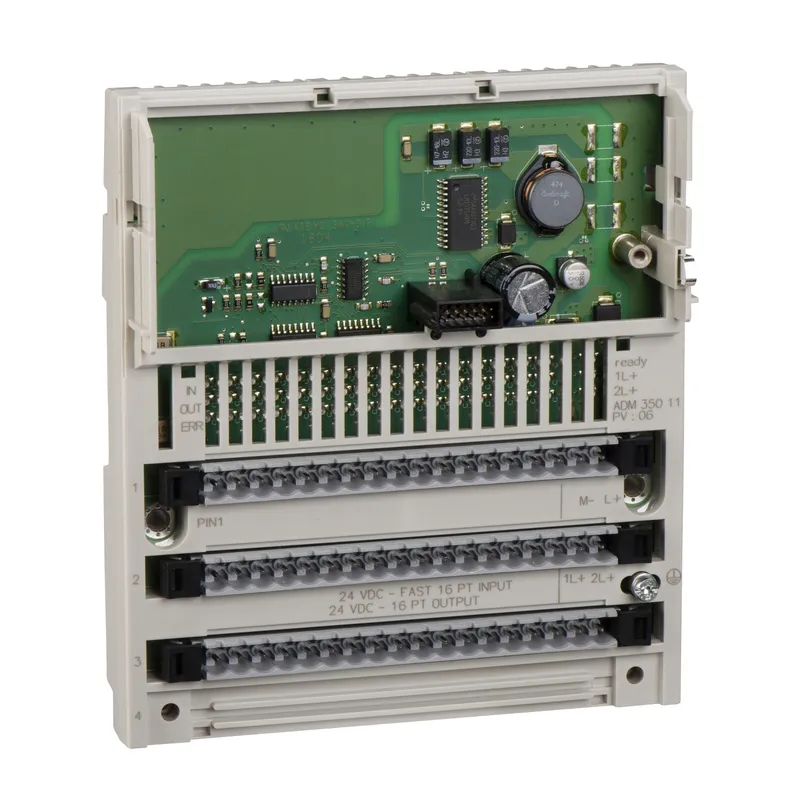

Schneider Electric 170ADM35015 – discrete I/O module Modicon Momentum - 16 I/O solid state
Discontinued by Schneider Electric — we can still source the original 170ADM35015 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Momentum |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Country of origin | FR |
| UPC / EAN | 3595862004305 |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
Can I still buy the 170ADM35015 now that it is discontinued?
Yes. Schneider Electric has discontinued the 170ADM35015, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 170ADM35015 be shipped?
170ADM35015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170ADM35015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170ADM35015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADM35015, subject to availability and destination.
Schneider Electric 170ADM35015 — discrete I/O module Modicon Momentum - 16 I/O solid state. Discontinued by Schneider Electric. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs; 1 group of 16 inputs |
| Discrete input logic | Negative |
| Discrete output number | 16 |
| Discrete output logic | Negative |
Complementary
| Input resistance | 4 kOhm |
| Peak output current | 5 A |
| Fault type | Overload on output |
| Isolation between channels and bus | 500 V AC |
| Terminals description PLC n°1 | (10)IN_DIS#10; (11)IN_DIS#11; (1)IN_DIS#1; (M-)PW_NEG; (8)IN_DIS#8; (13)IN_DIS#13; (5)IN_DIS#5; (L+)PW_POS; (3)IN_DIS#3; (15)IN_DIS#15; (16)IN_DIS#16; (7)IN_DIS#7; (4)IN_DIS#4; (9)IN_DIS#9; (2)IN_DIS#2; (14)IN_DIS#14; (12)IN_DIS#12; TB; (6)IN_DIS#6 |
| Terminals description PLC n°2 | (4)OUT_DIS#4; (8)OUT_DIS#8; (6)OUT_DIS#6; (3)OUT_DIS#3; (2)OUT_DIS#2; (12)OUT_DIS#12; (9)OUT_DIS#9; (14)OUT_DIS#14; TB_1; (10)OUT_DIS#10; (1)OUT_DIS#1; (7)OUT_DIS#7; (1L+)PW_POS; (2L+)PW_POS; (11)OUT_DIS#11; (15)OUT_DIS#15; (13)OUT_DIS#13; (5)OUT_DIS#5; (16)OUT_DIS#16 |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.2 kg |
Environment
| Protective treatment | TC |
| Marking | CE |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
| Product data sheet 170ADM35015 |
