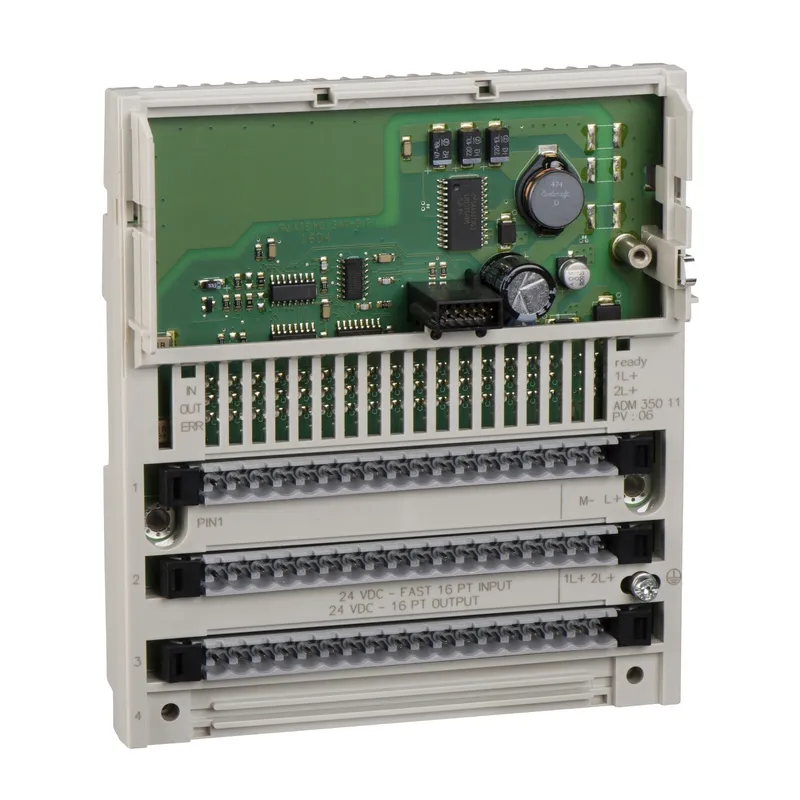

Schneider Electric 170ADM35010C
Discrete I/O module Modicon Momentum - Conformal coating - 16 I/O solid state
- MPN
- 170ADM35010C
- EAN
- 3595863798319
- Category
- Modicon Momentum
Discontinued by Schneider Electric — we can still source the original 170ADM35010C (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric 170ADM35010C?
Schneider Electric 170ADM35010C — discrete I/O module Modicon Momentum - Conformal coating - 16 I/O solid state. Discontinued by Schneider Electric; the manufacturer's successor is BMXDDO1602H. PartnerPLC sources discontinued and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon Momentum automation platform |
| Product or component type | Discrete solid state I/O base DC |
| Group of channels | 2 groups of 8 outputs; 1 group of 16 inputs |
| Discrete input logic | Positive |
| Discrete output number | 16 |
| Discrete output logic | Positive |
Complementary
| Network frequency | 47...63 Hz |
| Input resistance | 4 kOhm |
| Peak output current | 5 A |
| Fault type | Overload on output |
| Isolation between channels and bus | 500 V AC |
| Terminals description PLC n°1 | (9)IN_DIS#9; (L+)PW_POS; (1)IN_DIS#1; (3)IN_DIS#3; (16)IN_DIS#16; (11)IN_DIS#11; (5)IN_DIS#5; (M-)PW_NEG; (8)IN_DIS#8; (13)IN_DIS#13; (15)IN_DIS#15; (10)IN_DIS#10; (7)IN_DIS#7; (14)IN_DIS#14; (6)IN_DIS#6; (2)IN_DIS#2; TB; (12)IN_DIS#12; (4)IN_DIS#4 |
| Terminals description PLC n°2 | (15)OUT_DIS#15; (11)OUT_DIS#11; (8)OUT_DIS#8; (3)OUT_DIS#3; (10)OUT_DIS#10; (13)OUT_DIS#13; (12)OUT_DIS#12; (2L+)PW_POS; (6)OUT_DIS#6; (7)OUT_DIS#7; (1)OUT_DIS#1; (1L+)PW_POS; (14)OUT_DIS#14; (5)OUT_DIS#5; (2)OUT_DIS#2; TB_1; (4)OUT_DIS#4; (9)OUT_DIS#9 |
| Height | 141.5 mm |
| Width | 125 mm |
| Depth | 47.5 mm |
| Net weight | 0.2 kg |
Environment
| Protective treatment | Conformal coating Humiseal 1A33 |
| Marking | CE |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
170ADM35010C: frequently asked questions
Can I still buy the 170ADM35010C now that it is discontinued?
Yes. Schneider Electric has discontinued the 170ADM35010C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the BMXDDO1602H as its successor — we can quote both.
When can 170ADM35010C be shipped?
170ADM35010C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170ADM35010C in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170ADM35010C and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADM35010C, subject to availability and destination.
