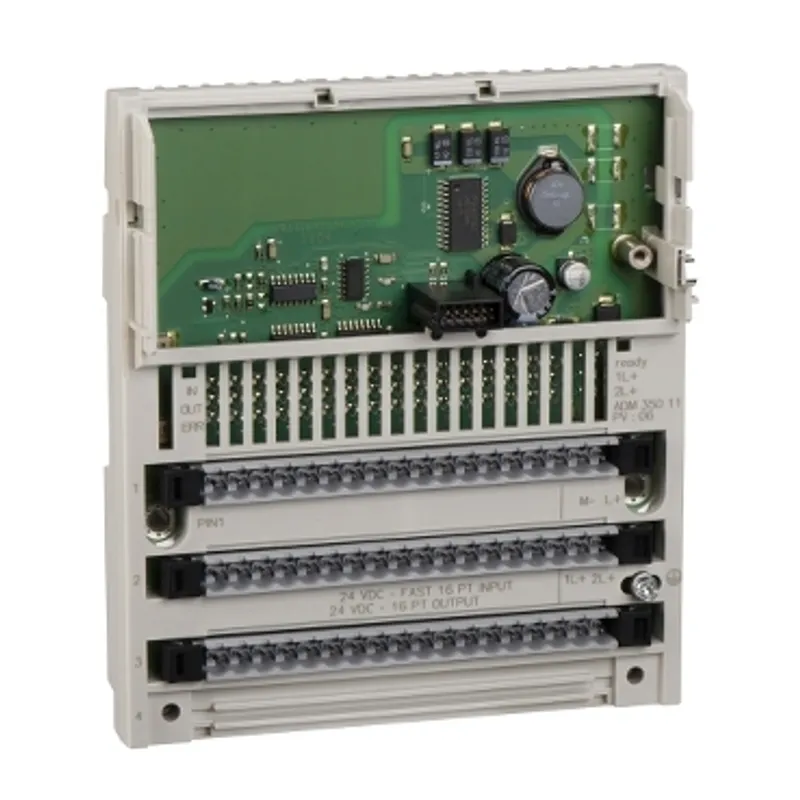

Schneider Electric 170ADM37010

Discrete I/O module Modicon Momentum - 16I / 8O solid state

MPN
170ADM37010
EAN
3595861147638
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 170ADM37010?

"This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture." "It is a discrete solid state I/O base for DC." "This solide state I/O base supports four groups of 4 inputs and two groups of 4 outputs." "Momentum I/O base supports the whole control system." "The internal communications connector provides automatic communication to any adapter mounted on the base." "It is a CSA and UL certified product." "It weighs 0.22kg." "The I/O base provides the foundation for the rest of the Momentum control system." "A Momentum I/O base is to be assembled with a communication adapter or a processor adapter." "Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount." "Momentum I/O bases offer simple plug-in terminal strips." "Modicon Momentum is a flexible, modular family of fundamental components." "Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications."

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels4 groups of 4 inputs, 2 groups of 4 outputs
Discrete input number16 conforming to IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number8
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC, 24 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state 1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Discrete output current16 A per module, 2 A per point, 8 A per group
Maximum leakage current1 mA at 24 V (output circuit)
Peak output current2.8 A
Fault typeShort circuit on output, Overload on output
Response time< 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, 2.2 ms from state 0 to state 1 on input, 3.3 ms from state 1 to state 0 on input
Isolation between channels and bus500 V AC
Power dissipation6.5 W, <= 10 W
MarkingCE
Terminals description PLC n°1(11)IN_DIS#11, (M-)PW_NEG, (L+)PW_POS, (7)IN_DIS#7, (15)IN_DIS#15, (16)IN_DIS#16, (1)IN_DIS#1, (4)IN_DIS#4, (6)IN_DIS#6, (14)IN_DIS#14, (13)IN_DIS#13, (5)IN_DIS#5, TB, (12)IN_DIS#12, (10)IN_DIS#10, (8)IN_DIS#8, (2)IN_DIS#2, (3)IN_DIS#3, (9)IN_DIS#9
Terminals description PLC n°2(5)OUT_DIS#5, (1)OUT_DIS#1, (2)OUT_DIS#2, (4)OUT_DIS#4, (6)OUT_DIS#6, (8)OUT_DIS#8, (7)OUT_DIS#7, (3)OUT_DIS#3, (1L+)PW_POS, (2L+)PW_POS, TB_1
Current consumption250 mA at 24 V DC
Depth47.5 mm
Height141.5 mm
Width125 mm
Net weight0.22 kg
Product certificationsUL, CSA
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 394.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.381 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

170ADM37010: frequently asked questions

When can 170ADM37010 be shipped?

170ADM37010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 170ADM37010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 170ADM37010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170ADM37010, subject to availability and destination.
