Schneider Electric 170ADM35011

Discrete I/O module Modicon Momentum - 16 I/O solid state

MPN
170ADM35011
EAN
3595861147621
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original 170ADM35011 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric 170ADM35011?

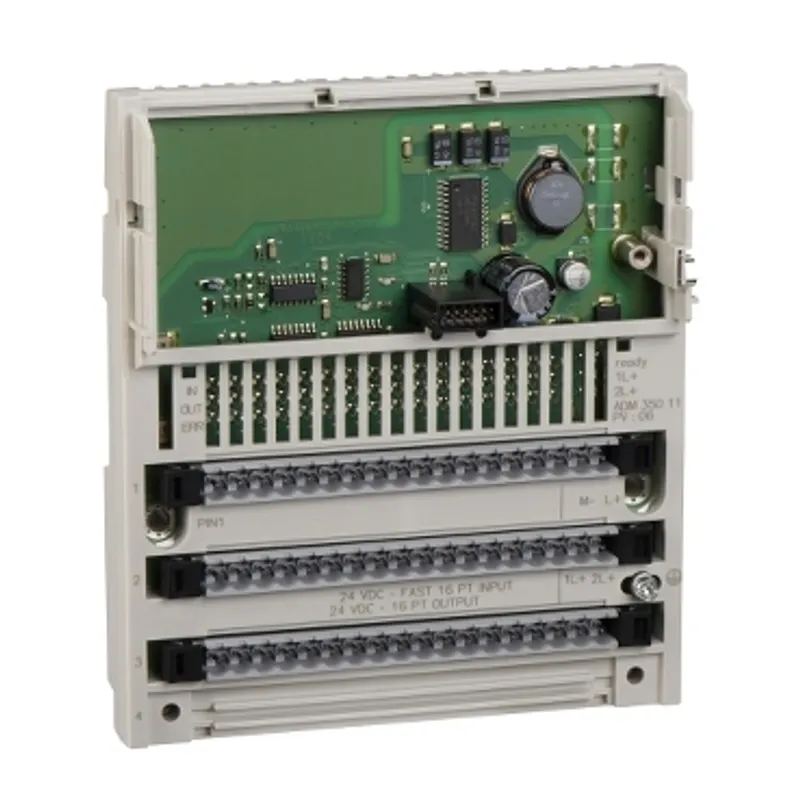

"This I/O module is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture." "It is a discrete solid state I/O base for DC." "This solide state I/O base supports one group of 16 24Vcc inputs and two groups of 8 transistor outputs." "This base provides fast response." "The internal communications connector provides automatic communication to any adapter mounted on the base." "It is a CSA and UL certified product." "It weighs 0.2kg." "The I/O base provides the foundation for the rest of the Momentum control system." "A Momentum I/O base is to be assembled with a communication adapter or a processor adapter." "Momentum I/O base has mounting holes for a panel mount and a locking tab for a DIN rail mount." "Momentum I/O bases offer simple plug-in terminal strips." "Modicon Momentum is a flexible, modular family of fundamental components." "Modicon Momentum products are specially designed for material handling, simple machine control, and building automation applications."

Specifications

Specifications

Range of productModicon Momentum automation platform
Product or component typeDiscrete solid state I/O base DC
Group of channels2 groups of 8 outputs, 1 group of 16 inputs
Discrete input number16 conforming to IEC 1131-2 Type 1
Discrete input logicPositive
Discrete input voltage24 V DC
Discrete output number16
Discrete output typeSolid state switch
Discrete output voltage<= 30 V DC, 24 V DC
Discrete output logicPositive
Protective treatmentTC
[Us] rated supply voltage24 V DC
Input voltage limits- 3...30 V
Voltage state 0 guaranteed-3...5 V
Voltage state 1 guaranteed11...30 V
Current state 0 guaranteed<= 1.2 mA
Current state 1 guaranteed>= 2.5 mA
Input resistance4 kOhm
Discrete output current4 A per group, 8 A per module, 0.5 A per point
Maximum leakage current1 mA at 24 V (output circuit)
Peak output current5 A
Maximum voltage drop<0.5 V 0.5 A at state 1 output circuit
Fault typeOverload on output
Response time< 0.1 ms from state 0 to state 1 on output, < 0.1 ms from state 1 to state 0 on output, 0.06 ms from state 0 to state 1 on input, 0.08 ms from state 1 to state 0 on input
Isolation between channels and bus500 V AC
Power dissipation<= 8 W, 6 W
MarkingCE
Terminals description PLC n°1(6)IN_DIS#6, (1)IN_DIS#1, (4)IN_DIS#4, (8)IN_DIS#8, (14)IN_DIS#14, (L+)PW_POS, (10)IN_DIS#10, (3)IN_DIS#3, (M-)PW_NEG, (12)IN_DIS#12, (16)IN_DIS#16, (9)IN_DIS#9, (11)IN_DIS#11, (5)IN_DIS#5, TB, (2)IN_DIS#2, (15)IN_DIS#15, (7)IN_DIS#7, (13)IN_DIS#13
Terminals description PLC n°2(16)OUT_DIS#16, TB_1, (12)OUT_DIS#12, (13)OUT_DIS#13, (4)OUT_DIS#4, (2)OUT_DIS#2, (10)OUT_DIS#10, (15)OUT_DIS#15, (5)OUT_DIS#5, (6)OUT_DIS#6, (11)OUT_DIS#11, (1L+)PW_POS, (9)OUT_DIS#9, (1)OUT_DIS#1, (14)OUT_DIS#14, (2L+)PW_POS, (7)OUT_DIS#7, (8)OUT_DIS#8, (3)OUT_DIS#3
Current consumption250 mA at 24 V DC
Depth47.5 mm
Height141.5 mm
Width125 mm
Net weight0.2 kg
Product certificationsCSA, UL
Resistance to electrostatic discharge4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2
Resistance to electromagnetic fields10 V/m 80...1000 MHz conforming to IEC 801-3
Ambient air temperature for operation0…60 °C
Ambient air temperature for storage-40…85 °C
Relative humidity95 % without condensation
Operating altitude<= 5000 m

Packaging

Package 11 PCE, 26.000 cm × 18.000 cm × 5.500 cm (L × W × H), 389.000 g
Package 210 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.331 kg
