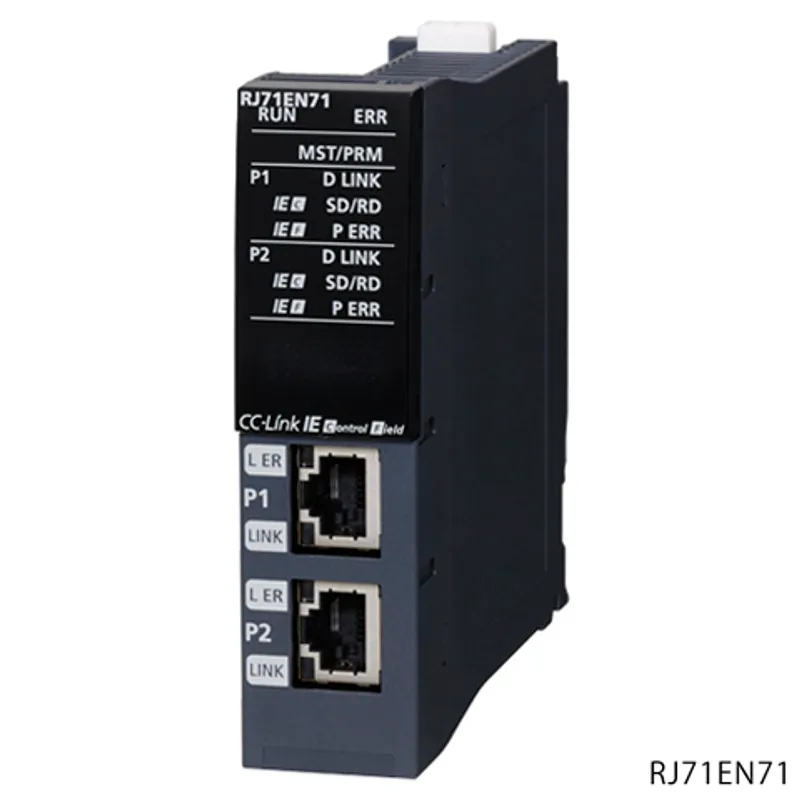

What is the Mitsubishi Electric RJ71EN71?

The Mitsubishi Electric RJ71EN71 is a ethernet in the MELSEC iQ-R Series. 1000BASE-T/100BASE-TX/10BASE-T: CC-Link IE Controller network (twisted pair cables), control/normal station: CC-Link IE Field Network manager/local station. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryEthernet
Outline1000BASE-T/100BASE-TX/10BASE-T: CC-Link IE Controller network (twisted pair cables), control/normal station: CC-Link IE Field Network manager/local station

Ethernet specifications

Transmission specifications: Data transmission speed1 Gbps/100 Mbps/10 Mbps
Transmission specifications: Communication mode1000BASE-T: Full-duplex 100BASE-TX: Full-duplex/half-duplex 10BASE-T: Full-duplex/half-duplex
Transmission specifications: InterfaceRJ45 (AUTO MDI/MDI-X)
Transmission specifications: Transmission methodBase band
Transmission specifications: Maximum frame size• 1518 bytes • 9022 bytes (when jumbo frames are used)
Transmission specifications: Jumbo frameAvailable
Transmission specifications: Maximum segment length100 m (length between hub and node)
Transmission specifications: IP versionIPv4
Sending/receiving data storage memory: Number of simultaneously open connections128 connections (connections usable on a program)
Sending/receiving data storage memory: Fixed buffer5K words × 16
Sending/receiving data storage memory: Socket communications• 5K words × 48 (when only P1 is used) • 5K words × 112 (when P1 and P2 are used)
Sending/receiving data storage memory: Random access buffer6K words × 1

CC-Link IE Controller Network specifications

Maximum number of link points per network: LB32K points (32768 points, 4K bytes)
Maximum number of link points per network: LW128K points (131072 points, 256K bytes)
Maximum number of link points per network: LX8K points (8192 points, 1K bytes)
Maximum number of link points per network: LY8K points (8192 points, 1K bytes)
Maximum number of link points per station: LB16K points (16384 points, 2K bytes), extended mode: 32K points (32768 points, 4K bytes))
Maximum number of link points per station: LW16K points (16384 points, 2K bytes), extended mode: 128K points (131072 points, 256K bytes))
Maximum number of link points per station: LX8K points (8192 points, 1K bytes)
Maximum number of link points per station: LY8K points (8192 points, 1K bytes)
Transient transmission capacityMaximum 1920 bytes
Communication speed1 Gbps
Network topologyLine topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cableEthernet cable which satisfies 1000BASE-T standard: Category 5e or higher, straight cable (double shielded, STP)
Maximum station-to-station distance100 m (compliant with ANSI/TIA/EIA-568-B (Category 5e))
Overall cable distanceLine topology: 11900 m (when 120 stations are connected) Star topology: Depends on the system configuration Ring topology: 12000 m (when 120 stations are connected)
Number of cascade connections20 levels maximum
Maximum number of connectable stations120 stations (control station: 1, normal station: 119)
Maximum number of networks239
Maximum number of groups32
Communication methodToken passing
Applicable connectorRJ45 connector

CC-Link IE Field Network specifications

Maximum number of link points per network: RX16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RX16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RY16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station: Local station: RX2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RY2K points (2048 points, 256K bytes)
Maximum number of link points per station: Local station: RWr1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Maximum number of link points per station: Local station: RWw1K points (1024 points, 2K bytes) 256 points (512 bytes) when communication mode is "High-Speed"
Transient transmission capacityMaximum 1920 bytes
Communication speed1 Gbps
Network topologyLine topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cableEthernet cable which satisfies 1000BASE-T standard: Category 5e or higher, straight cable (double shielded, STP)
Maximum station-to-station distance100 m (conforms to ANSI/TIA/EIA-568-B (Category 5e))
Overall cable distanceLine topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections20 levels maximum
Maximum number of connectable stations121 stations (manager station: 1, device station: 120)
Maximum number of networks239
Communication methodToken passing

Hardware specifications

Number of occupied I/O points32 points
Internal current consumption (5 V DC)0.82 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RJ71EN71: frequently asked questions

When can RJ71EN71 be shipped?

RJ71EN71 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71EN71 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71EN71 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71EN71, subject to availability and destination.
