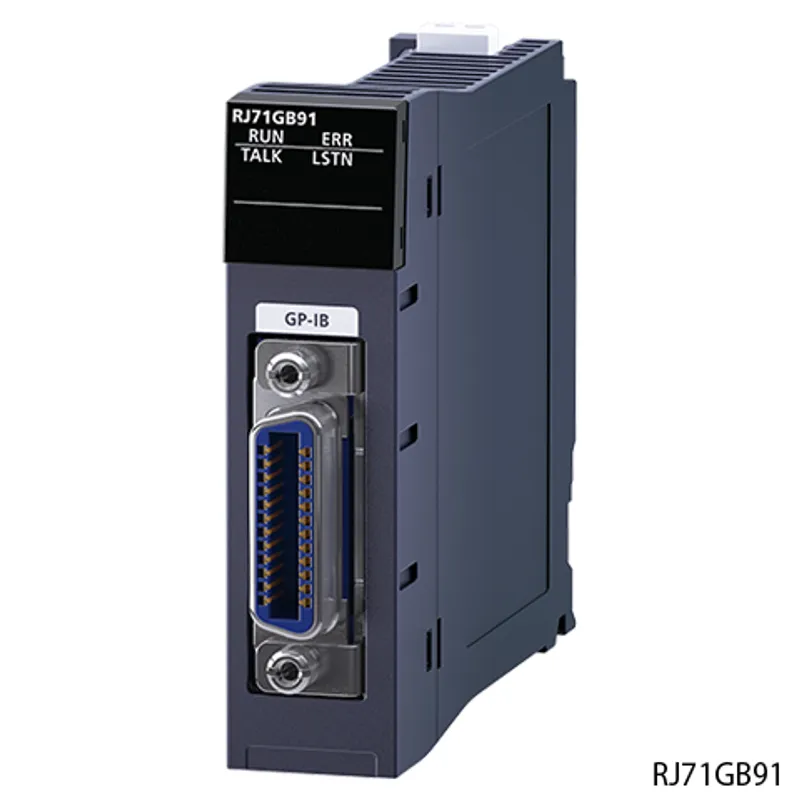

Mitsubishi Electric RJ71GB91

Mitsubishi MELSEC iQ-R Series GP-IB interface

MPN
RJ71GB91
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RJ71GB91?

The Mitsubishi Electric RJ71GB91 is a GP-IB interface in the MELSEC iQ-R Series. GP-IB system compatible, controller/device. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryGP-IB interface
OutlineGP-IB system compatible, controller/device

Specifications

GP-IB interface1 port
Transmission system8 bits parallel transmission
Communication methodHalf duplex
InterfaceIEEE488.1 compliant
Handshake method3-wire handshake
Network topologyStar topology, daisy chain topology
Cable length2m or less per interface module (overall cable distance 20m) 4m maximum only for one to one connection
Number of connectable connectors2 maximum (connected in piles)
Number of connectable devices15 maximum (the GP-IB interface module included)
Device address settable0...30 (Set addresses by the module parameter.)
Number of data that can be sent/received at a time• Send: 32360 bytes maximum • Receive: 32360 bytes maximum
End of data communications: SendEnd code (CRLF or any code of 1 byte) or EOI output (according to the settings of module parameter)
End of data communications: ReceiveEnd code (CRLF or any code of 1 byte), EOI detection, or size of received data (according to the settings of module parameter)
Data communication rateThe transfer speed of the slowest device among the connected devices100K bytes maximum/s (for when one device is connected to one GP-IB interface module)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.28 A
External dimensions: Height106 mm
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RJ71GB91: frequently asked questions

When can RJ71GB91 be shipped?

RJ71GB91 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71GB91 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71GB91 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71GB91, subject to availability and destination.
