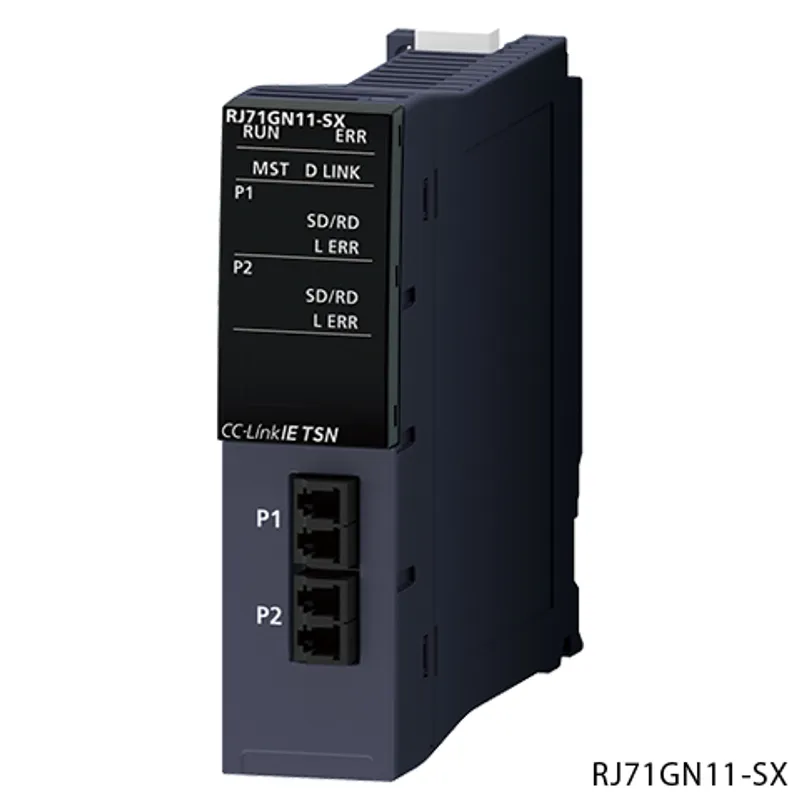

Mitsubishi Electric RJ71GN11-SX

Mitsubishi MELSEC iQ-R Series CC-Link IE TSN

MPN
RJ71GN11-SX
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RJ71GN11-SX?

The Mitsubishi Electric RJ71GN11-SX is a CC-Link IE TSN in the MELSEC iQ-R Series. CC-Link IE TSN manager/local station, optical fiber cable-compatible. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryCC-Link IE TSN
OutlineCC-Link IE TSN manager/local station, optical fiber cable-compatible

CC-Link IE TSN specifications

Maximum number of link points per network *1: RX16K points (16384 points, 2K bytes)
Maximum number of link points per network *1: RY16K points (16384 points, 2K bytes)
Maximum number of link points per network *1: RWr8K points (8192 points, 16K bytes)
Maximum number of link points per network *1: RWw8K points (8192 points, 16K bytes)
Maximum number of link points per network *1: LB32K points (32768 points, 4K bytes), when the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per network *1: LW16K points (16384 points, 32K bytes), when the number of link points is extended: 512K points (524288 points, 1024K bytes)
Maximum number of link points per station (Manager station and local stations): RX16K points (16384 points, 2K bytes)
Maximum number of link points per station (Manager station and local stations): RY16K points (16384 points, 2K bytes)
Maximum number of link points per station (Manager station and local stations): RWr8K points (8192 points, 16K bytes)
Maximum number of link points per station (Manager station and local stations): RWw8K points (8192 points, 16K bytes)
Maximum number of link points per station (Manager station and local stations): LB32K points (32768 points, 4K bytes), when the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per station (Manager station and local stations): LW16K points (16384 points, 32K bytes), when the number of link points is extended: 512K points (524288 points, 1024K bytes)
Transient transmission capacityMaximum 1920 bytes
Communication speed1 Gbps
Minimum synchronization cycle125.00 µs
CC-Link IE TSN ClassCC-Link IE TSN Class B
CC-Link IE TSN protocol versionProtocol version 2.0/1.0
Communication methodTime sharing method/time-managed polling method *2
Laser class (IEC 60825-1: 2014, JIS C6802: 2014)Class 1 laser product
Network topologyLine topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology *2
Communication cableOptical fiber cable which satisfies standard: IEEE 802.3z 1000BASE-SX compatible GI type silica glass multimode optical fiber cable IEC 60793-2-10 A1a.1 compliant
Maximum station-to-station distance550 m
Overall cable distance: Line topology66000 m (when 121 stations are connected) *2
Overall cable distance: Ring topology66550 m (when 121 stations are connected)
Overall cable distance: OthersDepends on the system configuration
Maximum number of connectable stations *3121 stations (manager station: 1, device station: 120, extension modules included) *2
Maximum number of connectable CC-Link IE TSN Communication Software2 *2
Maximum number of networks239
Multicast filterSupported
Number of extension modules per main module7

Ethernet specifications

Transmission specifications: Data transmission speed1 Gbps
Transmission specifications: Communication mode1000BASE SX: Full-duplex
Transmission specifications: InterfaceDuplex LC connector
Transmission specifications: Maximum frame size1518 bytes
Transmission specifications: Jumbo frameNot available
Transmission specifications: Maximum segment length550 m
Transmission specifications: Number of cascaded connectionsConsult the manufacturer of the switching hub used.
Transmission specifications: IP versionIPv4
Transmission specifications: SNMP *6 *7: Versionv2c
Transmission specifications: SNMP *6 *7: Supported MIBMIB-II (RFC1213)
Sending/receiving data storage memory: Number of simultaneous open connections (maximum number of connections): Connection with MELSOFT products and a GOT8 connections *4
Sending/receiving data storage memory: Number of simultaneous open connections (maximum number of connections): Connection to SLMP-compatible devices8 connections *4

Hardware specifications

Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.80 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.17 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RJ71GN11-SX: frequently asked questions

When can RJ71GN11-SX be shipped?

RJ71GN11-SX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71GN11-SX in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71GN11-SX and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71GN11-SX, subject to availability and destination.
