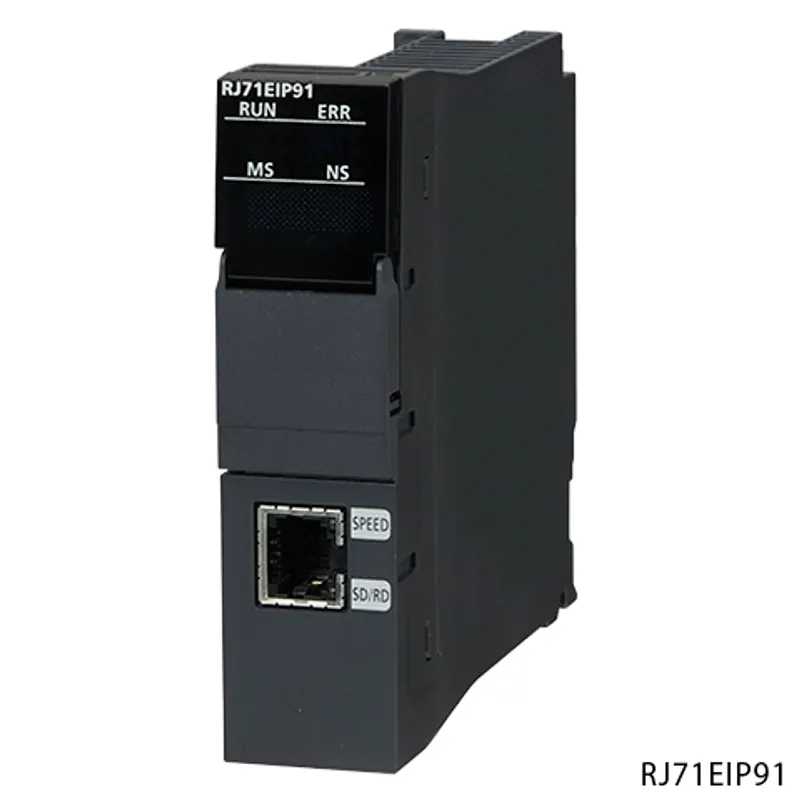

Mitsubishi Electric RJ71EIP91

Mitsubishi MELSEC iQ-R Series EtherNet/IP

MPN
RJ71EIP91
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RJ71EIP91?

The Mitsubishi Electric RJ71EIP91 is a etherNet/IP in the MELSEC iQ-R Series. EtherNet/IP™ system compatible, scanner, EtherNet/IP communication function: Class1 instance communication, Class1 tag communication, Class3 message communication, UCMM message communication. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryEtherNet/IP
OutlineEtherNet/IP™ system compatible, scanner, EtherNet/IP communication function: Class1 instance communication, Class1 tag communication, Class3 message communication, UCMM message communication

performance specifications of EtherNet/IP

EtherNet/IP communications: Class 1 communications: Communication formatInstance communications, tag communications
EtherNet/IP communications: Class 1 communications: Number of connections• Instance communications: 256 • Tag communications: 256
EtherNet/IP communications: Class 1 communications: Communication data size1444 bytes (per connection)
EtherNet/IP communications: Class 1 communications: Connection typePoint-to-point, multicast
EtherNet/IP communications: Class 1 communications: RPI (communication cycle)0.5...60000 ms
EtherNet/IP communications: Class 1 communications: PPS (communication processing performance)12000 PPS (PPS: Number of frames that can be processed per second)
EtherNet/IP communications: Class 3 communications: Communication formatMessage communications
EtherNet/IP communications: Class 3 communications: Number of connections• Server: 256 • Client: None
EtherNet/IP communications: Class 3 communications: Communication data sizeMessage communications: 1414 bytes (per connection)
EtherNet/IP communications: Class 3 communications: Connection typePoint-to-point
EtherNet/IP communications: UCMM communications: Communication formatMessage communications
EtherNet/IP communications: UCMM communications: Number of connections (number of simultaneous executions)• Server: 96 • Client: 32
EtherNet/IP communications: UCMM communications: Communication data sizeMessage communications: 1414 bytess
EtherNet/IP communications: UCMM communications: Connection typePoint-to-point
Transmission specifications: Number of ports1
Transmission specifications: Communication mode1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Data transmission speed [bps]• 1 Gbps • 100 Mbps
Transmission specifications: Transmission methodBase band
Transmission specifications: Maximum segment length100 m (distance between an industrial switch and a station)
Transmission specifications: Number of cascaded connectionsConsult the manufacturer of the switching hub used.
Transmission specifications: InterfaceRJ45 (AUTO MDI/MDI-X)
Transmission specifications: IP versionCompatible with IPv4
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)1.09 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.24 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RJ71EIP91: frequently asked questions

When can RJ71EIP91 be shipped?

RJ71EIP91 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71EIP91 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71EIP91 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71EIP91, subject to availability and destination.
