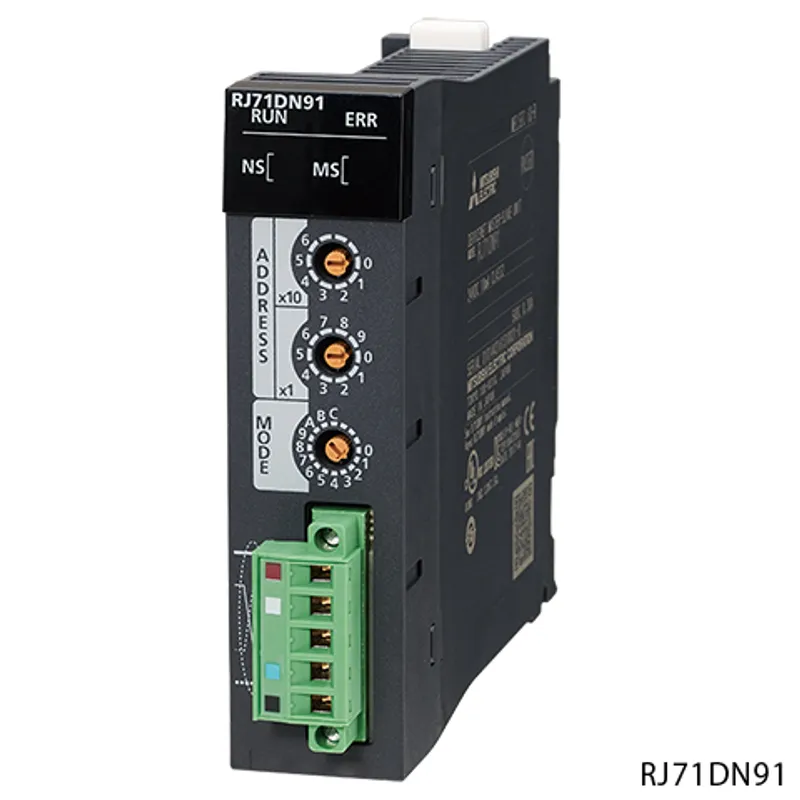

Mitsubishi Electric RJ71DN91
Mitsubishi MELSEC iQ-R Series DeviceNet
- MPN
- RJ71DN91
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric RJ71DN91?
The Mitsubishi Electric RJ71DN91 is a deviceNet in the MELSEC iQ-R Series. DeviceNet ® system compatible, master/slave. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | DeviceNet |
| Outline | DeviceNet ® system compatible, master/slave |
Specifications
| Master function: Node type | DeviceNet master (Group 2 only client) |
| Master function: Node No. | 0...63 |
| Master function: Number of connections: Message connection | 63 |
| Master function: Number of connections: I/O connection | 63 (polling, bit strobe, change of state, cyclic) |
| Master function: Communication data size: I/O communication (Send) | Maximum 4096 points (512 bytes), maximum 256 bytes per node |
| Master function: Communication data size: I/O communication (Receive) | Maximum 4096 points (512 bytes), maximum 256 bytes per node |
| Master function: Communication data size: Message communication (Send) | Maximum 240 bytes |
| Master function: Communication data size: Message communication (Receive) | Maximum 240 bytes |
| Slave function: Node type | DeviceNet slaves (Group 2 server) |
| Slave function: Node No. | 0...63 |
| Slave function: Number of connections: I/O connection | 1 (polling) |
| Slave function: Communication data size: I/O communication (Send) | Maximum 1024 points (128 bytes) |
| Slave function: Communication data size: I/O communication (Receive) | Maximum 1024 points (128 bytes) |
| Communication speed | Selectable from 125 kbaud, 250 kbaud and 500 kbaud. |
| Maximum cable length | The maximum cable length complies with THE CIP NETWORKS LIBRARY Volume 3 DeviceNet Adaptation of CIP Edition 1.14. |
| Current consumption required on the network | 5 mA |
| Number of occupied I/O points | 32 points |
| Internal current consumption (5 V DC) | 0.30 A |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 118.5 mm |
| Weight | 0.15 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MELSEC iQ-R DeviceNet Master/Slave Module User's Manual (Startup) (SH-081765ENG-C)
- MELSEC iQ-R DeviceNet Master/Slave Module User's Manual (Application) (SH-081767ENG-E)
- MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)
- MELSEC iQ-R DeviceNet Master/Slave Module Function Block Reference (BCN-P5999-0842-C)
- Before Using the Product (BCN-P5999-0840E-B)
- Safety Guidelines (IB-0800525E-AC)
