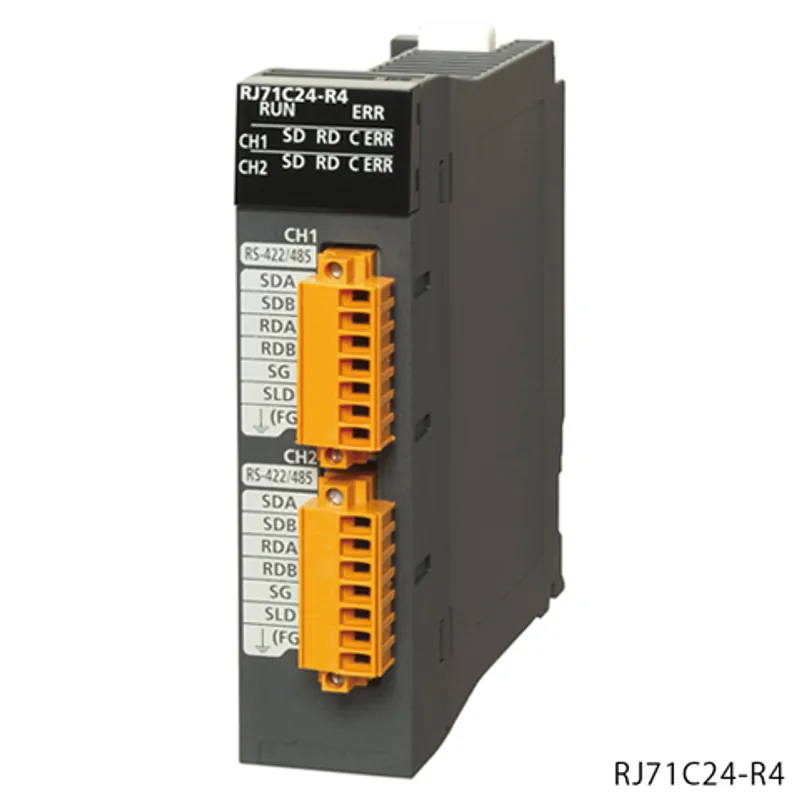

What is the Mitsubishi Electric RJ71C24-R4?

The Mitsubishi Electric RJ71C24-R4 is a MODBUS in the MELSEC iQ-R Series. RS-422/485: 2 channels, transmission speed: 230.4 kbps with 2 channels. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMODBUS
TypeRS-422/485
OutlineRS-422/485: 2 channels, transmission speed: 230.4 kbps with 2 channels

Specifications

Interface: CH1RS-422/485-compliance (2-piece plug-in connector socket block)
Interface: CH2RS-422/485-compliance (2-piece plug-in connector socket block)
Communication method: LineFull-duplex/half-duplex communications
Communication method: MC protocol communicationHalf-duplex communications
Communication method: Predefined protocol communicationFull-duplex/half-duplex communications
Communication method: Nonprocedural protocol communicationFull-duplex/half-duplex communications
Communication method: Bidirectional protocol communicationFull-duplex/half-duplex communications
Communication method: MODBUS communicationHalf-duplex communications
Communication method: Simple CPU communicationFull-duplex/half-duplex communications
Synchronization methodStart-stop synchronization method
Transmission speed1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400 bps
Transmission distance: RS-422/485Maximum 1200 m (overall distance)
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bits1 (vertical parity) or none
Data format: Stop bits1/2
Access cycle: MC protocol communicationProcesses one request during the END processing of the CPU module of the station with the C24.
Access cycle: Predefined protocol communicationSends or receives data when requested with the dedicated instruction.
Access cycle: Nonprocedural protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: Bidirectional protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: MODBUS communicationProcesses one request during the END processing of the CPU module of the station with the C24.
Access cycle: Simple CPU communicationProcesses one request at a fixed cycle or on request.
Error detection: MC protocol communication: Parity checkEnabled
Error detection: MC protocol communication: Sum checkEnabled
Error detection: MC protocol communication: Horizontal parityDisabled
Error detection: MC protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: MC protocol communication: LRC (for MODBUS)Disabled
Error detection: Predefined protocol communication: Parity checkEnabled
Error detection: Predefined protocol communication: Sum checkEnabled
Error detection: Predefined protocol communication: Horizontal parityEnabled
Error detection: Predefined protocol communication: 16-bit CRC (for MODBUS)Enabled
Error detection: Predefined protocol communication: LRC (for MODBUS)Disabled
Error detection: Nonprocedural protocol communication: Parity checkEnabled
Error detection: Nonprocedural protocol communication: Sum checkEnabled
Error detection: Nonprocedural protocol communication: Horizontal parityEnabled
Error detection: Nonprocedural protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: Nonprocedural protocol communication: LRC (for MODBUS)Disabled
Error detection: Bidirectional protocol communication: Parity checkEnabled
Error detection: Bidirectional protocol communication: Sum checkEnabled
Error detection: Bidirectional protocol communication: Horizontal parityDisabled
Error detection: Bidirectional protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: Bidirectional protocol communication: LRC (for MODBUS)Disabled
Error detection: MODBUS communication: Parity checkEnabled
Error detection: MODBUS communication: Sum checkDisabled
Error detection: MODBUS communication: Horizontal parityDisabled
Error detection: MODBUS communication: 16-bit CRC (for MODBUS)Enabled (RTU)
Error detection: MODBUS communication: LRC (for MODBUS)Enabled (ASCII)
Error detection: Simple CPU communication: Parity checkEnabled
Error detection: Simple CPU communication: Sum checkEnabled
Error detection: Simple CPU communication: Horizontal parityDisabled
Error detection: Simple CPU communication: 16-bit CRC (for MODBUS)Enabled (RTU)
Error detection: Simple CPU communication: LRC (for MODBUS)Enabled (ASCII)
Transmission control: RS-422/485: DTR/DSR controlDisabled
Transmission control: RS-422/485: RS/CS controlDisabled
Transmission control: RS-422/485: CD (DCD) signal controlDisabled
Transmission control: RS-422/485: DC1/DC3 (Xon/Xoff) controlEnabled
Transmission control: RS-422/485: DC2/DC4 controlEnabled
Line configuration for connection (Target device side : CPU module side): RS-422/4851:1,1:n,n:1,m:n (The total number of 'n' or 'm+n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: MC protocol communication1:1,1:n,m:n (The total number of 'n' or 'm+n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Predefined protocol communication1:1,n:1 (The total number of 'n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Nonprocedural protocol communication1:1, 1:n, n:1 (The total number of 'n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Bidirectional protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-422/485: MODBUS communication1:1, 1:n (The total number of 'n' is up to 32.)
Line configuration for data communication (Target device side : CPU module side): RS-422/485: Simple CPU communication1:1, 1:n (The total number of 'n' is up to 32.)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.42 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
