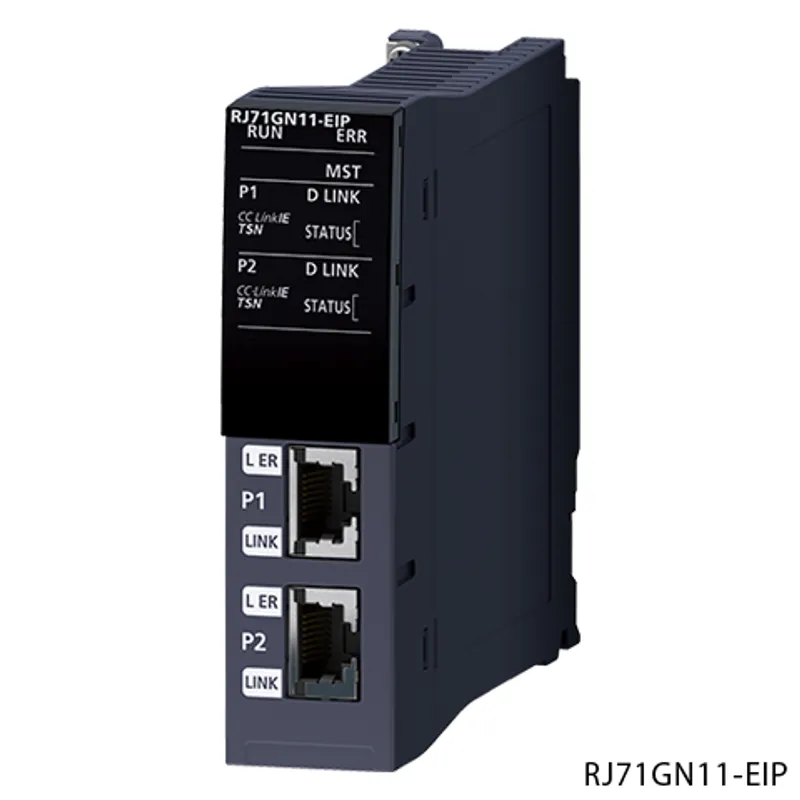

RJ71GN11-EIP Mitsubishi MELSEC iQ-R Series CC-Link IE TSN

MPN: RJ71GN11-EIP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Information/network
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RJ71GN11-EIP be shipped?

RJ71GN11-EIP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71GN11-EIP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71GN11-EIP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71GN11-EIP, subject to availability and destination.

The Mitsubishi Electric RJ71GN11-EIP is a CC-Link IE TSN in the MELSEC iQ-R Series. CC-Link IE TSN manager/local station, EtherNet/IP™-compatible. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	CC-Link IE TSN
Outline	CC-Link IE TSN manager/local station, EtherNet/IP™-compatible

performance specifications of CC-Link IE TSN

Maximum number of link points per network: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per network: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per network: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per network: LB	32K points (32768 points, 4K bytes) When the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per network: LW	16K points (16384 points, 32K bytes) When the number of link points is extended: 512K points (524288 points, 1024K bytes)
Maximum number of link points per station: Manager station and local stations: RX	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station and local stations: RY	16K points (16384 points, 2K bytes)
Maximum number of link points per station: Manager station and local stations: RWr	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station and local stations: RWw	8K points (8192 points, 16K bytes)
Maximum number of link points per station: Manager station and local stations: LB	32K points (32768 points, 4K bytes) When the number of link points is extended: 128K points (131072 points, 16K bytes)
Maximum number of link points per station: Manager station and local stations: LW	16K points (16384 points, 32K bytes) When the number of link points is extended: 512K points (524288 points, 1024K bytes)
Transient transmission capacity	Maximum 1920 bytes
Communication speed	1 Gbps/100 Mbps
Minimum synchronization cycle	125.00 µs
CC-Link IE TSN Class	CC-Link IE TSN Class B
CC-Link IE TSN protocol version	Protocol version 2.0/1.0
Maximum number of connectable CC-Link IE TSN Communication Software	2
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.)
Communication cable	Ethernet cable which satisfies 1000BASE-T standard: Category 5e or higher, straight cable (double shielded, STP)
Maximum station-to-station distance	100 m
Overall cable distance: Line topology	12000 m (when 121 stations are connected)
Overall cable distance: Others	Depends on the system configuration
Maximum number of connectable stations	121 stations (manager station: 1, device station: 120, extension modules included)
Maximum number of networks	239
Communication method	Time sharing method
Multicast filter	Available
Number of extension modules per main module	7

performance specifications of EtherNet/IP

EtherNet/IP communications: Class 1 communications: Communication format	Instance communications, tag communications
EtherNet/IP communications: Class 1 communications: Number of connections	• Instance communications: 256 • Tag communications: 256
EtherNet/IP communications: Class 1 communications: Communication data size	1444 bytes (per connection)
EtherNet/IP communications: Class 1 communications: Connection type	Point-to-point, multicast
EtherNet/IP communications: Class 1 communications: RPI (communication cycle)	0.5...60000 ms
EtherNet/IP communications: Class 1 communications: PPS (communication processing performance)	12000 PPS (PPS: Number of frames that can be processed per second)
EtherNet/IP communications: Class 3 communications: Communication format	Message communications, tag communications
EtherNet/IP communications: Class 3 communications: Number of connections	• Server: 96 • Client: 256
EtherNet/IP communications: Class 3 communications: Communication data size	• Message communications: 1404 bytes (per connection) • Tag communications: 496 bytes (per connection)
EtherNet/IP communications: Class 3 communications: Connection type	Point-to-point
EtherNet/IP communications: UCMM communications: Communication format	Message communications, tag communications
EtherNet/IP communications: UCMM communications: Number of connections (number of simultaneous executions)	• Server: 96 • Client: 32
EtherNet/IP communications: UCMM communications: Communication data size	• Message communications: 504 bytes (including headers) • Tag communications: 498 bytes
EtherNet/IP communications: UCMM communications: Connection type	Point-to-point
Ethernet: Network topology	Line topology (only the end can be connected) and star topology
Ethernet: Maximum data size of all connections	369664 bytes (361K bytes)
Ethernet: Data transmission speed	100 Mbps (100BASE-TX)/1 Gbps (1000BASE-T)
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Data transmission speed [bps]	• 1 Gbps • 100 Mbps
Transmission specifications: Maximum segment length	100 m (distance between an industrial switch and a station)
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: IP version	Compatible with IPv4
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Jumbo frame	Not available
Transmission specifications: SNMP *1: Version	v2c
Transmission specifications: SNMP *1: Supported MIB	MIB-II (RFC1213)
Sending/receiving data storage memory: System connections: Connection with MELSOFT product	• Connection to P1: Up to 8
Sending/receiving data storage memory: System connections: Connection to SLMP-compatible devices	• Connection to P1: Up to 8 • Connection to P2: Up to 8
Sending/receiving data storage memory: User connections: Socket communications	• Connection to P1: 2046 bytes x 8 • Connection to P2: 10238 bytes x 8
Number of occupied I/O points	32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)	1.54 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.26 kg

Specifications

General specifications

Refer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R CC-Link IE TSN Plus Master/Local Module User's Manual (SH-082472ENG-J)	PDF · 74.58MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R Ethernet, CC-Link IE, and MELSECNET/H Function Block Reference (BCN-P5999-0381-V)	PDF · 6.89MB
MELSEC iQ-R Inter-Module Synchronization Function Reference Manual (SH-081401ENG-U)	PDF · 8.47MB
Before Using the Product (BCN-P5999-1529)	PDF · 0.15MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
