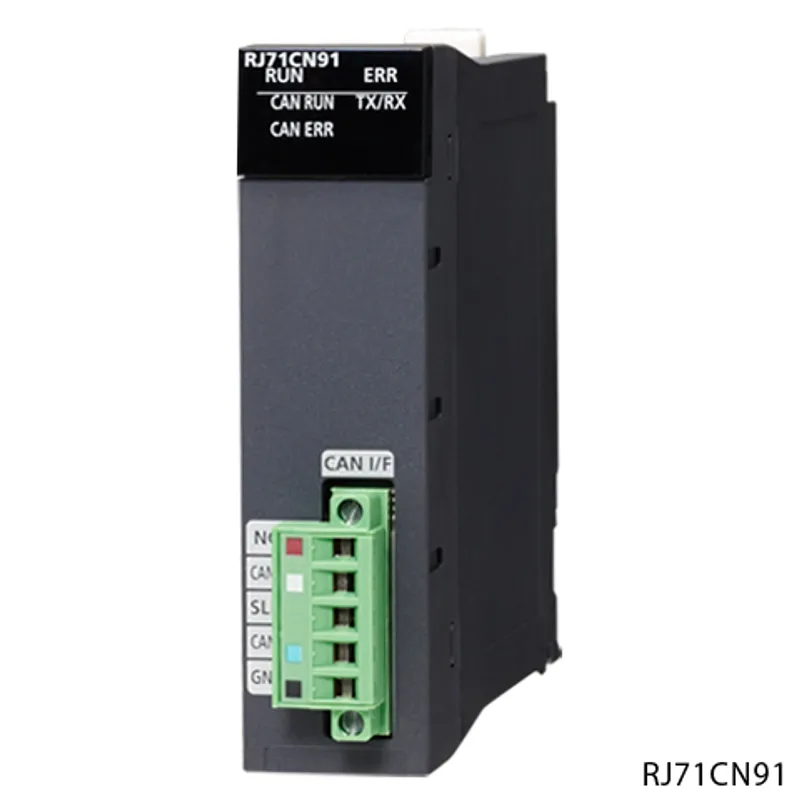

What is the Mitsubishi Electric RJ71CN91?

The Mitsubishi Electric RJ71CN91 is a CANopen in the MELSEC iQ-R Series. CANopen405 mode, 11 bit CAN-ID layer 2 message mode, 29 bit CAN-ID layer 2 message mode. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryCANopen
OutlineCANopen405 mode, 11 bit CAN-ID layer 2 message mode, 29 bit CAN-ID layer 2 message mode

Specifications

Transmission typeCAN bus network
Applicable function• CANopen node • CAN node
CANopen communication services that are compliant with the CiA standards• CiA-301 V4.2 • CiA-302 V4.1 • CiA-305 V2.2
CANopen device/application profiles that are compliant with the CiA standardsInterface and device profile CiA-405 V2.0 for IEC 61131-3 programmable devices
Remote transmit request (RTR)• CANopen 405 mode: Not supported for PDO • 11-bit CAN-ID Layer 2 message mode and 29-bit CAN-ID Layer 2 message mode: Supported
Amount of communication data (CANopen 405 mode): TPDO4 words x 256
Amount of communication data (CANopen 405 mode): RPDO4 words x 256
Frame format (11-bit CAN-ID Layer 2 message mode, 29-bit CAN-ID Layer 2 message mode)The standard format (11-bit CAN-ID) or extended format (29-bit CAN-ID) can be selected.
Node IDSelectable from 1 to 127
Communication methodAcyclic, cyclic, or event-driven
Baud rate1 Mbps/800 kbps/500 kbps/250 kbps/125 kbps/100 kbps/50 kbps/20 kbps/10 kbps
Maximum cable length• 5000 m (when used at 10 kbps) • 2500 m (when used at 20 kbps) • 1000 m (when used at 50 kbps) • 600 m (when used at 100 kbps) • 500 m (when used at 125 kbps) • 250 m (when used at 250 kbps) • 100 m (when used at 500 kbps) • 50 m (when used at 800 kbps) • 25 m (when used at 1 Mbps)
Communication cableThe CAN bus cable should conform to ISO 11898.
External interfaceTwo-piece pluggable terminal block
Number of occupied I/O points32 points
Internal current consumption (5 V DC)0.33 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth118.5 mm
Weight0.14 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
