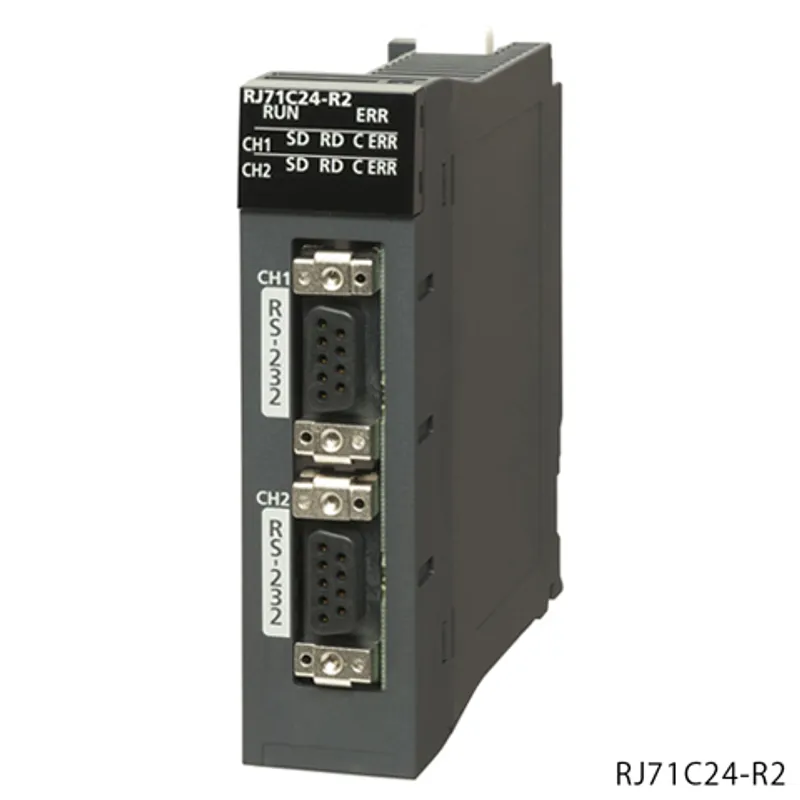

What is the Mitsubishi Electric RJ71C24-R2?

The Mitsubishi Electric RJ71C24-R2 is a MODBUS in the MELSEC iQ-R Series. RS-232: 2 channels, transmission speed: 230.4 kbps with 2 channels. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMODBUS
TypeRS-232
OutlineRS-232: 2 channels, transmission speed: 230.4 kbps with 2 channels

Specifications

Interface: CH1RS-232-compliance (D-sub 9 pin)
Interface: CH2RS-232-compliance (D-sub 9 pin)
Communication method: LineFull-duplex/half-duplex communications
Communication method: MC protocol communicationHalf-duplex communications
Communication method: Predefined protocol communicationFull-duplex/half-duplex communications
Communication method: Nonprocedural protocol communicationFull-duplex/half-duplex communications
Communication method: Bidirectional protocol communicationFull-duplex/half-duplex communications
Communication method: MODBUS communicationHalf-duplex communications
Communication method: Simple CPU communicationFull-duplex/half-duplex communications
Synchronization methodStart-stop synchronization method
Transmission speed1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57600, 115200, 230400 bps
Transmission distance: RS-232Maximum 15 m
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bits1 (vertical parity) or none
Data format: Stop bits1/2
Access cycle: MC protocol communicationProcesses one request during the END processing of the CPU module of the station with the C24.
Access cycle: Predefined protocol communicationSends or receives data when requested with the dedicated instruction.
Access cycle: Nonprocedural protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: Bidirectional protocol communicationSends each time a send request is issued. Can receive at any time.
Access cycle: MODBUS communicationProcesses one request during the END processing of the CPU module of the station with the C24.
Access cycle: Simple CPU communicationProcesses one request at a fixed cycle or on request.
Error detection: MC protocol communication: Parity checkEnabled
Error detection: MC protocol communication: Sum checkEnabled
Error detection: MC protocol communication: Horizontal parityDisabled
Error detection: MC protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: MC protocol communication: LRC (for MODBUS)Disabled
Error detection: Predefined protocol communication: Parity checkEnabled
Error detection: Predefined protocol communication: Sum checkEnabled
Error detection: Predefined protocol communication: Horizontal parityEnabled
Error detection: Predefined protocol communication: 16-bit CRC (for MODBUS)Enabled
Error detection: Predefined protocol communication: LRC (for MODBUS)Disabled
Error detection: Nonprocedural protocol communication: Parity checkEnabled
Error detection: Nonprocedural protocol communication: Sum checkEnabled
Error detection: Nonprocedural protocol communication: Horizontal parityEnabled
Error detection: Nonprocedural protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: Nonprocedural protocol communication: LRC (for MODBUS)Disabled
Error detection: Bidirectional protocol communication: Parity checkEnabled
Error detection: Bidirectional protocol communication: Sum checkEnabled
Error detection: Bidirectional protocol communication: Horizontal parityDisabled
Error detection: Bidirectional protocol communication: 16-bit CRC (for MODBUS)Disabled
Error detection: Bidirectional protocol communication: LRC (for MODBUS)Disabled
Error detection: MODBUS communication: Parity checkEnabled
Error detection: MODBUS communication: Sum checkDisabled
Error detection: MODBUS communication: Horizontal parityDisabled
Error detection: MODBUS communication: 16-bit CRC (for MODBUS)Enabled (RTU)
Error detection: MODBUS communication: LRC (for MODBUS)Enabled (ASCII)
Error detection: Simple CPU communication: Parity checkEnabled
Error detection: Simple CPU communication: Sum checkEnabled
Error detection: Simple CPU communication: Horizontal parityDisabled
Error detection: Simple CPU communication: 16-bit CRC (for MODBUS)Enabled (RTU)
Error detection: Simple CPU communication: LRC (for MODBUS)Enabled (ASCII)
Transmission control: RS-232: DTR/DSR controlEnabled
Transmission control: RS-232: RS/CS controlEnabled
Transmission control: RS-232: CD (DCD) signal controlEnabled
Transmission control: RS-232: DC1/DC3 (Xon/Xoff) controlEnabled
Transmission control: RS-232: DC2/DC4 controlEnabled
Line configuration for connection (Target device side : CPU module side): RS-2321:1
Line configuration for data communication (Target device side : CPU module side): RS-232: MC protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Predefined protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Nonprocedural protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Bidirectional protocol communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: MODBUS communication1:1
Line configuration for data communication (Target device side : CPU module side): RS-232: Simple CPU communication1:1
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.20 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.14 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RJ71C24-R2: frequently asked questions

When can RJ71C24-R2 be shipped?

RJ71C24-R2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71C24-R2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71C24-R2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71C24-R2, subject to availability and destination.
