What is the Mitsubishi Electric RJ71BR11?

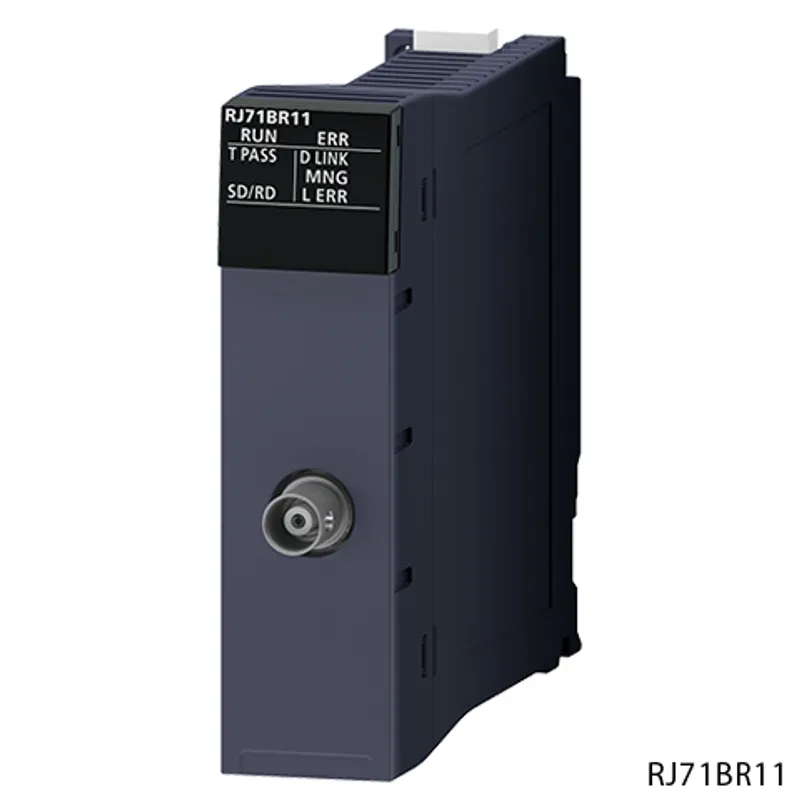

The Mitsubishi Electric RJ71BR11 is a MELSECNET/H in the MELSEC iQ-R Series. MELSECNET/H PLC to PLC network, control/normal station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB/S-5C-FB coaxial cables, transmission path format: Single bus. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMELSECNET/H
TypeCoaxial bus
OutlineMELSECNET/H PLC to PLC network, control/normal station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB/S-5C-FB coaxial cables, transmission path format: Single bus

Specifications

Maximum number of link points per network: LB16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LX8192 points
Maximum number of link points per network: LY8192 points
Maximum number of link points per station: LB, LW, LX, LY• MELSECNET/H mode, MELSECNET/10 mode: {(LY+LB)/8+(2×LW)}≦2000 bytes • MELSECNET/H Extended mode: {(LY+LB)/8+(2×LW)}≦35840 bytes
Communication speed10 Mbps
Maximum number of connectable stations32 stations (Control station: 1, Normal stations: 31)
Communication cableCoaxial cables: 3C-2V, 5C-2V (JIS C 3501 compliant), 5C-FB, S-5C-FB (JIS C 3502 compliant)
Applicable connectorConnector plug for 3C-2V Connector plug for 5C-2V Connector plug for 5C-FB Connector plug for S-5C-FB
Overall cable distance3C-2V: 300 m 5C-2V: 500 m 5C-FB, S-5C-FB: 500 m Can be extended up to 2.5 km with the use of a repeater unit (A6BR10, A6BR10-DC)
Maximum station-to-station distance3C-2V: 300 m 5C-2V: 500 m 5C-FB, S-5C-FB: 500 m
Maximum number of networks239
Maximum number of groups32 (MELSECNET/10 mode: 9)
Network topologySingle bus
Communication methodToken bus
Transient transmission capacity1920 bytes maximum (MELSECNET/10 mode: 960 bytes maximum)
Number of occupied I/O points32 points
Internal current consumption (5 V DC)0.62 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.14 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

RJ71BR11: frequently asked questions

When can RJ71BR11 be shipped?

RJ71BR11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71BR11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71BR11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71BR11, subject to availability and destination.
