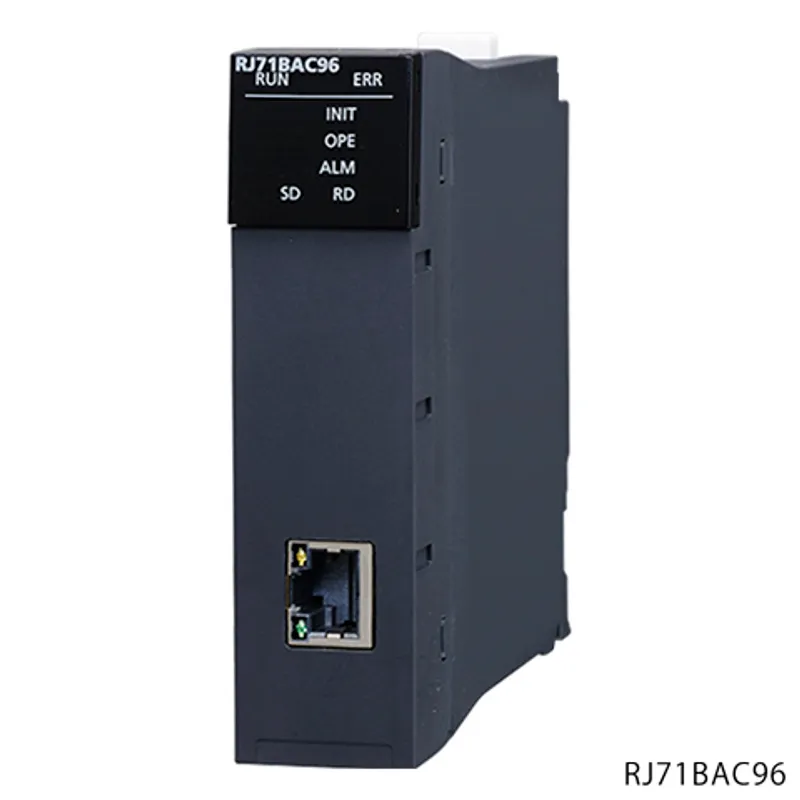

Mitsubishi Electric RJ71BAC96

Mitsubishi MELSEC iQ-R Series BACnet

MPN
RJ71BAC96
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RJ71BAC96?

The Mitsubishi Electric RJ71BAC96 is a BACnet in the MELSEC iQ-R Series. BACnet ® controller/BACnet ® work station, Powered by UNITEC Corp. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryBACnet
OutlineBACnet ® controller/BACnet ® work station, Powered by UNITEC Corp.

Specifications

Transmission specifications: Data transmission speed100/10 Mbps
Transmission specifications: Communication modeFull-duplex/Half-duplex
Transmission specifications: Transmission methodBase band
Transmission specifications: Maximum segment length100 m (length between hub and node)
Transmission specifications: IP versionIPv6/IPv4
BACnet specifications: Number of registrable input/output objects4000 Instance
BACnet specifications: Number of registrable CA objects300 Instance
BACnet specifications: Number of registrable SC objects100 Instance
BACnet specifications: Number of registrable TL objects200 Instance
BACnet specifications: Number of registrable NC objects50 Instance
BACnet specifications: Number of registrable access blocks for reading2176 points in total
BACnet specifications: Number of registrable access blocks for writing2176 points in total
BACnet specifications: Number of registrable access blocks for BACnet monitoring10000 points in total
BACnet specifications: Number of registrable access blocks for COV interaction10000 points in total
BACnet specifications: Number of registrable access blocks for Event interaction10000 points in total
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.61 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width27.8 mm
External dimensions: Depth110 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

RJ71BAC96: frequently asked questions

When can RJ71BAC96 be shipped?

RJ71BAC96 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ71BAC96 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ71BAC96 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ71BAC96, subject to availability and destination.
