Mitsubishi Electric RJ61BT11
Mitsubishi MELSEC iQ-R Series CC-Link
- MPN
- RJ61BT11
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric RJ61BT11?

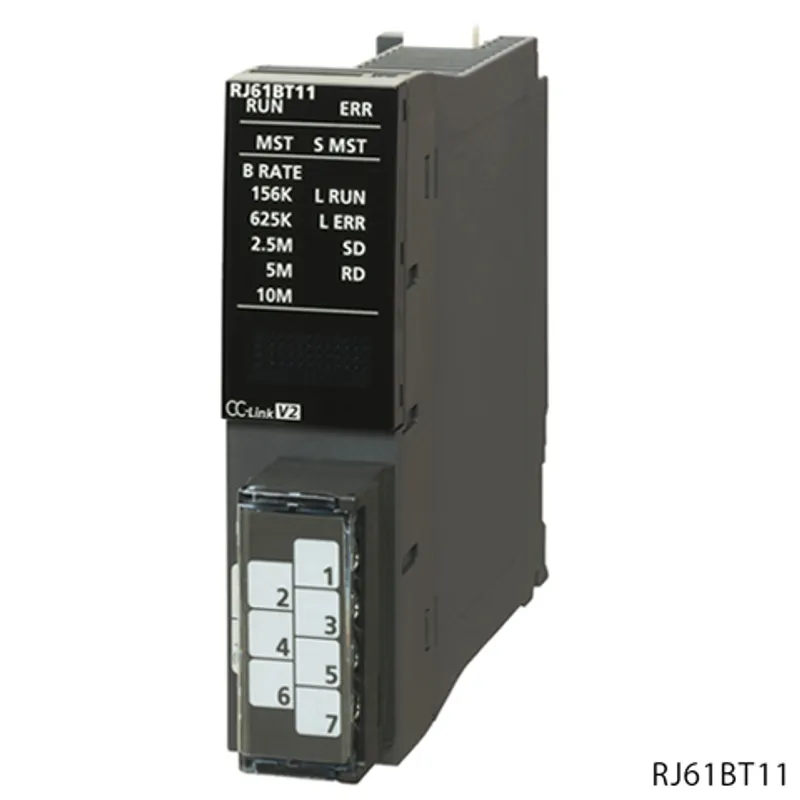

The Mitsubishi Electric RJ61BT11 is a CC-Link in the MELSEC iQ-R Series. CC-Link Ver.2 compatible manager/local station. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-R Series |
| Category | CC-Link |
| Outline | CC-Link Ver.2 compatible manager/local station |
Specifications
| Transmission speed | 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable) |
| Station type | Manager station (Ver. 1 manager station or Ver. 2 manager station) Local station (Ver. 1 local station or Ver. 2 local station) |
| Maximum number of connected stations: Manager station | 64 stations |
| Number of occupied stations: Local station | 1...4 stations |
| Maximum number of link points per system: CC-Link Ver.1 | Remote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points |
| Maximum number of link points per system: CC-Link Ver.2 | Remote I/O (RX, RY) : 8192 points Remote register (RWw) : 2048 points Remote register (RWr) : 2048 points |
| Number of link points per station: CC-Link Ver.1 | Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points |
| Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Single | Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points |
| Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Double | Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 8 points Remote register (RWr) : 8 points |
| Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Quadruple | Remote I/O (RX, RY) : 64 points (local station is 62 points) Remote register (RWw) : 16 points Remote register (RWr) : 16 points |
| Number of link points per station: CC-Link Ver.2: Expanded cyclic setting: Octuple | Remote I/O (RX, RY) : 128 points (local station is 126 points) Remote register (RWw) : 32 points Remote register (RWr) : 32 points |
| Communication method | Broadcast polling method |
| Synchronization method | Frame synchronization method |
| Encoding method | NRZI method |
| Network topology | Bus (RS-485) |
| Transmission format | HDLC compliant |
| Error control system | CRC (X 16 + X 12 + X 5 + 1) |
| Communication cable | Ver.1.10 compatible CC-Link dedicated cable |
| Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps | 1200 m |
| Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps | 900 m |
| Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps | 400 m |
| Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps | 160 m |
| Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps | 100 m |
| Number of occupied I/O points | 32 points |
| Internal current consumption (5 V DC) | 0.34 A |
| External dimensions: Height | 106 mm (base unit mounting side: 98 mm) |
| External dimensions: Width | 27.8 mm |
| External dimensions: Depth | 131 mm |
| Weight | 0.16 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MELSEC iQ-R CC-Link System Master/Local Module User's Manual (Startup) (SH-081269ENG-G)
- MELSEC iQ-R CC-Link System Master/Local Module User's Manual (Application) (SH-081270ENG-J)
- MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)
- MELSEC iQ-R CC-Link System Master/Local Module Function Block Reference (BCN-P5999-0380-G)
- Before Using the Product (BCN-P5999-0076E-C)
- Safety Guidelines (IB-0800525E-AC)
