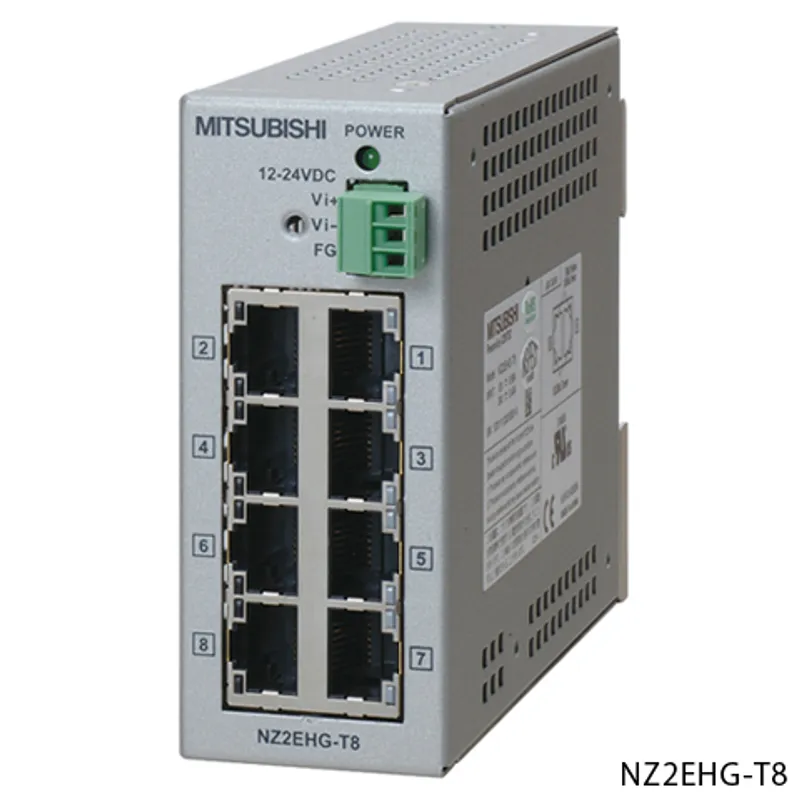

NZ2EHG-T8 Mitsubishi MELSEC network modules Option
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2EHG-T8 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link IE Control |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the NZ2EHG-T8 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2EHG-T8, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NZ2EHG-T8 be shipped?
NZ2EHG-T8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NZ2EHG-T8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NZ2EHG-T8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EHG-T8, subject to availability and destination.
The Mitsubishi Electric NZ2EHG-T8 is a option in the MELSEC network modules. 10 Mbps/100 Mbps/1000 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function, automatic power adjustment function Powered by CONTEC. Mitsubishi Electric has discontinued it (2016/01 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Option |
| Type | Twisted-pair cable |
| Subtype | Industrial switching hub |
| Sales status | 2016/01 Discontinued (Mitsubishi Electric) |
| Outline | 10 Mbps/100 Mbps/1000 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function, automatic power adjustment function Powered by CONTEC |
Specifications
| Ethernet standards | IEEE802.3/IEEE802.3u /IEEE802.3ab –compliant |
| Data communication rate | 10 Mbps/100 Mbps/1000 Mbps (auto-recognition) |
| Access method | CSMA/CD |
| Communication method | All ports: Full/Half duplex (auto-recognition) |
| Topology | Star topology |
| Flow control | Full Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure |
| Number of effective ports | 8 |
| Switching method | Store and forward |
| Address table | 8192 entries |
| Jumbo frame | 9.6K bytes |
| Buffer capacity | 176K bytes |
| Aging time | 300 s maximum |
| LED indicator | POWER (Green), LINK/ACT 10M (Yellow), LINK/ACT 100M (Green), LINK/ACT 1000M (Green) |
| Rated input voltage | 12...24 V DC ±5 % |
| FG terminal | The power connector is equipped with FG terminal. |
| Power consumption | 0.60 A at 12 V DC, 0.40 A at 24 V DC |
| External dimensions: Height | 94 mm |
| External dimensions: Width | 39 mm |
| External dimensions: Depth | 120 mm |
| Weight | 0.36 kg |
| Installation method | Onto a DIN rail or on the wall |
Specifications
| Operating ambient temperature | 0...50 ˚C |
| Storage ambient temperature | -10...60 ˚C |
| Operating ambient humidity | 10...90 %RH, non-condensing |
| Floating dust particles | Tolerant of small amounts (non excessive) |
| Corrosive gases | None |
| Vibration resistance: Sweep resistance | 10 to 57 Hz/ half amplitude 0.15 mm, 57 to 150 Hz/2.0 G 40 minutes each in X, Y, and Z directions (JIS C 60068-2-6-compliant, IEC 60068-2-6-compliant) |
| Shock resistance | 15G, sine half-wave pulse for 11ms each in X, Y, and Z directions (JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant) |
| Grounding | Ground the FG terminal to the protective ground conductor. |
| Installation location | Inside a control panel |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| 10/100/1000M Industrial Switching HUB NZ2EHG-T8 User's Manual (IB-0800460E-C) | PDF · 1.26MB |
