Mitsubishi Electric NZ2EHF-T8

Mitsubishi MELSEC network modules Option

MPN
NZ2EHF-T8
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2EHF-T8 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

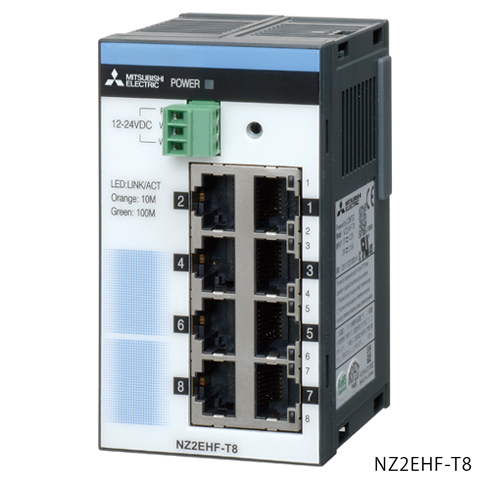

What is the Mitsubishi Electric NZ2EHF-T8?

The Mitsubishi Electric NZ2EHF-T8 is a option in the MELSEC network modules. 10 Mbps/100 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function Powered by CONTEC. Mitsubishi Electric has discontinued it (2018/10 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryOption
TypeIndustrial switching hub
Subtype100BASE-TX/10BASE-T
Sales status2018/10 Discontinued (Mitsubishi Electric)
Outline10 Mbps/100 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function Powered by CONTEC

Specifications

Ethernet standardsIEEE802.3/IEEE802.3u -compliant
Data communication rate10 Mbps/100 Mbps (auto-recognition)
Access methodCSMA/CD
Communication methodAll ports: Full/Half duplex (auto-recognition)
TopologyStar topology
Flow controlFull Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure
Number of effective ports8
Switching methodStore and forward
Address table1024 entries
Buffer capacity512K bytes
Aging time200...300 s
LED indicatorPOWER (green) , Link/ACT 10M (orange) , Link/ACT 100M (green)
Rated input voltage12...24 V DC ±5 %
FG terminalThe power connector is equipped with FG terminal.
Power consumption0.22 A at 12 V DC, 0.15 A at 24 V DC
External dimensions: Height94 mm
External dimensions: Width52.4 mm
External dimensions: Depth64.7 mm
Weight0.16 kg
Installation methodOnto a DIN rail

Specifications

Operating ambient temperature0...50 ˚C
Storage ambient temperature-10...60 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Floating dust particlesTolerant of small amounts (non excessive)
Corrosive gasesNone
Vibration resistance: Sweep resistance10 to 57 Hz/ half amplitude 0.15 mm, 57 to 150 Hz/2.0 G 40 minutes each in X, Y, and Z directions (JIS C 60068-2-6-compliant, IEC 60068-2-6-compliant)
Shock resistance15G, sine half-wave pulse for 11ms each in X, Y, and Z directions (JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant)
GroundingGround the FG terminal to the protective ground conductor.
Installation locationInside a control panel

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2EHF-T8: frequently asked questions

Can I still buy the NZ2EHF-T8 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2EHF-T8, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2EHF-T8 be shipped?

NZ2EHF-T8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2EHF-T8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2EHF-T8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EHF-T8, subject to availability and destination.
