Mitsubishi MELSEC network modules – CC-Link IE Control Parts

Showing 1–9 of 9 parts
Mitsubishi Electric NZ2EHG-T8 – Mitsubishi MELSEC network modules Option
Mitsubishi Electric
NZ2EHG-T8

Mitsubishi MELSEC network modules Option

Mitsubishi Electric NZ2EHG-T8N – Mitsubishi MELSEC network modules Option
Mitsubishi Electric
NZ2EHG-T8N

Mitsubishi MELSEC network modules Option

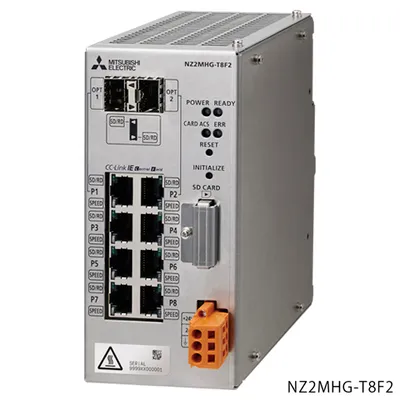

Mitsubishi Electric NZ2MHG-T8F2 – Mitsubishi MELSEC network modules Option
Mitsubishi Electric
NZ2MHG-T8F2

Mitsubishi MELSEC network modules Option

Mitsubishi Electric Q80BD-J71GP21S-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q80BD-J71GP21S-SX

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric Q80BD-J71GP21-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q80BD-J71GP21-SX

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric Q81BD-J71GP21S-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q81BD-J71GP21S-SX

Mitsubishi MELSEC network modules Network interface boards

Mitsubishi Electric Q81BD-J71GP21-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
Q81BD-J71GP21-SX

Mitsubishi MELSEC network modules Network interface boards

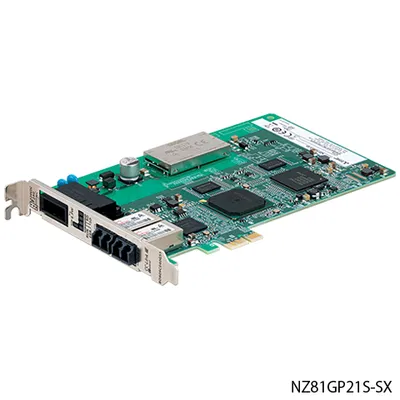

Mitsubishi Electric NZ81GP21S-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
NZ81GP21S-SX

Mitsubishi MELSEC network modules Network interface boards

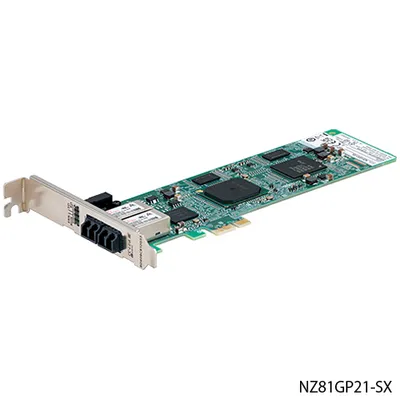

Mitsubishi Electric NZ81GP21-SX – Mitsubishi MELSEC network modules Network interface boards
Mitsubishi Electric
NZ81GP21-SX

Mitsubishi MELSEC network modules Network interface boards

Compare Mitsubishi MELSEC network modules – CC-Link IE Control

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNSubtypeWeightOperating ambient temperatureStorage ambient temperatureOperating ambient humidity
NZ2EHG-T8Industrial switching hub0.36 kg0...50 ˚C-10...60 ˚C10...90 %RH, non-condensing
NZ2EHG-T8NIndustrial switching hub0.36 kg0...50 ˚C-10...60 ˚C10...90 %RH, non-condensing
NZ2MHG-T8F2Managed CC-Link IE switch0.95 kg0...60 ˚C-25...75 ˚C5...95 %RH, non-condensing
Q80BD-J71GP21S-SXControl/normal station0.14 kg0...55 ˚C-25...75 ˚C5...95 %RH, non-condensing
Q80BD-J71GP21-SXControl/normal station0.12 kg0...55 ˚C-25...75 ˚C5...95 %RH, non-condensing
Q81BD-J71GP21S-SXControl/normal station0.14 kg0...55 ˚C-25...75 ˚C5...95 %RH, non-condensing
Q81BD-J71GP21-SXControl/normal station0.13 kg0...55 ˚C-25...75 ˚C5...95 %RH, non-condensing
NZ81GP21S-SXControl/normal station0.13 kg0 to 55℃-25 to 75℃5 to 95% RH, non-condensing
NZ81GP21-SXControl/normal station0.09 kg0 to 55℃-25 to 75℃5 to 95% RH, non-condensing

Common to all listed parts

SeriesMELSEC network modules
