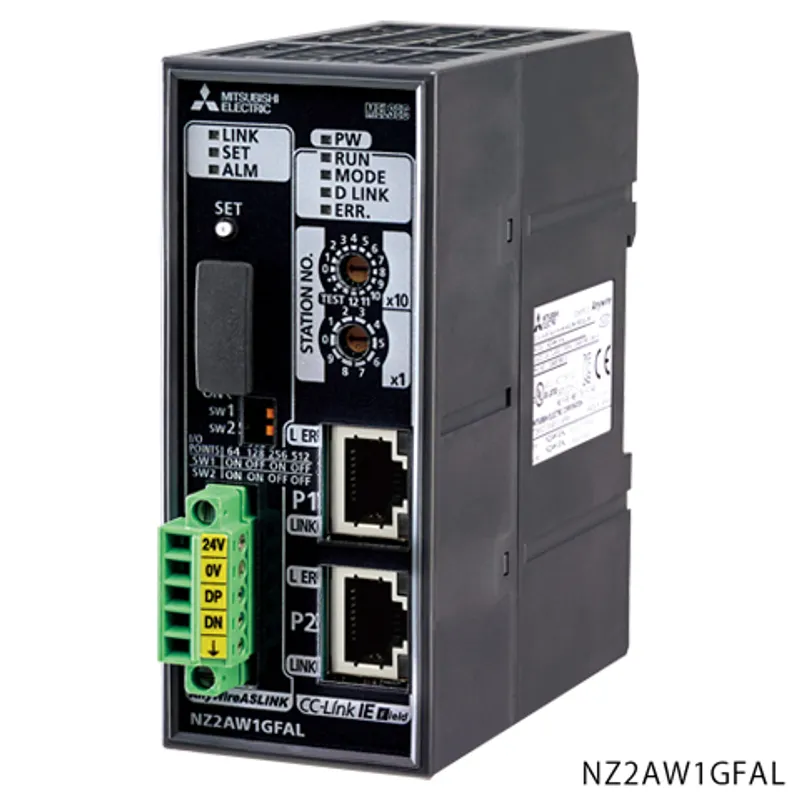

The Mitsubishi Electric NZ2AW1GFAL is a adapter/bridge in the MELSEC network modules. CC-Link IE Field Network-AnyWireASLINK bridge module, Max. remote input: 256 points, max. remote output: 256 points, Powered by Anywire. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Adapter/bridge
Type	Bridge
Subtype	AnyWire bridge
Outline	CC-Link IE Field Network-AnyWireASLINK bridge module, Max. remote input: 256 points, max. remote output: 256 points, Powered by Anywire

Specifications

CC-Link IE Field Network side: Station type	Intelligent device station
CC-Link IE Field Network side: Maximum number of link points: Remote input (RX)	2K points (2048 points, 256 bytes)
CC-Link IE Field Network side: Maximum number of link points: Remote output (RY)	2K points (2048 points, 256 bytes)
CC-Link IE Field Network side: Maximum number of link points: Remote register (RWw)	1K points (1024 words, 2K bytes)
CC-Link IE Field Network side: Maximum number of link points: Remote register (RWr)	1K points (1024 words, 2K bytes)
CC-Link IE Field Network side: Communication speed	1 Gbps
CC-Link IE Field Network side: Communication cable	Ethernet cable
CC-Link IE Field Network side: Overall cable distance	Line connection: 12000 m (when 121 modules are connected) Star connection: depends on the system configuration
CC-Link IE Field Network side: Station-to-station distance (max.)	100 m
CC-Link IE Field Network side: Network topology	Line topology, star topology
CC-Link IE Field Network side: Communication method	Token passing
AnyWireASLINK side: Transmission clock	27.0 kHz
AnyWireASLINK side: Maximum transmission distance (total length)	200 m
AnyWireASLINK side: Number of connectable modules	Up to 128 (varies depending on the current consumption of each slave module)
AnyWireASLINK side: Transmission system	DC power supply transmission total frame cyclic system
AnyWireASLINK side: Connection type	Bus topology (multidrop system, T-branch system, tree branch system)
AnyWireASLINK side: Transmission protocol	Dedicated protocol (AnyWireASLINK)
AnyWireASLINK side: Error control system	Checksum, double-check system
AnyWireASLINK side: Number of connected I/O points	Up to 512 points (input 256 points, output 256 points)
AnyWireASLINK side: Transmission cable (DP, DN)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm＾2 , 0.75 mm 2 , rated temperature 90 ˚C)
AnyWireASLINK side: Power cable (24V, 0V)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm＾2 , 0.75 mm 2 , rated temperature 90 ˚C)
AnyWireASLINK side: Power supply for transmission line	With 1.25mm 2 cable: Max. 2 A With 0.75mm 2 cable: Max. 1 A
Module power supply: Voltage	21.6...27.6 V DC (24 V DC, -10...+15 %), ripple 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
Module power supply: Current	0.3 A
External dimensions: Height	102 mm
External dimensions: Width	43 mm
External dimensions: Depth	96 mm
Weight	0.2 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
