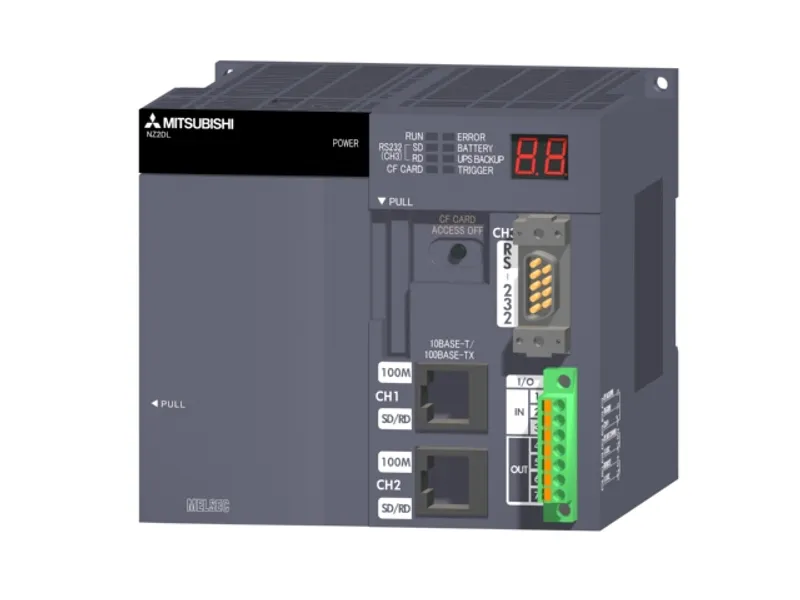

NZ2DL Mitsubishi MELSEC network modules Data logger

MPN: NZ2DL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2DL (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – Ethernet
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the NZ2DL now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2DL, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2DL be shipped?

NZ2DL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2DL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2DL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2DL, subject to availability and destination.

The Mitsubishi Electric NZ2DL is a data logger in the MELSEC network modules. 10BASE-T/100BASE-TX: 1 channel, data logging function, event logging function, report function, recipe function, connectable devices: Mitsubishi Electric programmable controllers, SIEMENS programmable controllers, Rockwell programmable controllers. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Data logger
Type	BOX data logger
Subtype	100BASE-TX/10BASE-T
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	10BASE-T/100BASE-TX: 1 channel, data logging function, event logging function, report function, recipe function, connectable devices: Mitsubishi Electric programmable controllers, SIEMENS programmable controllers, Rockwell programmable controllers

Software specifications

Data sampling: Number of access target CPUs	Maximum of 64 CPUs
Data sampling: Data sampling interval	• 0.1...0.9 s, 1...32767 s • Time interval specification (specify hour/minute/second)
Data sampling: Amount of sampled data	• Overall amount of data: maximum of 16384 (per setting: 256) • Overall number of device points: maximum of 262144 (per setting: 4096)
Data sampling: Data type	• Bit • Word (signed) • Double word (signed) • Word (unsigned) • Double word (unsigned) • Float (single precision) • Float (double precision) • 16 bit BCD • 32 bit BCD • String: 1 ... 8192 characters • Raw: 1 ... 8192 bytes
Data sampling: Data output format (CSV file)	• Bit • Decimal format: 0 to 14 digits after the decimal point • Exponential format: 0 to 14 digits after the decimal point • Hexadecimal format • String • Raw
Data sampling: Scaling	Basic arithmetic operations: calculations combining (*, /) and (+, -)
Data logging: Number of settings	Up to 64
Data logging: Logging type	• Continuous logging • Trigger logging
Data logging: File format	• CSV file (extension: CSV) • Binary file (extension: BIN)
Data logging: Period	Specify applicable period or exclusion period. • Data condition: bit ON/OFF, compare data to constant value, compare data to data • Date range: specify start and end with month and day. • Time range: specify start and end with hour, minute and second • Day of week/week condition: specify days of the week and weeks AND or OR combination of the above: up to 8 conditions
Data logging: Trigger logging: Trigger conditions	• Condition • Comparison: bit ON/OFF, compare data to constant value, compare data to data • At the time of change of value • Fixed cycle: 1...86400 s •Time interval specification: specify hour/minute/second • Time of day specification: specify month/day/hour/minute/second • At module startup AND or OR combination of the above: up to 8 conditions • Condition execution count: 3 conditions • Conditi
Data logging: Trigger logging: Number of logging lines	• Before trigger occurs: 0...65534 lines • After trigger occurs: 1...65535 lines The sum of lines of before and after trigger occurrence is up to 65535 lines.
Data logging: File switching timing	• Number of lines (number of records) specification: 100...100000 • File size specification: 10...16384K bytes • Condition specification • Comparison: bit ON/OFF, compare data to constant value, compare data to data • At the time of change of value • Fixed cycle: 1...86400 s • Time interval specification: specify hour/minute/second • Time of day specification: specify month/day/hour/minute/second
Data logging: Number of save files	1...65535
Event logging: Number of settings	Up to 64
Event logging: Number of events	Up to 64 events per single event logging setting
Event logging: File format	• CSV file (extension: CSV) • Binary file (extension: BIN)
Event logging: Event conditions	• Condition • Comparison: bit ON/OFF, compare data to constant value, compare data to data • At the time of change of value AND or OR combination of the above: up to 4 conditions • Condition execution count: 3 conditions • Condition execution order (order and/or time conditions): up to 4 conditions
Event logging: Period	Specify applicable period or exclusion period. • Data condition: bit ON/OFF, compare data to constant value, compare data to data • Date range: specify start and/or end month/day • Time range: specify start and/or end hour/minute/second • Day of week/week condition: specify days of the week and/or weeks AND or OR combination of the above: up to 8 conditions
Event logging: File switching timing	• Number of lines (number of records) specification: 100...100000 lines • File size specification: 10...16384K bytes • Condition • Comparison: bit ON/OFF, compare data to constant value, compare data to data • At the time of change of value • Fixed cycle: 1...86400 s • Time interval specification: specify hour/minute/second • Time of day specification: specify month/day/hour/minute/second • At mod
Event logging: Number of save files	1...65535
Report: Number of settings	Up to 64
Report: File format	Excel file (extension: xls)
Report: Output data type	• Data inside data logging file • Current value data • Creation time
Report: Amount of output data	64 layouts per single report setting, 65535 cells in total
Report: Creation trigger conditions	Condition: • Comparison: bit ON/OFF, compare data to constant value, compare data to data • At the time of change of value • Fixed cycle: 1...86400 s • Time interval specification: specify hour, minute and second • Time of day specification: specify month, day, hour, minute and second • At startup of module • At the time of the Data logging file is switched AND or OR combination of the above: up t
Report: Period	Specify applicable period or exclusion period. • Data condition: bit ON/OFF, compare data to constant value, compare data to data • Date range: specify start and/or end month/day • Time range: specify start and/or end hour/minute/second • Day of week/week condition: specify days of the week and/or weeks AND or OR combination of the above: up to 8 conditions
Report: Layout file size	Up to 10M bytes (total of all report settings)
Report: Number of save files	1...65535
E-mail: Application	• Notification when event occurs • Transmit saved file
E-mail: Subject	• Event notification e-mail: user specified • Saved file transmission e-mail: automatically created/user specified
E-mail: Body	• Event notification e-mail: user specified • Saved file transmission e-mail: automatically created/user specified
E-mail: Attachment	• Event notification e-mail: none • Saved file transmission e-mail: Saved file (CSV, binary, or Excel file), maximum of 512 KB
E-mail: Attachment format	MIME format
E-mail: MIME	Version 1.0
E-mail: Communication with mail server: Port number	25, 587, Others (1...65535)
E-mail: Communication with mail server: Authentication method	• No authentication • SMTP-AUTH (PLAIN, LOGIN, CRAM-MD5) • POP before SMTP
E-mail: Target address	Up to 16 groups
E-mail: Operability verified e-mail client software	• Microsoft ® Outlook ® Express 6.0 • Microsoft ® Windows ® Mail 6.0
FTP server: Application	Read and delete saved files Write, read, and delete recipe files
FTP server: Operability verified FTP client software	• Microsoft Edge ® • Windows ® Internet Explorer ® 11.0 • Windows ® Internet Explorer ® 10.0 • Windows ® Internet Explorer ® 9.0 • Windows ® Internet Explorer ® 8.0 • Windows ® Internet Explorer ® 7.0
FTP server: Session count	10
FTP client: Application	Transfer saved files
FTP client: Operability verified FTP server software	Microsoft ® Internet Information Services
Recipe: Number of data	Up to 256 data
Recipe: Number of records	Up to 256 records
Recipe: Data type	• Bit • Word [signed] • Double word [signed] • Word [unsigned] • Double word [unsigned] • FLOAT [single precision] • FLOAT [double precision] • 16bit BCD • 32bit BCD
Recipe: Recipe file	CSV file (extension: .csv) Up to 256 files Up to 512K bytes (per file)
Recipe: Execution type	Ladder, configuration tool

Hardware specifications

Ethernet: Interface	10BASE-T, 100BASE-TX
Ethernet: Data transmission speed	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)
Ethernet: Transmission method	Base band
Ethernet: Number of cascaded connections	Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet: Maximum segment length	100 m
Ethernet: Supported function	Auto-negotiation function (automatic recognition of communication speed/communication method)
Ethernet: IP version	IPv4
Serial part: Interface	Compliant with RS-232
Serial part: Synchronization method	Start-stop synchronization method
Serial part: Transmission speed	4800, 9600, 19200, 38400, 57600, 115200 bps
Serial part: Data format: Start bit	1
Serial part: Data format: Data bit	7/8
Serial part: Data format: Parity bits	1/None
Serial part: Data format: Stop bit	1/2
Serial part: Error detection: Parity check	All protocols are supported. When parity check is enabled, select odd/even number with parameter.
Serial part: Error detection: Sum check code	By communication protocol
Serial part: Transmission distance: RS-232	Up to 15 m
CompactFlash card: Supply power capacity	Maximum 150 mA
CompactFlash card: Card size	TYPE I card
CompactFlash card: Supply power voltage	3.3 V ± 5 %
CompactFlash card: Number of installable cards	1
I/O part: Input: Input point	2 points (external trigger signal input, UPS backup signal input)
I/O part: Input: Isolation method	Photocoupler insulation
I/O part: Input: Supply power voltage	24 V DC (+20/-15 %) (ripple ratio within 5 %)
I/O part: Input: Rated input current	4 mA
I/O part: Input: ON voltage/ON current	19 V or more/3 mA or more
I/O part: Input: OFF voltage/OFF current	11 V or less/1.7 mA or less
I/O part: Input: Input resistance	Approx. 5.6 kΩ
I/O part: Input: Response time	OFF to ON: 100 ms or less ON to OFF: 100 ms or less
I/O part: Input: Dielectric withstand voltage	560 V AC rms/3 cycles (altitude 2000 m)
I/O part: Input: Insulation resistance	10 MΩ or more by insulation resistance tester
I/O part: Input: Common terminal arrangement	2 points/common
I/O part: Output: Output point	2 points (error signal output, UPS shutdown signal output)
I/O part: Output: Isolation method	Photocoupler insulation
I/O part: Output: Rated load voltage	12...24 V DC (+20/-15 %)
I/O part: Output: Maximum load current	2 A/point
I/O part: Output: Maximum inrush current	8 A, 10 ms or less
I/O part: Output: Leakage current at OFF	0.1 mA or less
I/O part: Output: Surge suppressor	Zener diode
I/O part: Output: Fuse	None
I/O part: Output: Common terminal arrangement	All points independent, sink/source type
Protection degree	IP2X
Clock function: Function	Year, month, day, hour, minute, second, day of week (automatic leap year detection)
Clock function: Accuracy	Daily error: -10.89...+8.64 s (0...55 ˚C) Daily error: -4.32...+5.25 s (25 ˚C)
Module power supply: Voltage	24 V DC, -35/+30 % (15.6...31.2 V DC)
Module power supply: Current	0.43 A (at 24 V DC)
Module power supply: Inrush current	100 A, within 1 ms (at 1 ms DC input)
Module power supply: Allowable momentary power failure time	Within 10 ms (at 24 V DC input)
Withstand voltage	Between primary and 5 V DC, 500 V AC
Insulation resistance	10 MΩ or higher by insulation resistance tester
Fuse	Built-in (user-unchangeable)
Contact output section: Application	ERR. contact
Contact output section: Rated switching voltage/current	24 V DC, 0.5 A
Contact output section: Minimum switching load	5 V DC, 1 mA
Contact output section: Response time: OFF to ON	10 ms or less
Contact output section: Response time: ON to OFF	12 ms or less
Contact output section: Life: Mechanical	20 million times or more
Contact output section: Life: Electrical	Rated switching voltage/current load: More than 100 thousand times
Contact output section: Surge suppressor	None
Contact output section: Fuse	None
External dimensions: Height	98 mm
External dimensions: Width	110.8 mm
External dimensions: Depth	145.5 mm
Weight	0.8 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
