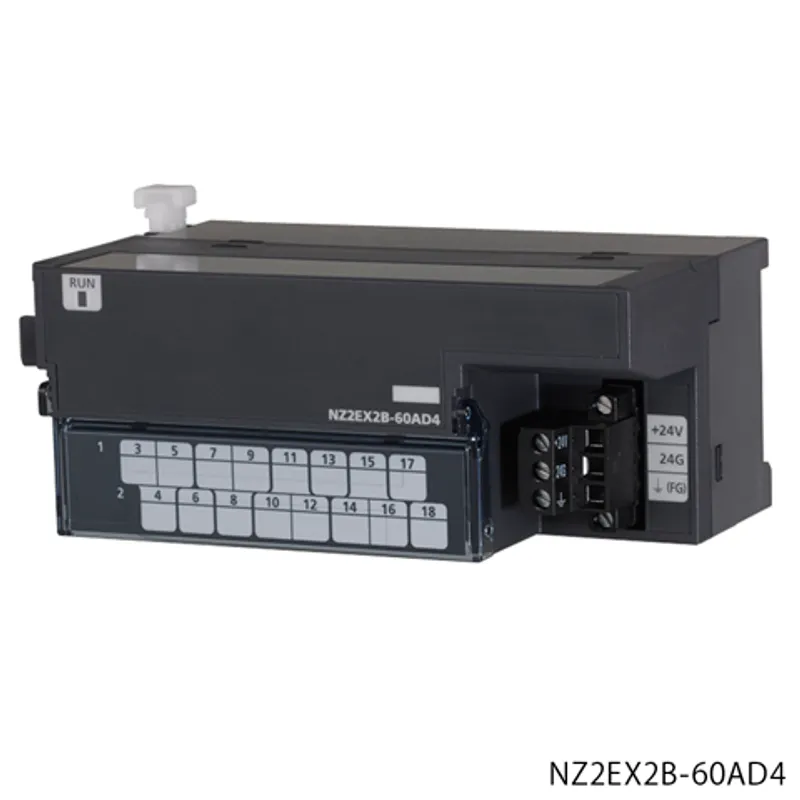

What is the Mitsubishi Electric NZ2EX2B-60AD4?

The Mitsubishi Electric NZ2EX2B-60AD4 is a remote I/O in the MELSEC network modules. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 100 µs/channel, 400 µs/channel, 1 ms/channel. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeAnalog I/O
SubtypeAnalog input (extension)
Outline4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 100 µs/channel, 400 µs/channel, 1 ms/channel

Input specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output-16384...+16383
I/O characteristics, resolution: Input rangeDigital output value (maximum resolution)
I/O characteristics, resolution: Voltage input: 0...5 V0...16000 (0.3125 mV)
I/O characteristics, resolution: Voltage input: 1...5 V0...16000 (0.25 mV)
I/O characteristics, resolution: Voltage input: -10...10 V-16000...16000 (0.625 mV)
I/O characteristics, resolution: Current input: 0...20 mA0...16000 (1.25 µA)
I/O characteristics, resolution: Current input: 4...20 mA0...16000 (1 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚C±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚C±0.2 %
A/D conversion speed100 µs/channel 400 µs/channel 1 ms/channel
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween communication system terminals and all analog inputs: Photocoupler Between power supply system terminals and all analog inputs: Transformer Between input channels: Non-isolation
Dielectric withstand voltageBetween all power supply and communication system terminals and all analog input terminals: 500 V AC for 1 minute
Cyclic transmission: RX/RY points16 points
Cyclic transmission: RWr/RWw points16 points
Module power supply: Voltage24 V DC (20.4...28.8 V DC)
Module power supply: Current90 mA
External power supply: Voltage24 V DC (20.4...28.8 V DC)
External power supply: Current45 mA (inrush current: 22.0 A, 1 ms or lower)
External interfaceExternal power supply part: Terminal block for module power supply and FG (M2.5 screw) I/O part: 18-point two-piece terminal block (M3 screw)
External dimensions: Height50 mm
External dimensions: Width115 mm
External dimensions: Depth68 mm
Weight0.22 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2EX2B-60AD4: frequently asked questions

When can NZ2EX2B-60AD4 be shipped?

NZ2EX2B-60AD4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2EX2B-60AD4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2EX2B-60AD4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EX2B-60AD4, subject to availability and destination.
