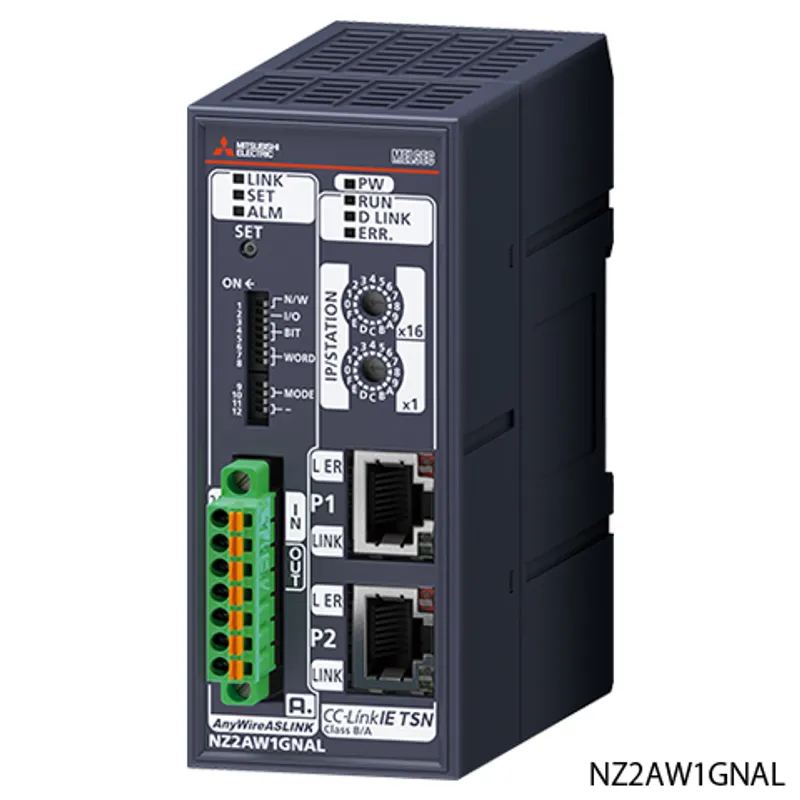

NZ2AW1GNAL Mitsubishi MELSEC network modules Bridge

MPN: NZ2AW1GNAL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2AW1GNAL be shipped?

NZ2AW1GNAL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2AW1GNAL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2AW1GNAL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2AW1GNAL, subject to availability and destination.

The Mitsubishi Electric NZ2AW1GNAL is a bridge in the MELSEC network modules. CC-Link IE TSN-AnyWireASLINK bridge module, Max. remote input: 544 points, max. remote output: 544 points, Powered by Anywire. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge
Type	Bridge
Subtype	AnyWire bridge
Outline	CC-Link IE TSN-AnyWireASLINK bridge module, Max. remote input: 544 points, max. remote output: 544 points, Powered by Anywire

Specifications

CC-Link IE TSN side: Station type	Remote station
CC-Link IE TSN side: Communication speed	1 Gbps/100 Mbps
CC-Link IE TSN side: CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN side: CC-Link IE TSN Protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN side: CC-Link IE TSN Protocol version: CC-Link IE TSN Class A	Protocol version 2.0
CC-Link IE TSN side: Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
CC-Link IE TSN side: Maximum number of link points: Remote input (RX)	544 points
CC-Link IE TSN side: Maximum number of link points: Remote output (RY)	544 points
CC-Link IE TSN side: Maximum number of link points: Remote register (RWw)	544 words
CC-Link IE TSN side: Maximum number of link points: Remote register (RWr)	544 words
CC-Link IE TSN side: Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
AnyWireASLINK side: Transmission clock	27.0 kHz
AnyWireASLINK side: Maximum transmission distance (total length)	200 m
AnyWireASLINK side: Transmission system	DC power supply transmission total frame cyclic system
AnyWireASLINK side: Connection type	Bus topology (multidrop system, T-branch system, tree branch system, star branch system)
AnyWireASLINK side: Transmission protocol	Dedicated protocol (AnyWireASLINK)
AnyWireASLINK side: Error control system	Checksum, double-check system
AnyWireASLINK side: Number of bit data points	1024 points maximum (input: 512 points, output: 512 points)
AnyWireASLINK side: Number of word data points	1024 points maximum (input: 512 words, output: 512 words)
AnyWireASLINK side: RAS function	Disconnected transmission cable location detection function, transmission cable short detection function, module power supply drop detection function
AnyWireASLINK side: AnyWireASLINK transmission cable, 24VDC power cable	• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , temperature rating 70 ˚C or higher) • UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , temperature rating 70 ˚C or higher) • Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , temperature rating 90 ˚C)
AnyWireASLINK side: Power supply for transmission line	Max. 2 A
Module power supply: Voltage	21.6...27.6 V DC (24 V DC, -10...+15 %), ripple 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
Module power supply: Current	0.2 A
External dimensions: Height	102 mm
External dimensions: Width	43 mm
External dimensions: Depth	102.8 mm
Weight	0.2 kg

Ethernet specifications

Transmission specifications: Data transmission speed	1 Gbps/100 Mbps
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	IPv4

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
