Mitsubishi Electric NZ2EHG-T8N

Mitsubishi MELSEC network modules Option

MPN
NZ2EHG-T8N
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

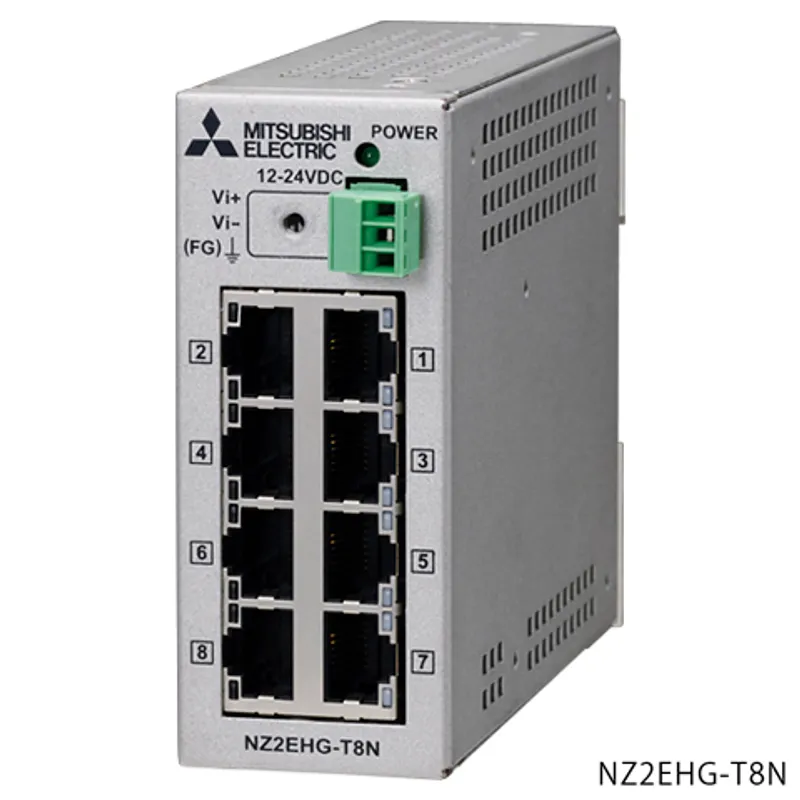

What is the Mitsubishi Electric NZ2EHG-T8N?

The Mitsubishi Electric NZ2EHG-T8N is a option in the MELSEC network modules. 10 Mbps/100 Mbps/1000 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function, automatic power adjustment function Powered by CONTEC. Mitsubishi Electric has announced its discontinuation (2027/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryOption
TypeTwisted-pair cable
SubtypeIndustrial switching hub
Sales status2027/02 To be end of order (Mitsubishi Electric)
Outline10 Mbps/100 Mbps/1000 Mbps, 8 ports, Auto MDI/MDI-X function, auto-negotiation function, automatic power adjustment function Powered by CONTEC

Specifications

Ethernet standardsIEEE802.3/IEEE802.3u /IEEE802.3ab –compliant
Data communication rate10 Mbps/100 Mbps/1000 Mbps (auto-recognition)
Access methodCSMA/CD
Communication methodAll ports: Full/Half duplex (auto-recognition)
TopologyStar topology
Flow controlFull Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure
Number of effective ports8
Switching methodStore and forward
Address table8192 entries
Jumbo frame9.6K bytes
Buffer capacity512K bytes
Aging time300 s maximum
LED indicatorPOWER (Green), LINK/ACT 10M (Yellow), LINK/ACT 100M (Green), LINK/ACT 1000M (Green)
Rated input voltage12...24 V DC ±5 %
FG terminalThe power connector is equipped with FG terminal.
Power consumption0.65 A at 12 V DC, 0.35 A at 24 V DC
External dimensions: Height94 mm
External dimensions: Width39 mm
External dimensions: Depth120 mm
Weight0.36 kg
Installation methodOnto a DIN rail or on the wall

Specifications

Operating ambient temperature0...50 ˚C
Storage ambient temperature-10...60 ˚C
Operating ambient humidity10...90 %RH, non-condensing
Floating dust particlesTolerant of small amounts (non excessive)
Corrosive gasesNone
Vibration resistance: Sweep resistance10 to 57 Hz/ half amplitude 0.15 mm, 57 to 150 Hz/2.0 G 40 minutes each in X, Y, and Z directions (JIS C 60068-2-6-compliant, IEC 60068-2-6-compliant)
Shock resistance15G, sine half-wave pulse for 11ms each in X, Y, and Z directions (JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant)
GroundingGround the FG terminal to the protective ground conductor.
Installation locationInside a control panel

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

NZ2EHG-T8N: frequently asked questions

When can NZ2EHG-T8N be shipped?

NZ2EHG-T8N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2EHG-T8N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2EHG-T8N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2EHG-T8N, subject to availability and destination.
