NZ2AW1C2AL Mitsubishi MELSEC network modules Bridge/repeater

MPN: NZ2AW1C2AL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2AW1C2AL be shipped?

NZ2AW1C2AL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2AW1C2AL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2AW1C2AL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2AW1C2AL, subject to availability and destination.

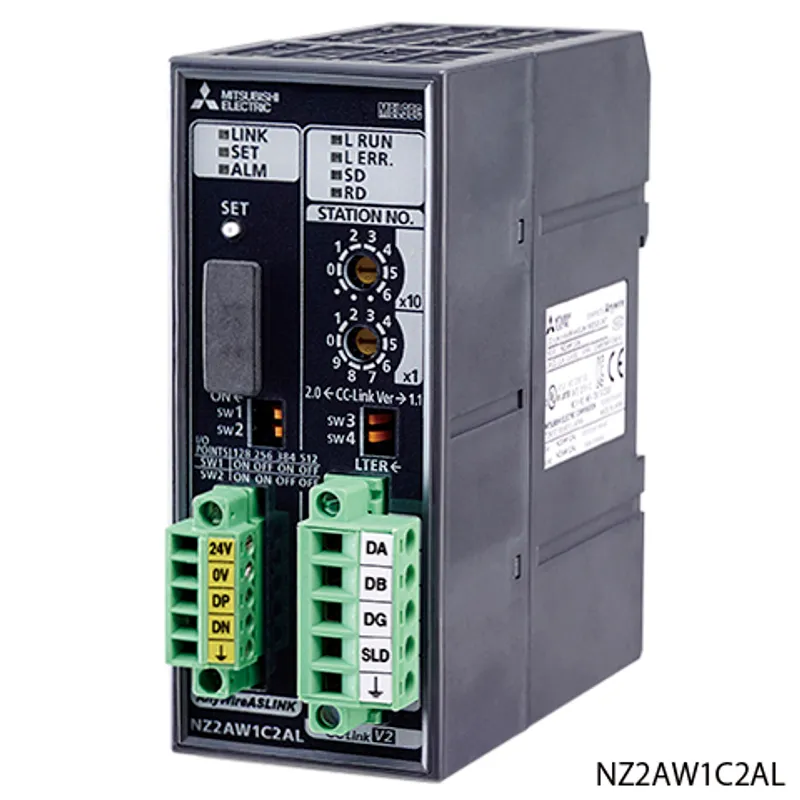

The Mitsubishi Electric NZ2AW1C2AL is a bridge/repeater in the MELSEC network modules. CC-Link-AnyWireASLINK bridge module, Max. remote input: 256 points, max. remote output: 256 points, number of occupied stations: 1/2/3/4 stations, Powered by Anywire. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge/repeater
Type	Bridge
Subtype	AnyWire bridge
Outline	CC-Link-AnyWireASLINK bridge module, Max. remote input: 256 points, max. remote output: 256 points, number of occupied stations: 1/2/3/4 stations, Powered by Anywire

Specifications

CC-Link side: CC-Link station type	Remote device station (Ver. 1 remote device station or Ver. 2 remote device station)
CC-Link side: CC-Link version	Ver. 1.10/Ver. 2.00
CC-Link side: Transmission speed	156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (automatic setting)
CC-Link side: Number of occupied stations	When Ver. 1 remote device station is set: 1 ... 4 stations When Ver. 2 remote device station is set: 4 stations (expanded cyclic setting: 2 times)
CC-Link side: Communication cable	Ver. 1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver. 1.00 compatible) CC-Link dedicated high-performance cable (Ver. 1.00 compatible)
AnyWireASLINK side: Transmission clock	27.0 kHz
AnyWireASLINK side: Maximum transmission distance (total length)	200 m
AnyWireASLINK side: Number of connectable modules	Up to 128 (varies depending on the current consumption of each slave module)
AnyWireASLINK side: Transmission system	DC power supply transmission total frame cyclic system
AnyWireASLINK side: Connection type	Bus topology (multidrop system, T-branch system, tree branch system, star branch system)
AnyWireASLINK side: Transmission protocol	Dedicated protocol (AnyWireASLINK)
AnyWireASLINK side: Error control system	Checksum, double-check system
AnyWireASLINK side: Number of connected I/O points	Up to 512 points (input 256 points, output 256 points)
AnyWireASLINK side: Transmission cable (DP, DN)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm＾2 , 0.75 mm 2 , rated temperature 90 ˚C)
AnyWireASLINK side: Power cable (24V, 0V)	• UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm＾2 , 0.75 mm 2 , rated temperature 90 ˚C)
AnyWireASLINK side: Power supply for transmission line	With 1.25mm 2 cable: Max. 2 A With 0.75mm 2 cable: Max. 1 A
Module power supply: Voltage	21.6...27.6 V DC (24 V DC, -10...+15 %), ripple 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
Module power supply: Current	0.2 A
External dimensions: Height	102 mm
External dimensions: Width	43 mm
External dimensions: Depth	96 mm
Weight	0.2 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	10...95 %RH, non-condensing
Storage ambient humidity	10...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
