NZ2AW1C1BY Mitsubishi MELSEC network modules Bridge/repeater

MPN: NZ2AW1C1BY · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2AW1C1BY (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the NZ2AW1C1BY now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2AW1C1BY, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NZ2AW1C1BY be shipped?

NZ2AW1C1BY is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2AW1C1BY in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2AW1C1BY and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2AW1C1BY, subject to availability and destination.

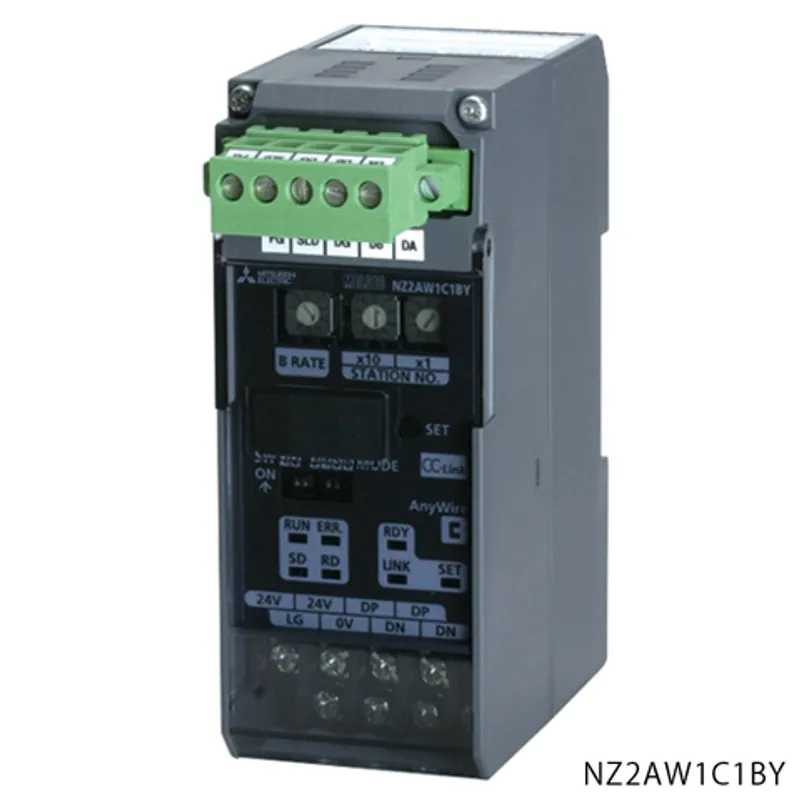

The Mitsubishi Electric NZ2AW1C1BY is a bridge/repeater in the MELSEC network modules. CC-Link - AnyWire Bitty bridge module MAX remote input: 256 points MAX remote output: 256 points Number of occupied stations: 1/2/3/4 stations Powered by Anywire. Mitsubishi Electric has discontinued it (2024/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Bridge/repeater
Type	Bridge
Subtype	AnyWire bridge
Sales status	2024/03 Discontinued (Mitsubishi Electric)
Outline	CC-Link - AnyWire Bitty bridge module MAX remote input: 256 points MAX remote output: 256 points Number of occupied stations: 1/2/3/4 stations Powered by Anywire

Specifications

CC-Link side: CC-Link station type	Remote device station (Ver. 1 remote device station)
CC-Link side: CC-Link version	Ver. 1.10
CC-Link side: Transmission speed	156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
CC-Link side: Number of occupied stations	1 ... 4 stations
CC-Link side: Communication cable	Ver. 1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver. 1.00 compatible) CC-Link dedicated high-performance cable (Ver. 1.00 compatible)
AnyWire Bitty side: Transmission clock	27.0 kHz
AnyWire Bitty side: Maximum transmission distance (total length)	100 m
AnyWire Bitty side: Number of connectable modules	Up to 128 (varies depending on the current consumption of each slave module)
AnyWire Bitty side: Transmission system	DC power supply transmission total frame cyclic system
AnyWire Bitty side: Connection type	Bus topology (multidrop system, T-branch system, tree branch system)
AnyWire Bitty side: Transmission protocol	Dedicated protocol (AnyWire Bitty)
AnyWire Bitty side: Error control system	Double-check system
AnyWire Bitty side: Number of connected I/O points	Up to 512 points (input: 256 points/output: 256 points)
AnyWire Bitty side: Transmission cable (DP, DN)	• UL-compliant general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • UL-compliant general-purpose cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher)
AnyWire Bitty side: Power cable (24V, 0V)	• UL-compliant general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-compliant general-purpose cable (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher)
AnyWire Bitty side: Power supply for transmission line	When using 1.25 mm 2 cable: Up to 2A When using 0.75 mm 2 cable: Up to 1A
Module power supply: Voltage	21.6...27.6 V DC (24 V DC, -10...+15 %), ripple 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
Module power supply: Current	0.2 A (when 128 slave modules are connected and the load current is not included) Transmission line supply current: Up to 2 A
External dimensions: Height	100 mm
External dimensions: Width	40 mm
External dimensions: Depth	66 mm
Weight	0.16 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
