What is the Mitsubishi Electric FX5-4AD-ADP?

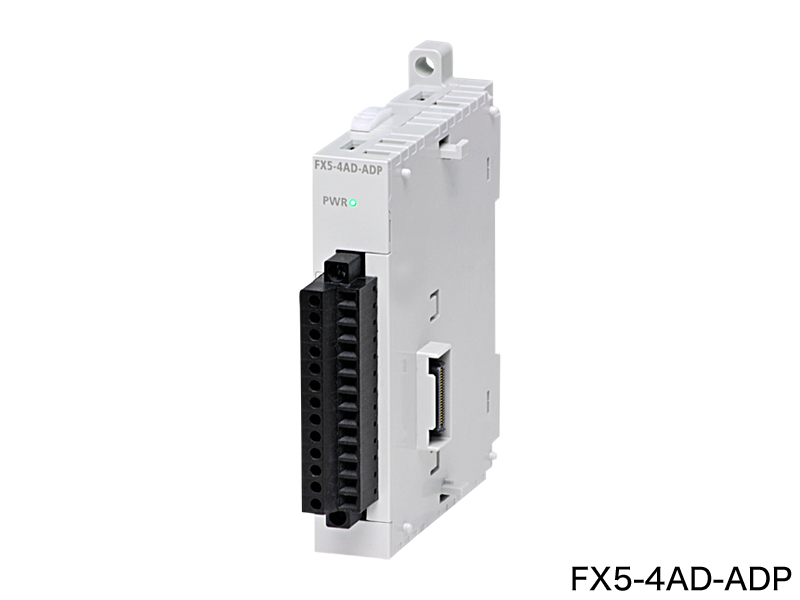

The Mitsubishi Electric FX5-4AD-ADP is a analog input/output module in the MELSEC iQ-F Series. European-type terminal block Analog input: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryAnalog input/output module
OutlineEuropean-type terminal block Analog input: 4 ch

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5S CPU module: From first production FX5UJ CPU module: From first production FX5U CPU module: Ver. 1.010 or later FX5UC CPU module: Ver. 1.010 or later
Applicable engineering tool: GX Works3FX5S CPU module: Ver. 1.080J or later FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.007H or later FX5UC CPU module: Ver. 1.007H or later
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 0.1 kg
Number of analog input points4 points (4 channels)
Conversion speedMaximum 500 μs (The data will be updated at every scan time of the PLC.)
Isolation methodBetween input terminal and PLC: Photocoupler Between input channels: Non-isolation

Voltage/current input specifications

Analog input voltage-10 to +10 V DC (Input resistance 1 MΩ)
Analog input current-20 to +20 mA DC (Input resistance 250 Ω)
Digital output value14-bit binary value
Input characteristics, resolution: Analog input range (Voltage): 0 to 10 VDigital output value: 0 to 16000 Resolution: 625 μV
Input characteristics, resolution: Analog input range (Voltage): 0 to 5 VDigital output value: 0 to 16000 Resolution: 312.5 μV
Input characteristics, resolution: Analog input range (Voltage): 1 to 5 VDigital output value: 0 to 12800 Resolution: 312.5 μV
Input characteristics, resolution: Analog input range (Voltage): -10 to +10 VDigital output value: -8000 to +8000 Resolution: 1250 μV
Input characteristics, resolution: Analog input range (Current): 0 to 20 mADigital output value: 0 to 16000 Resolution: 1.25 μA
Input characteristics, resolution: Analog input range (Current): 4 to 20 mADigital output value: 0 to 12800 Resolution: 1.25 μA
Input characteristics, resolution: Analog input range (Current): -20 to +20 mADigital output value: -8000 to +8000 Resolution: 2.5 μA
Accuracy (accuracy for the full scale of the digital output value)Ambient temperature 25±5℃: within ±0.1% (±16 digit) Ambient temperature 0 to 55℃: within .0.2% (±32 digit) Ambient temperature -20 to 0℃*: within .0.3% (±48 digit) * This specification does not apply to products manufactured before June 2016.
Absolute maximum inputVoltage: ±15 V, Current: ±30 mA

Power supply specifications

Internal power supply (A/D conversion circuit)24 V DC 20 mA Internal electric supply is carried out from 24 V DC power supply of a CPU module.
Internal power supply (Interface)5 V DC 10 mA Internal electric supply is carried out from 5 V DC power supply of a CPU module.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester
