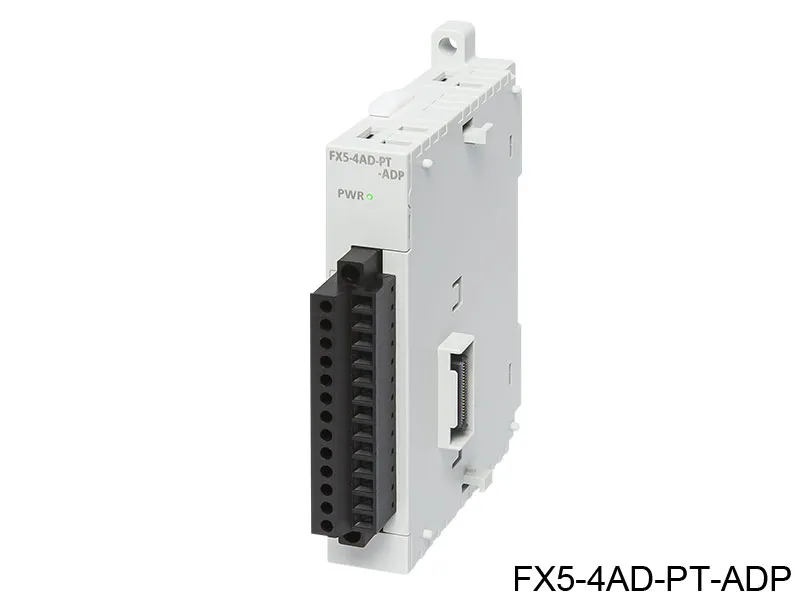

Mitsubishi Electric FX5-4AD-PT-ADP

Mitsubishi MELSEC iQ-F Series Analog input/output module

MPN
FX5-4AD-PT-ADP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-4AD-PT-ADP?

The Mitsubishi Electric FX5-4AD-PT-ADP is a analog input/output module in the MELSEC iQ-F Series. European-type terminal block Resistance temperature detector temperature sensor input: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryAnalog input/output module
OutlineEuropean-type terminal block Resistance temperature detector temperature sensor input: 4 ch

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5S CPU module: From first production FX5UJ CPU module: From first production FX5U CPU module: Ver. 1.040 or later FX5UC CPU module: Ver. 1.040 or later
Applicable engineering tool: GX Works3FX5S CPU module: Ver. 1.080J or later FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.030G or later FX5UC CPU module: Ver. 1.030G or later
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 0.1 kg
Number of analog input points4 points (4 channels)
Usable resistance temperature detector (An usable resistance temperature detector is 3-wire type only.)Pt100 (JIS C 1604-1997, JIS C 1604-2013) Ni100 (DIN 43760 1987)
Digital output value16-bit signed binary
Digital output value: Centigrade (℃): Pt100-2000 to +8500
Digital output value: Centigrade (℃): Ni100-600 to +2500
Digital output value: Fahrenheit (°F): Pt100-3280 to +15620
Digital output value: Fahrenheit (°F): Ni100-760 to +4820
Temperature measuring range: Centigrade (℃): Pt100-200 to +850℃
Temperature measuring range: Centigrade (℃): Ni100-60 to +250℃
Temperature measuring range: Fahrenheit (°F): Pt100-328 to +1562°F
Temperature measuring range: Fahrenheit (°F): Ni100-76 to +482°F
Precision: Ambient temperature 25±5℃: Pt100±0.8℃
Precision: Ambient temperature 25±5℃: Ni100±0.4℃
Precision: Ambient temperature -20 to 55℃: Pt100±2.4℃
Precision: Ambient temperature -20 to 55℃: Ni100±1.2℃
Resolution: Centigrade (℃)0.1℃
Resolution: Fahrenheit (°F)0.1 to 0.2°F
Conversion speedApprox. 85 ms/channel (For details of the conversion speed, refer to Manual)
Isolation methodBetween input terminal and CPU module: Photocoupler Between input channels: Non-isolation

Power supply specifications

Internal power supply (A/D conversion circuit)24 V DC 20 mA Internal electric supply is carried out from 24 V DC power supply of a CPU module.
Internal power supply (Interface)5 V DC 10 mA Internal electric supply is carried out from 5 V DC power supply of a CPU module.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-4AD-PT-ADP: frequently asked questions

When can FX5-4AD-PT-ADP be shipped?

FX5-4AD-PT-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-4AD-PT-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-4AD-PT-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-4AD-PT-ADP, subject to availability and destination.
