What is the Mitsubishi Electric FX5-4DA-ADP?

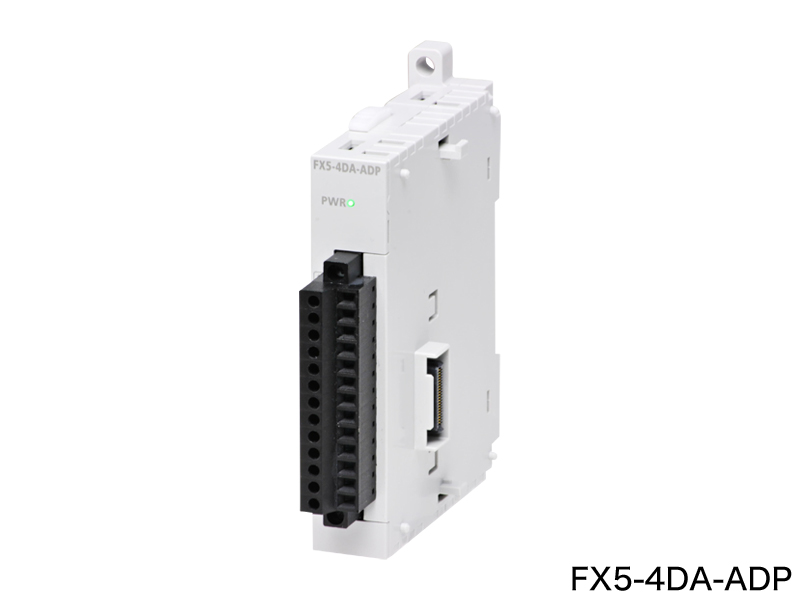

The Mitsubishi Electric FX5-4DA-ADP is a analog input/output module in the MELSEC iQ-F Series. European-type terminal block Analog output: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryAnalog input/output module
OutlineEuropean-type terminal block Analog output: 4 ch

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5S CPU module: From first production FX5UJ CPU module: From first production FX5U CPU module: Ver. 1.010 or later FX5UC CPU module: Ver. 1.010 or later
Applicable engineering tool: GX Works3FX5S CPU module: Ver. 1.080J or later FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.007H or later FX5UC CPU module: Ver. 1.007H or later
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 0.1 kg
Number of analog output points4 points (4 channels)
Digital input14-bit binary value
Analog output voltage-10 to +10 V DC (external load resistance value 1 k to 1 MΩ)
Analog output current0 to 20 mA DC (external load resistance value 0 to 500 Ω)
Conversion speedMaximum 1100 μs (The data will be updated at every scan time of the PLC.)
Isolation methodBetween output terminal and PLC: Photocoupler Between output channels: Non-isolation

Voltage/current output specifications

Output characteristics, resolution: Analog output range (Voltage): 0 to 10 VDigital value: 0 to 16000 Resolution: 625 μV
Output characteristics, resolution: Analog output range (Voltage): 0 to 5 VDigital value: 0 to 16000 Resolution: 312.5 μV
Output characteristics, resolution: Analog output range (Voltage): 1 to 5 VDigital value: 0 to 16000 Resolution: 250 μV
Output characteristics, resolution: Analog output range (Voltage): -10 to +10 VDigital value: -8000 to +8000 Resolution: 1250 μV
Output characteristics, resolution: Analog output range (Current): 0 to 20 mADigital value: 0 to 16000 Resolution: 1.25 μA
Output characteristics, resolution: Analog output range (Current): 4 to 20 mADigital value: 0 to 16000 Resolution: 1 μA
Accuracy (accuracy for the full scale of the analog output value)Ambient temperature 25±5℃: ±0.1% (Voltage ±20 mV, Current ±20 μA) Ambient temperature -20 to 55℃*: ±0.2% (Voltage ±40 mV, Current ±40 μA) * The operating ambient temperature is 0 to 55℃ for products manufactured before June 2016.

Power supply specifications

External power supply (D/A conversion circuit)24 V DC +20%, -15% 160 mA External electric supply is carried out from the power supply connector of an adapter.
Internal power supply (Interface)5 V DC 10 mA Internal electric supply is carried out from 5 V DC power supply of a CPU module.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester
