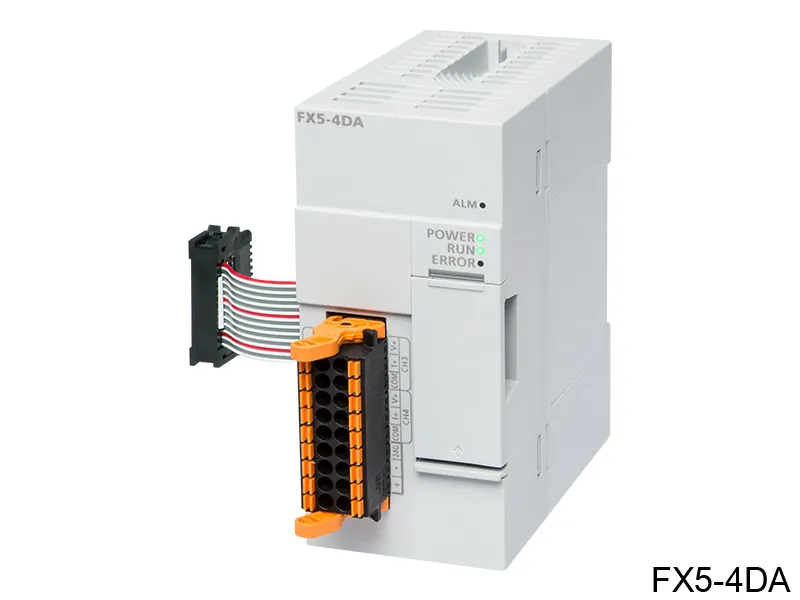

FX5-4DA Mitsubishi MELSEC iQ-F Series Analog input/output module

MPN: FX5-4DA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Analog I/O Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-4DA be shipped?

FX5-4DA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-4DA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-4DA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-4DA, subject to availability and destination.

The Mitsubishi Electric FX5-4DA is a analog input/output module in the MELSEC iQ-F Series. Spring clamp terminal block type Analog output: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Analog input/output module
Outline	Spring clamp terminal block type Analog output: 4 ch

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module: From first production FX5U CPU module: Ver. 1.050 or later FX5UC CPU module: Ver. 1.050 or later FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3	FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.040S or later FX5UC CPU module: Ver. 1.040S or later
Number of occupied I/O points	8 points
Mass (weight)	Approx. 0.2 kg
No. of output points	4 points (4 channels)
Digital input	16-bit signed binary (-32768 to +32767)
Analog output voltage	-10 to +10 V DC (external load resistance value 1 k to 1 MΩ)
Analog output current	0 to 20 mA DC (external load resistance value 0 to 500 Ω)
Conversion speed	80 μs/ch
Isolation method	Between output terminal and PLC: Photocoupler Between output channels: Non-isolation

Voltage/current output specifications

Output characteristics, resolution: Analog output range (Voltage): 0 to 10 V	Digital output value: 0 to 32000 Resolution: 312.5 μV
Output characteristics, resolution: Analog output range (Voltage): 0 to 5 V	Digital output value: 0 to 32000 Resolution: 156.3 μV
Output characteristics, resolution: Analog output range (Voltage): 1 to 5 V	Digital output value: 0 to 32000 Resolution: 125 μV
Output characteristics, resolution: Analog output range (Voltage): -10 to +10 V	Digital output value: -32000 to +32000 Resolution: 312.5 μV
Output characteristics, resolution: Analog output range (Voltage): User range setting	Digital output value: -32000 to +32000 Resolution: 312.5 μV Maximum resolution in the user range setting.
Output characteristics, resolution: Analog output range (Current): 0 to 20 mA	Digital output value: 0 to 32000 Resolution: 625 nA
Output characteristics, resolution: Analog output range (Current): 4 to 20 mA	Digital output value: 0 to 32000 Resolution: 500 nA
Output characteristics, resolution: Analog output range (Current): User range setting	Digital output value: -32000 to +32000 Resolution: 500 nA Maximum resolution in the user range setting.
Accuracy (accuracy for the full scale of the analog output value)	Ambient temperature 25±5℃: Within ±0.1% (voltage ±20 mV, current ±20 μA) Ambient temperature 0 to 55℃: Within ±0.2% (voltage±40 mV, current ±40 μA) Ambient temperature -20 to 0℃: Within ±0.3% (voltage±60 mV, current ±60 μA)

Power supply specifications

External power supply: Power supply voltage	24 V DC +20%, -15%
External power supply: Allowable instantaneous power failure time	Operation continues when the instantaneous power failure is shorter than 5 ms.
External power supply: Current consumption	150 mA
Internal power supply: Power supply voltage	5 V DC
Internal power supply: Current consumption	100 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal	500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-4DA Hardware Manual (IB-0800577)	PDF · 0.26MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 Analog Module User's Manual (SH-081802ENG-K)	PDF · 6.89MB
MELSEC iQ-F FX5 Analog Input Module/Output Module/Multiple Input Module Function Block Reference (SH-081886ENG-E)	PDF · 0.99MB
