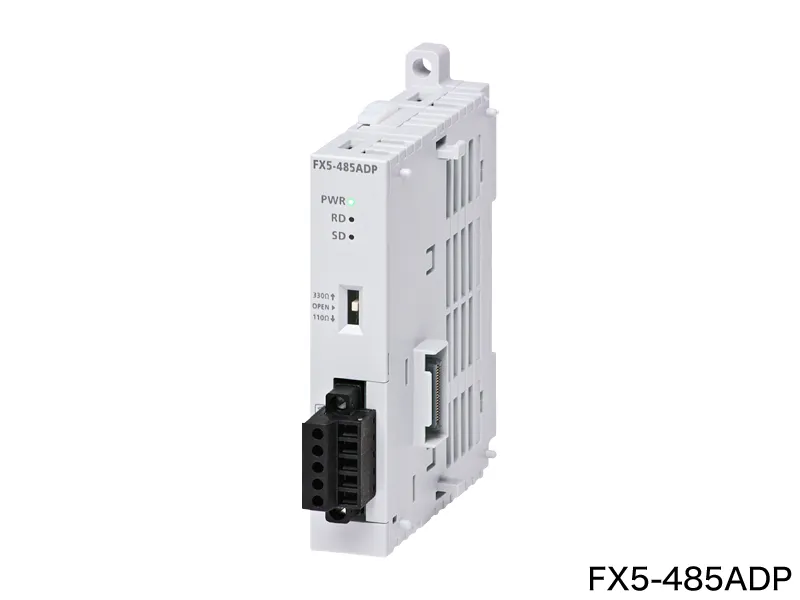

Mitsubishi Electric FX5-485ADP

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-485ADP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-485ADP?

The Mitsubishi Electric FX5-485ADP is a network/communication module in the MELSEC iQ-F Series. European-type terminal block RS-485 communication. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineEuropean-type terminal block RS-485 communication

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5S CPU module: From the first FX5UJ CPU module: From the first FX5U CPU module: From the first FX5UC CPU module: From the first
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 80 g
Communication function: MC protocol: Maximum overall distanceWhen FX5-485ADP is used: 1200 m or less When using built-in RS-485 port or FX5-485-BD: 50 m or less
Communication function: MC protocol: Protocol typeMC protocol 3C/4C frame: There are format 1/format 4/format 5. 1C frame: There are format 1/format 4.
Communication function: MC protocol: Communication methodHalf-duplex, bidirectional communication
Communication function: MC protocol: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: N:N Network: Maximum overall distanceWhen only FX5-485ADP is used in the configuration: 1200 m or less When configuring with FX5-485ADP or FX3U-485ADP: 500 m or less Other than the above configuration: 50 m or less
Communication function: N:N Network: Protocol typeN:N Network
Communication function: N:N Network: Communication methodHalf-duplex, bidirectional communication
Communication function: N:N Network: Baud rate38400 (bps)
Communication function: Non-protocol communication: Maximum overall distance1200 m or less
Communication function: Non-protocol communication: Control procedureNon-protocol communication
Communication function: Non-protocol communication: Communication methodHalf-duplex, bi-directional communication/full-duplex, bi-directional communication
Communication function: Non-protocol communication: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Parallel link: Maximum overall distanceWhen only FX5-485ADP is used in the configuration: 1200 m or less Other than the above configuration: 50 m or less
Communication function: Parallel link: Protocol typeParallel link
Communication function: Parallel link: Communication methodHalf-duplex, bidirectional communication
Communication function: Parallel link: Baud rate115200 (bps)
Communication function: Predefined protocol support: Maximum overall distance1200 m or less
Communication function: Predefined protocol support: Protocol typePredefined protocol support
Communication function: Predefined protocol support: Communication methodHalf-duplex, bidirectional communication
Communication function: Predefined protocol support: Baud rate9600, 19200, 38400, 57600, 115200 bps
Communication function: MODBUS communication function: Transmission distanceWhen only FX5-485ADP is used in the configuration: 1200 m or less Other than the above configuration: 50 m or less
Communication function: MODBUS communication function: Communication protocolRTU
Communication function: MODBUS communication function: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Inverter communication: Maximum overall distance1200 m or less
Communication function: Inverter communication: Protocol typeInverter communication
Communication function: Inverter communication: Control procedureAsynchronous system
Communication function: Inverter communication: Communication methodHalf-duplex, bidirectional communication
Communication function: Inverter communication: Baud rate4800/9600/19200/38400/57600/115200 bps Only FREQROL-F800/A800 supports 57600 bps or more
Transmission standardRS-485 and RS-422 standard
Connection methodEuropean terminal block
InsulationPhoto-coupler isolation (Between communication line and CPU module)
Terminal resistorBuilt-in (OPEN/110 Ω/330 Ω)

Power supply specifications

Rated voltage (Internal power supply)5 V DC 24 V DC
Current consumption (Internal power supply)20 mA/5 V DC 30 mA/24 V DC

General specifications other than the following are the same as the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester
