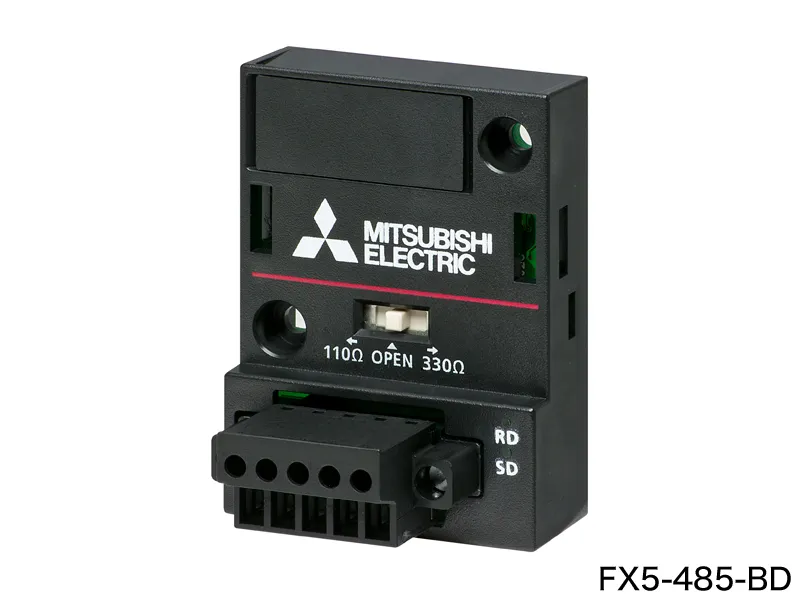

What is the Mitsubishi Electric FX5-485-BD?

The Mitsubishi Electric FX5-485-BD is a network/communication module in the MELSEC iQ-F Series. European-type terminal block RS-485 communication. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineEuropean-type terminal block RS-485 communication

Specifications

Applicable CPU moduleFX5S CPU module: From the first FX5UJ CPU module: From the first FX5U CPU module: From the first
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 20 g
Communication function: MC protocol: Maximum overall distance50 m or less
Communication function: MC protocol: Protocol typeMC protocol 3C/4C frame: There are format 1/format 4/format 5. 1C frame: There are format 1/format 4.
Communication function: MC protocol: Communication methodHalf-duplex, bidirectional communication
Communication function: MC protocol: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: N:N Network: Maximum overall distance50 m or less
Communication function: N:N Network: Protocol typeN:N Network
Communication function: N:N Network: Communication methodHalf-duplex, bidirectional communication
Communication function: N:N Network: Baud rate38400 (bps)
Communication function: Non-protocol communication: Maximum overall distance50 m or less
Communication function: Non-protocol communication: Control procedureNon-protocol communication
Communication function: Non-protocol communication: Communication methodHalf-duplex, bi-directional communication/full-duplex, bi-directional communication
Communication function: Non-protocol communication: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Parallel link: Maximum overall distance50 m or less
Communication function: Parallel link: Protocol typeParallel link
Communication function: Parallel link: Communication methodHalf-duplex, bidirectional communication
Communication function: Parallel link: Baud rate115200 (bps)
Communication function: Predefined protocol support: Maximum overall distance50 m or less
Communication function: Predefined protocol support: Protocol typePredefined protocol support
Communication function: Predefined protocol support: Communication methodHalf-duplex, bidirectional communication
Communication function: Predefined protocol support: Baud rate9600, 19200, 38400, 57600, 115200 bps
Communication function: MODBUS communication function: Transmission distance50 m or less
Communication function: MODBUS communication function: Communication protocolRTU
Communication function: MODBUS communication function: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Inverter communication: Maximum overall distance50 m or less
Communication function: Inverter communication: Protocol typeInverter communication
Communication function: Inverter communication: Control procedureAsynchronous system
Communication function: Inverter communication: Communication methodHalf-duplex, bidirectional communication
Communication function: Inverter communication: Baud rate4800/9600/19200/38400/57600/115200 bps Only FREQROL-F800/A800 supports 57600 bps or more
Transmission standardRS-485 and RS-422 standard
Connection methodEuropean terminal block
InsulationNot insulated (Between communication line and CPU module)
Terminal resistorBuilt-in (OPEN/110 Ω/330 Ω)

Power supply specifications

Rated voltage (Internal power supply)5 V DC
Current consumption (Internal power supply)20 mA

FX5-485-BD: frequently asked questions

When can FX5-485-BD be shipped?

FX5-485-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-485-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-485-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-485-BD, subject to availability and destination.
