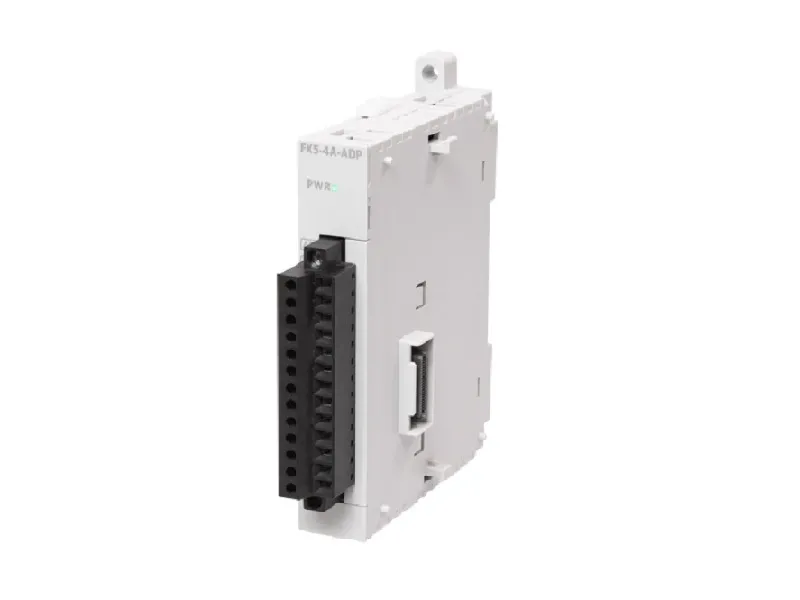

FX5-4A-ADP Mitsubishi MELSEC iQ-F Series Analog input/output module

MPN: FX5-4A-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Analog I/O Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-4A-ADP be shipped?

FX5-4A-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-4A-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-4A-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-4A-ADP, subject to availability and destination.

The Mitsubishi Electric FX5-4A-ADP is a analog input/output module in the MELSEC iQ-F Series. European-type terminal block Analog input: 2 ch Analog output: 2 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Analog input/output module
Outline	European-type terminal block Analog input: 2 ch Analog output: 2 ch

Specifications

Applicable Controller	MX Controller MX-F model
Applicable CPU module	FX5S CPU module: From first production FX5UJ CPU module: Ver. 1.010 or later FX5U CPU module: Ver. 1.240 or later FX5UC CPU module: Ver. 1.240 or later
Applicable engineering tool: GX Works3	FX5S CPU module: Ver. 1.080J or later FX5UJ CPU module: Ver. 1.075D or later FX5U CPU module: Ver. 1.075D or later FX5UC CPU module: Ver. 1.075D or later
Number of occupied I/O points	0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)	Approx. 0.1 kg
Conversion speed	Maximum 2.2 ms (The data will be updated at every scan time of the PLC.)
Isolation method	Between input/output terminal and PLC: Photocoupler Between input/output channels: Non-isolation

Analog Input Specifications

Number of analog input points	2 points (2 channels)
Analog input voltage	-10 to +10 V DC (Input resistance 1 MΩ)
Analog input current	-20 to +20 mA DC (Input resistance 250 Ω)
Digital output	14-bit binary value
Input characteristics, resolution: Analog input range (Voltage): 0 to 10 V	Digital output value: 0 to 16000 Resolution: 625 μV
Input characteristics, resolution: Analog input range (Voltage): 0 to 5 V	Digital output value: 0 to 16000 Resolution: 312.5 μV
Input characteristics, resolution: Analog input range (Voltage): 1 to 5 V	Digital output value: 0 to 12800 Resolution: 312.5 μV
Input characteristics, resolution: Analog input range (Voltage): -10 to +10 V	Digital output value: -8000 to +8000 Resolution: 1250 μV
Input characteristics, resolution: Analog input range (Current): 0 to 20 mA	Digital output value: 0 to 16000 Resolution: 1.25 μA
Input characteristics, resolution: Analog input range (Current): 4 to 20 mA	Digital output value: 0 to 12800 Resolution: 1.25 μA
Input characteristics, resolution: Analog input range (Current): -20 to +20 mA	Digital output value: -8000 to +8000 Resolution: 2.5 μA
Accuracy (accuracy for the full scale of the digital output value)	Ambient temperature 25±5℃: within ±0.1 % (±16 digit) Ambient temperature 0 to 55℃: within ±0.2 % (±32 digit) Ambient temperature -20 to 0℃: within ±0.3 % (±48 digit)
Absolute maximum input	Voltage: ±15 V, Current: ±30 mA

Analog Output Specifications

Number of analog output points	2 points (2 channels)
Digital input	14-bit binary value
Analog output voltage	-10 to +10 V DC (external load resistance value 1 k to 1 MΩ)
Analog output current	0 to 20 mA DC (external load resistance value 0 to 500 Ω)
Output characteristics, resolution: Analog output range (Voltage): 0 to 10 V	Digital value: 0 to 16000 Resolution: 625 μV
Output characteristics, resolution: Analog output range (Voltage): 0 to 5 V	Digital value: 0 to 16000 Resolution: 312.5 μV
Output characteristics, resolution: Analog output range (Voltage): 1 to 5 V	Digital value: 0 to 16000 Resolution: 250 μV
Output characteristics, resolution: Analog output range (Voltage): -10 to +10 V	Digital value: -8000 to +8000 Resolution: 1250 μV
Output characteristics, resolution: Analog output range (Current): 0 to 20 mA	Digital value: 0 to 16000 Resolution: 1.25 μA
Output characteristics, resolution: Analog output range (Current): 4 to 20 mA	Digital value: 0 to 16000 Resolution: 1 μA
Accuracy (accuracy for the full scale of the analog output value)	Ambient temperature 25±5℃: Within ±0.1% (voltage ±20 mV, current ±20 μA) Ambient temperature 0 to 55℃: Within ±0.2% (voltage±40 mV, current ±40 μA) Ambient temperature -20 to 0℃: Within ±0.3% (voltage±60 mV, current ±60 μA)

Power supply specifications

External electric supply (Analog conversion circuit)	24 V DC +20 %/-15 % 100 mA External electric supply is carried out from the power supply connector of an adapter.
Internal power supply (Interface)	5 V DC 10 mA Internal electric supply is carried out from 5 V DC power supply of a CPU module.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module	500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-4A-ADP Hardware Manual (IB-0800661)	PDF · 0.23MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 User's Manual (Application) (JY997D55401-AG)	PDF · 13.14MB
