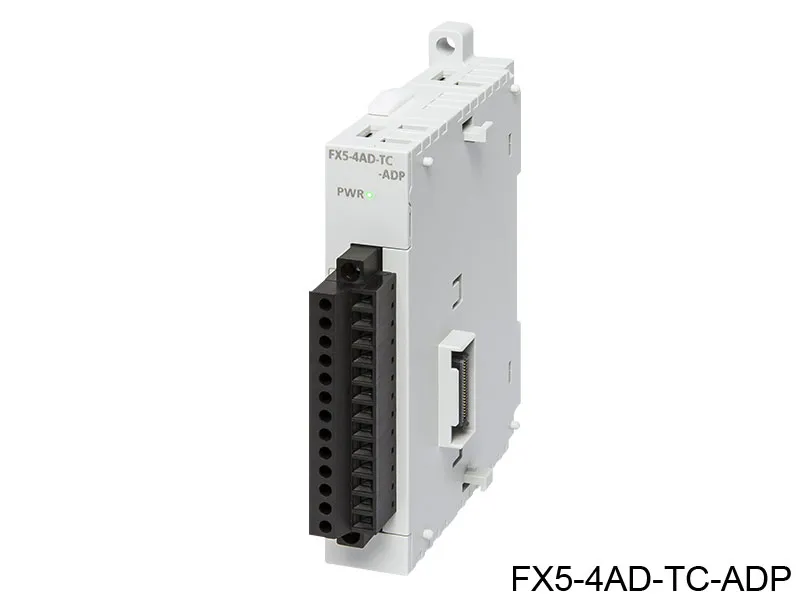

FX5-4AD-TC-ADP Mitsubishi MELSEC iQ-F Series Analog input/output module

MPN: FX5-4AD-TC-ADP · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Analog I/O Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-4AD-TC-ADP be shipped?

FX5-4AD-TC-ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-4AD-TC-ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-4AD-TC-ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-4AD-TC-ADP, subject to availability and destination.

The Mitsubishi Electric FX5-4AD-TC-ADP is a analog input/output module in the MELSEC iQ-F Series. European-type terminal block Thermocouple temperature sensor input: 4 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Analog input/output module
Outline	European-type terminal block Thermocouple temperature sensor input: 4 ch

Specifications

Applicable Controller	MX Controller MX-F model
Applicable CPU module	FX5S CPU module: From first production FX5UJ CPU module: From first production FX5U CPU module: Ver. 1.040 or later FX5UC CPU module: Ver. 1.040 or later
Applicable engineering tool: GX Works3	FX5S CPU module: Ver. 1.080J or later FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.030G or later FX5UC CPU module: Ver. 1.030G or later
Number of occupied I/O points	0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)	Approx. 0.1 kg
Number of analog input points	4 points (4 channels)
Usable thermocouple	K, J, T, B, R, S (JIS C 1602-1995)
Digital output value	16-bit signed binary
Digital output value: Centigrade (℃): K	-2000 to +12000
Digital output value: Centigrade (℃): J	-400 to +7500
Digital output value: Centigrade (℃): T	-2000 to +3500
Digital output value: Centigrade (℃): B	6000 to 17000
Digital output value: Centigrade (℃): R	0 to 16000
Digital output value: Centigrade (℃): S	0 to 16000
Digital output value: Fahrenheit (°F): K	-3280 to +21920
Digital output value: Fahrenheit (°F): J	-400 to +13820
Digital output value: Fahrenheit (°F): T	-3280 to +6620
Digital output value: Fahrenheit (°F): B	11120 to 30920
Digital output value: Fahrenheit (°F): R	320 to 29120
Digital output value: Fahrenheit (°F): S	320 to 29120
Temperature measuring range: Centigrade (℃): K	-200 to +1200℃
Temperature measuring range: Centigrade (℃): J	-40 to +750℃
Temperature measuring range: Centigrade (℃): T	-200 to +350℃
Temperature measuring range: Centigrade (℃): B	600 to 1700℃
Temperature measuring range: Centigrade (℃): R	0 to 1600℃
Temperature measuring range: Centigrade (℃): S	0 to 1600℃
Temperature measuring range: Fahrenheit (°F): K	-328 to +2192°F
Temperature measuring range: Fahrenheit (°F): J	-40 to +1382°F
Temperature measuring range: Fahrenheit (°F): T	-328 to +662°F
Temperature measuring range: Fahrenheit (°F): B	1112 to 3092°F
Temperature measuring range: Fahrenheit (°F): R	32 to 2912°F
Temperature measuring range: Fahrenheit (°F): S	32 to 2912°F
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: K	±3.7℃ (-100 to +1200℃) ±4.9℃ (-150 to -100℃) ±7.2℃ (-200 to -150℃) (The accuracy differs depending on the ranges of the measured temperature in ().)
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: J	±2.8℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: T	±3.1℃ (0 to 350℃) ±4.1℃ (-100 to 0℃) ±5.0℃ (-150 to -100℃) ±6.7℃ (-200 to -150℃) (The accuracy differs depending on the ranges of the measured temperature in ().)
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: B	±3.5℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: R	±3.7℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature 25±5℃: S	±3.7℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: K	±6.5℃ (-100 to +1200℃) ±7.5℃ (-150 to -100℃) ±8.5℃ (-200 to -150℃) (The accuracy differs depending on the ranges of the measured temperature in ().)
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: J	±4.5℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: T	±4.1℃ (0 to 350℃) ±5.1℃ (-100 to 0℃) ±6.0℃ (-150 to -100℃) ±7.7℃ (-200 to -150℃) (The accuracy differs depending on the ranges of the measured temperature in ().)
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: B	±6.5℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: R	±6.5℃
Accuracy (To satisfy the accuracy, it is required to warm up (supply the power) for 45 min.): Ambient temperature -20 to 55℃: S	±6.5℃
Resolution: Centigrade (℃): K, J, T	0.1℃
Resolution: Centigrade (℃): B, R, S	0.1 to 0.3℃
Resolution: Fahrenheit (°F): K, J, T	0.1 to 0.2°F
Resolution: Fahrenheit (°F): B, R, S	0.1 to 0.6°F
Conversion speed	Approx. 85 ms/channel (For details of the conversion speed, refer to Manual)
Isolation method	Between input terminal and CPU module: Photocoupler Between input channels: Non-isolation

Power supply specifications

Internal power supply (A/D conversion circuit)	24 V DC 20 mA Internal electric supply is carried out from 24 V DC power supply of a CPU module.
Internal power supply (Interface)	5 V DC 10 mA Internal electric supply is carried out from 5 V DC power supply of a CPU module.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module	500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-4AD-TC-ADP Hardware Manual (JY997D66701)	PDF · 0.28MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 User's Manual (Application) (JY997D55401-AG)	PDF · 13.14MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
