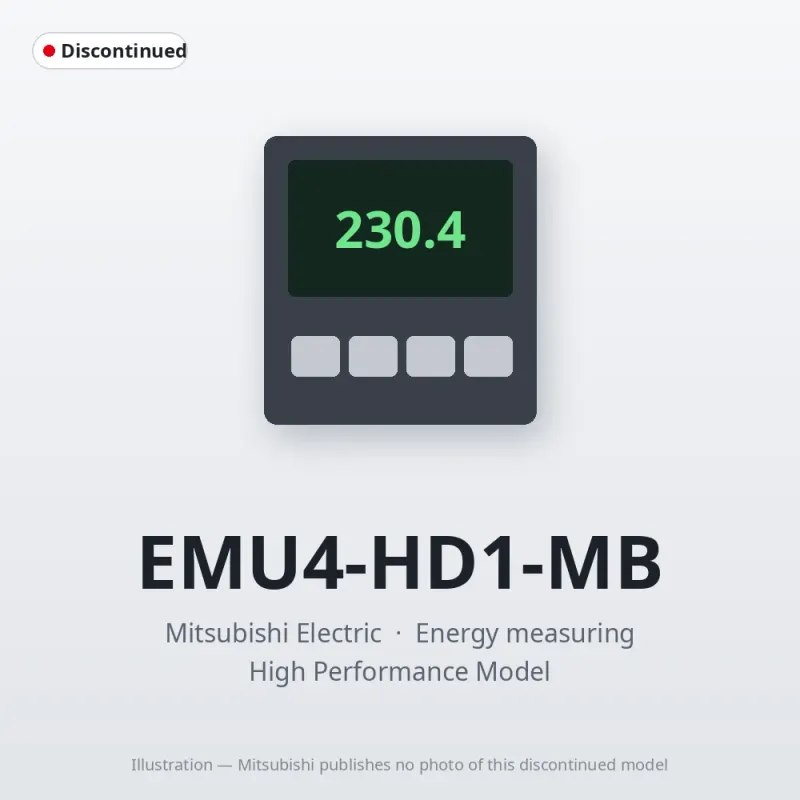

Mitsubishi Electric EMU4-HD1-MB

Mitsubishi Energy measuring EcoMonitorLight

MPN
EMU4-HD1-MB
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original EMU4-HD1-MB (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric EMU4-HD1-MB?

The Mitsubishi Electric EMU4-HD1-MB is a ecoMonitorLight in the Energy measuring. MODBUS RTU (RS-485) communication. Mitsubishi Electric has discontinued it (2024/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesEnergy measuring
CategoryEcoMonitorLight
TypeHigh Performance Model
Sales status2024/03 Discontinued (Mitsubishi Electric)
OutlineMODBUS RTU (RS-485) communication

Specifications

CategoryEnergy Saving Supporting Devices
GroupEnergy Measuring Unit
ModelEcoMonitorLight
UseHigh Performance Model
Model nameEMU4-HD1-MB
TransmissionMODBUS RTU (RS-485) communication
Phase wire systemSingle-phase 2-wire, single-phase 3-wire, 3-phase 3-wire, 3-phase 4-wire common
Instrument ratings: Voltage circuit: Single-phase 2-wire 3-phase 3-wire110V, 220V, 440V AC common
Instrument ratings: Voltage circuit: Single-phase 3-wire110V AC (between wires 1 and 2, and wires 2 and 3), 220V AC (between wires 1 and 3)
Instrument ratings: Voltage circuit: 3-phase 4-wireMinimum: 63.5V/110V AC, Maximum: 277V/480V AC
Instrument ratings: Current circuit50A, 100A, 250A, 400A, 600A (Dedicated split-type current sensor is used. All values indicate primary current values of current sensor.) 5A(Dedicated 5A current sensor is used. Current transformer (CT) is used in two-step configuration together with the 5A current sensor in order to allow a maximum primary current value setting of 6,000A)
Instrument ratings: Frequency50-60Hz (automatic frequency selection)
Auxiliary power rating100V-240V AC (+10%, -15%) 50Hz/60Hz
No. of measurement circuits1 circuit
Consumption VA: Voltage circuitFor each phase: 0.1VA (110V AC), 0.2VA (220V AC), 0.4VA (440V AC)
Consumption VA: Auxiliary power circuit110V AC: 9VA, 220V AC: 10VA
Measurement itemsCurrent, demanded current, voltage, power, demanded power, reactive power, power factor, frequency, electric energy (regenerative, consumption), reactive electric energy, operating time, apparent power, harmonic current, harmonic voltage, pulse count value, periodic electric energy, CO 2 conversion value
Main unit tolerancesCurrent, voltage, power, reactive power, apparent power, frequency: ±1.0% (relative to rated input) Power factor: ±3.0% Electric energy: ±2.0% (in 5 to 100% range of rated values; power factor = 1) Reactive electric energy: ±2.5% (in 10 to 100% range of rated values; power factor = 0) Harmonic current, harmonic voltage: ±2.5%
Data update cycle250 ms *Electric energy and reactive electric energy are always sampled (following short-cycle load fluctuation also).
External input specification: Input signal formatNon-voltage a-contact or open collector 1 input
External output specification: Output signal formatNon-voltage a-contact, 1 output
External output specification: Pulse output specification: Output itemElectric energy
External output specification: Pulse output specification: Output signal typeNon-voltage a-contact, 1 output ・Pulse units (kWh/pulse): 0.001, 0.01, 0.1, 1, 10, 100
Compatible standardCE marking (EMC: EN-61326-1: 2006, Safety: EN-61010-1: 2010), UL: UL61010-1
Weight0.3kg
External dimensions (unit: mm)75 (W) x 90 (H) x 75 (D) (excluding protruding parts)

EMU4-HD1-MB: frequently asked questions

Can I still buy the EMU4-HD1-MB now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the EMU4-HD1-MB, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can EMU4-HD1-MB be shipped?

EMU4-HD1-MB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EMU4-HD1-MB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EMU4-HD1-MB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EMU4-HD1-MB, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric EMU4-CM-TSN – Mitsubishi Energy measuring EcoMonitorLight EcoMonitorPlus
Mitsubishi Electric
EMU4-CM-TSN

Mitsubishi Energy measuring EcoMonitorLight EcoMonitorPlus

Mitsubishi Electric EMU4-CNT-MB – Mitsubishi Energy measuring EcoMonitorPlus
Mitsubishi Electric
EMU4-CNT-MB

Mitsubishi Energy measuring EcoMonitorPlus

Mitsubishi Electric EMU4-D65 – Mitsubishi Energy measuring EcoMonitorPlus
Mitsubishi Electric
EMU4-D65

Mitsubishi Energy measuring EcoMonitorPlus

Mitsubishi Electric EMU4-FD1-MB – Mitsubishi Energy measuring EcoMonitorLight
Mitsubishi Electric
EMU4-FD1-MB

Mitsubishi Energy measuring EcoMonitorLight

Mitsubishi Electric EMU4-HD1A-MB – Mitsubishi Energy measuring EcoMonitorLight
Mitsubishi Electric
EMU4-HD1A-MB

Mitsubishi Energy measuring EcoMonitorLight

Mitsubishi Electric EMU4-HM1-MB – Mitsubishi Energy measuring EcoMonitorPlus
Mitsubishi Electric
EMU4-HM1-MB

Mitsubishi Energy measuring EcoMonitorPlus

Mitsubishi Electric EMU4-LG1-MB – Mitsubishi Energy measuring EcoMonitorPlus
Mitsubishi Electric
EMU4-LG1-MB

Mitsubishi Energy measuring EcoMonitorPlus

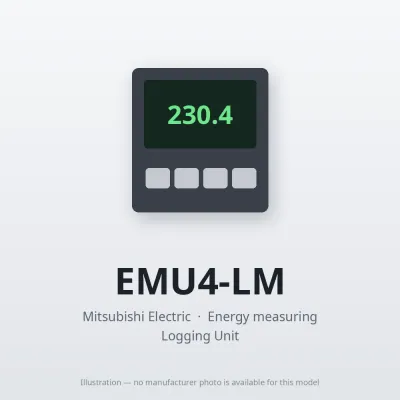

Mitsubishi Electric EMU4-LM – Mitsubishi Energy measuring EcoMonitorLight EcoMonitorPlus
