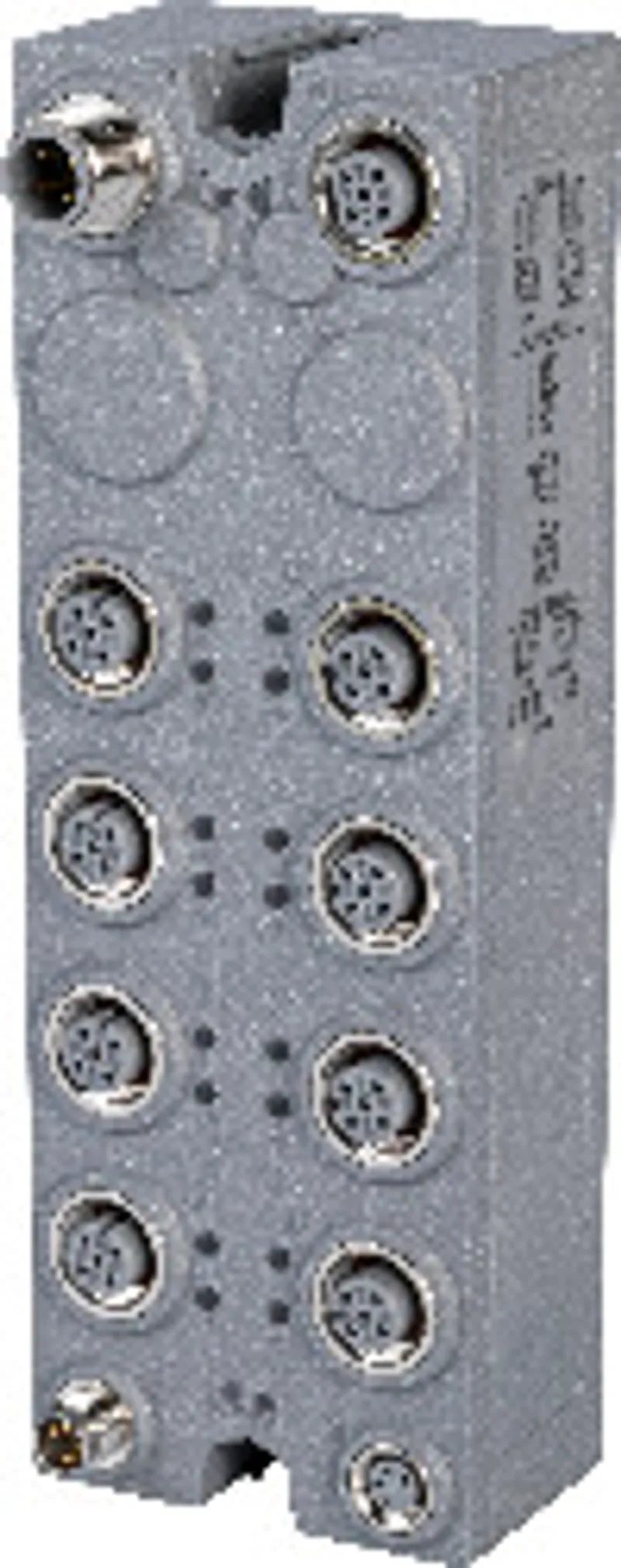

B&R X67DS838A.L12
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | IO-link modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 450 kg |
Shipping & availability
When can X67DS838A.L12 be shipped?
X67DS838A.L12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67DS838A.L12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67DS838A.L12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67DS838A.L12, subject to availability and destination.
8 IO-Link channels (port class A)Each IO-Link channel can be configured as a digital input or output (SIO mode)Additional digital input per IO-Link connection24 VDC and GND for sensor/actuator power supplyNetTime timestamps: IO-Link data The module is an IO-Link master that allows intelligent sensors and actuators to be connected per the IO-Link standard. The module can operate up to 8 IO-Link devices. All IO-Link channels can also be operated in SIO mode and thus used as digital inputs or outputs. The module is also equipped with 8 additional digital inputs that can be used independently of the configuration of the IO-Link channels.
Specifications
Specifications
| I/O module | IO-Link master with 8 IO-Link interfaces |
| B&R ID code | 0x2DB9 |
| Status indicators | IO-Link operating state, bus function, module status |
| Module run/error | Yes, using LED status indicator and software |
| IO-Link operating state | Yes, using LED status indicator and software |
| C/Q status | Yes, using LED status indicator and software |
| I/Q status | Yes, using LED status indicator and software |
| X2X Link | M12, B-coded |
| Inputs | M12, A-coded |
| I/O power supply | M8, 4-pin |
| Cable type | 4-pin sensor cable, unshielded |
| Cable length | Max. 20 m |
| Line capacitance | Max. 3 nF |
| Loop resistance | Max. 6 Ω |
| Internal I/O | 0.8 W |
| X2X Link power supply | 0.8 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| UL | cTÜV SÜDus No. U10 041745 0020 Per UL 61010-2-201 |
| Nominal voltage | 24 VDC |
| Voltage range | 24 VDC ±25% |
| Integrated protective function | Reverse polarity protection |
| Voltage | I/O power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 0.5 A | Max. 0.3 V |
| Power consumption | Max. 12 W per IO-Link interface |
| Short-circuit proof | Yes |
| Switch-off delay | Configurable using software |
| Switch-off duration | Configurable using software |
| COM1 | 4.8 kbaud |
| COM2 | 38.4 kbaud |
| COM3 | 230.4 kbaud |
| Max. connection capacity | 22 nF (cable + IO-Link device) |
| Max. load | 96 Ω / 250 mA |
| Data format | 1 start bit, 8 data bits, 1 parity bit (even), 1 stop bit |
| Bus level | 24 VDC (active), 0 VDC (resting voltage) |
| Variant | Bipolar, positive and negative switching |
| Peak short-circuit current | <1.3 A |
| Residual voltage | <0.7 VDC at nominal current 0.25 A |
| Switching voltage | I/O power supply minus voltage drop for short-circuit protection and semiconductor switch |
| Voltage drop on semiconductor switch | Max. 0.5 VDC at 0.25 A |
| 0 → 1 | <10 µs |
| 1 → 0 | <10 µs |
| Overcurrent threshold | Configurable using software |
| Nominal output current | 0.25 A |
| Total nominal current with actuator power supply | Max. 4 A |
| Output circuit | Sink or source |
| Switching frequency (resistive load) | Max. 500 Hz |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads |
| Hardware | ≤60 µs |
| Input circuit | Sink |
| Input voltage | 24 VDC -15% / +20% |
| Input current at 24 VDC | Typ. 3.6 mA |
| Input resistance | Typ. 6.3 kΩ |
| Low | <5 VDC |
| High | >15 VDC |
| Software | Default 1 ms, configurable between 0 and 25.5 ms |
| Electrical isolation | Bus isolated from IO-Link |
| Any | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
| Operation | 5 to 95% |
| Storage | 5 to 95% |
| Transport | 5 to 95% |
| Width | 53 mm |
| Height | 155 mm |
| Depth | 42 mm |
| Weight | 450 g |
| M8 | Max. 0.4 Nm |
| M12 | Max. 0.6 Nm |
